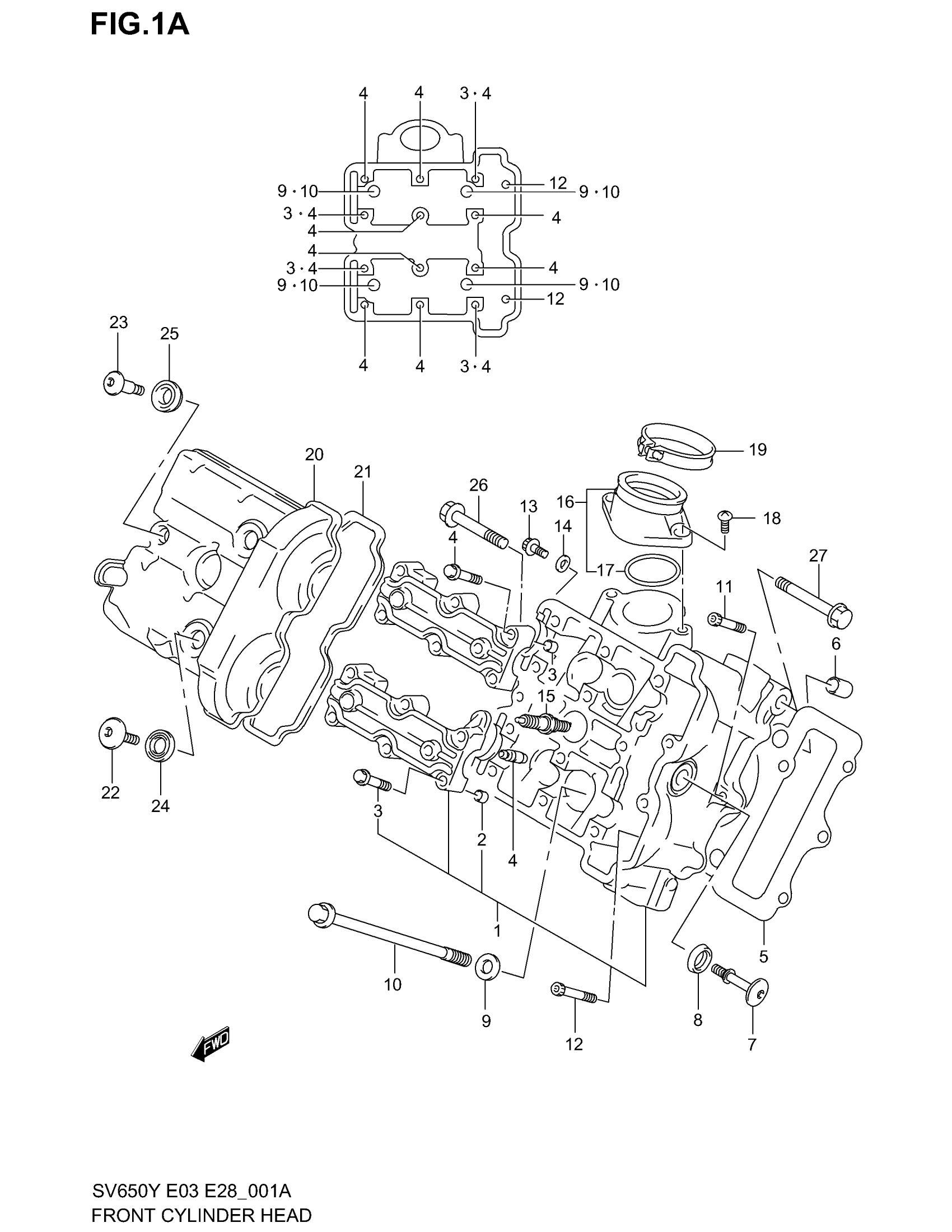

Suzuki SV650 (2002) FRONT CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL X/Y This part replaces 11101-20F00.

11101-20F01

Unavailable

1

HEAD ASSY, CYLINDER FRONT | MODEL K1 This part replaces 11101-20F20.

11101-20F21

Unavailable

1

HEAD ASSY, CYLINDER FRONT | MODEL K2

11101-20F21

Unavailable

1

HEAD ASSY,CYLIN | MODEL X/Y E33 This part replaces 11101-20F10.

11101-20F11

Unavailable

1

HEAD ASSY, CYLINDER FRONT | MODEL K1 E33 This part replaces 11101-20F30.

11101-20F31

Unavailable

1

HEAD ASSY, CYLINDER FRONT | MODEL K2 E33; Includes Item(s) 2 - 4

11101-20F31

Unavailable

2

GUIDE, VALVE

11115-18D72

$34.63

3

PIN (6.2X8X11)

09206-08001

$1.78

4

BOLT (6X39)

09103-06026

$1.98

5

.GASKET,CYLINDER HEAD

11141-20F00

$43.52

6

PIN

04211-13189

$2.19

7

BOLT, CYLINDER HEAD SIDE FACE | MODEL X/Y/K1

11161-33E00

$9.89

8

WASHER, HEAD COVER | MODEL X/Y/K1

11191-13E00

$4.54

9

WASHER (10.5X19X2.0)

09160-10082

$1.61

10

BOLT (10X160)

09103-10272

$15.32

11

BOLT This part replaces 07120-06403.

07120-0640B

$3.37

12

BOLT (6X70)

09103-06103

$2.53

13

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

14

GASKET (5.8X13X1.2)

09168-06023

$2.35

15

SPARK PLUG (NGK,CR8E)

09482-00456

$6.73

15

SPARK PLUG (DENSO,U24ESR-N)

09482-00457

$6.09

15

PLUG SPARK (CR9E) | OPT

09482-00458

$6.47

15

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

$6.09

15

SPARK PLUG (NGK,CR10E) | MODEL X/Y OPT

09482-00460

$6.47

15

SPARK PLUG (DENSO,U31ESR-N) | MODEL X/Y OPT

09482-00461

$12.62

15

SPARK PLUG (NGK,CR7E) | MODEL K1/K2 OPT

09482-00516

$6.47

15

SPARK PLUG (DENSO,U22ESR-N) | MODEL K1/K2 OPT

09482-00515

$5.97

16

PIPE ASSY,INTAK | Includes Item(s) 17 This part replaces 13101-20F00.

13101-20F01

$39.69

17

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$7.01

18

SCREW This part replaces 02122-06163.

02122-0616A

$1.49

19

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

20

COVER, CYLINDER HEAD FRONT | MODEL X/Y

11171-19F00

Unavailable

20

COVER,CYLINDER HEAD FR | MODEL K1/K2

11171-19F20

$153.20

21

.GASKET,CYLINDER HEAD COVER This part replaces 11173-19F00.

11173-19F01

$34.08

22

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

23

BOLT (7X31)

09106-07010

$4.64

24

WASHER

09161-11008

$4.49

25

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

26

BOLT

01550-10807

$5.37

27

BOLT

01550-10807

$5.37
