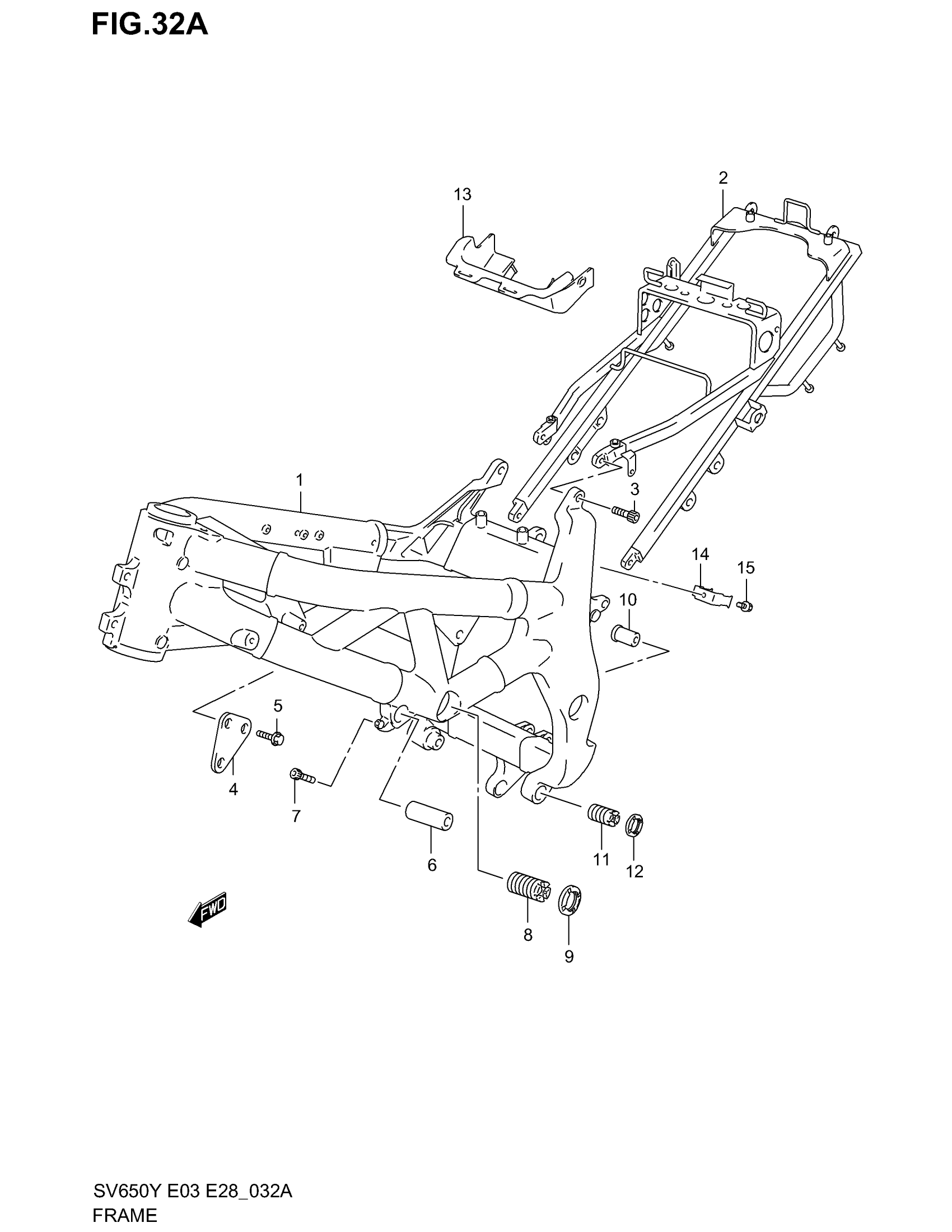

Suzuki SV650 (2002) FRAME (MODEL K2) Diagram

#

Description
Price

1

FRAME (SILVER)

41100-19F50-YD8

Unavailable

2

RAIL, SEAT

41200-19F10

Unavailable

3

BOLT This part replaces 07130-10303.

07130-1030B

$5.37

4

PLATE, MOUNT FRONT RH

41991-19F00

Unavailable

5

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

6

SPACER, HEAD MOUNT

41198-19F00

Unavailable

7

BOLT

07130-08307

$3.89

8

BOLT, CRANKCASE ADJUST

41921-19F00

Unavailable

9

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$18.90

10

SPACER, CRANKCASE REAR UPPER

41941-19F01

$40.33

11

BOLT, CRANKCASE ADJUST

41921-33E11

$49.42

12

NUT, CRANKCASE ADJUST

41922-33E00

$22.52

13

HOLDER, ELECTRIC PART

47411-19F01

Unavailable

14

PLATE,RELAY This part replaces 47413-19F00.

47413-19F01

$6.30

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
