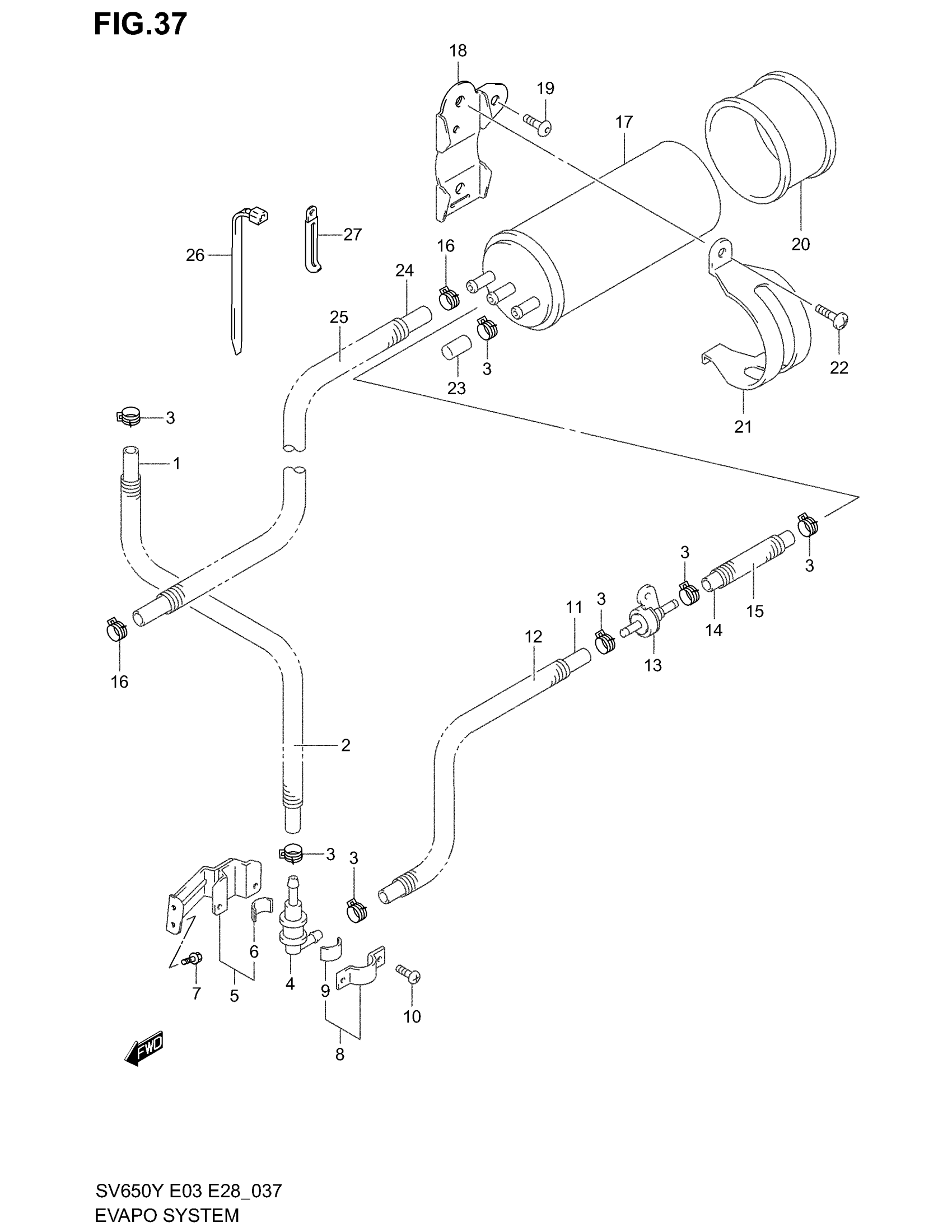

Suzuki SV650 (2002) EVAPO SISTEM (E33) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44435-19F00.

44400-19810

Unavailable

2

PROTECTOR | L:600->120

09351-14152-600

$10.62

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

PLATE, BREATHER VALVE | Includes Item(s) 6

44890-19F00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

11

HOSE, BREATHER VALVE This part replaces 44434-19F00.

44434-29F00

Unavailable

12

PROTECTOR | L:600->190

09351-14152-600

$10.62

13

VALVE, 2 WAY

44240-24F00

$64.68

14

HOSE, VALVE & CANISTER NO.2 | L:600->100

09355-54116-600

$12.06

15

PROTECTOR | L:600->70

09351-14152-600

$10.62

16

CLIP

09401-12404

$2.34

17

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

18

BRACKET, CANISTER

44880-19F00

Unavailable

19

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

20

CUSHION CANISTER

44883-26E00

Unavailable

21

HOLDER, CANISTER

44882-19F00

Unavailable

22

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

23

CAP

09251-07003

$2.53

24

HOSE, CANISTER & CARB

09359-54112-760

Unavailable

25

PROTECTOR | L:2000->720

09351-14152-00B

Unavailable

26

CLAMP

09407-18402

$2.19

27

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.74
