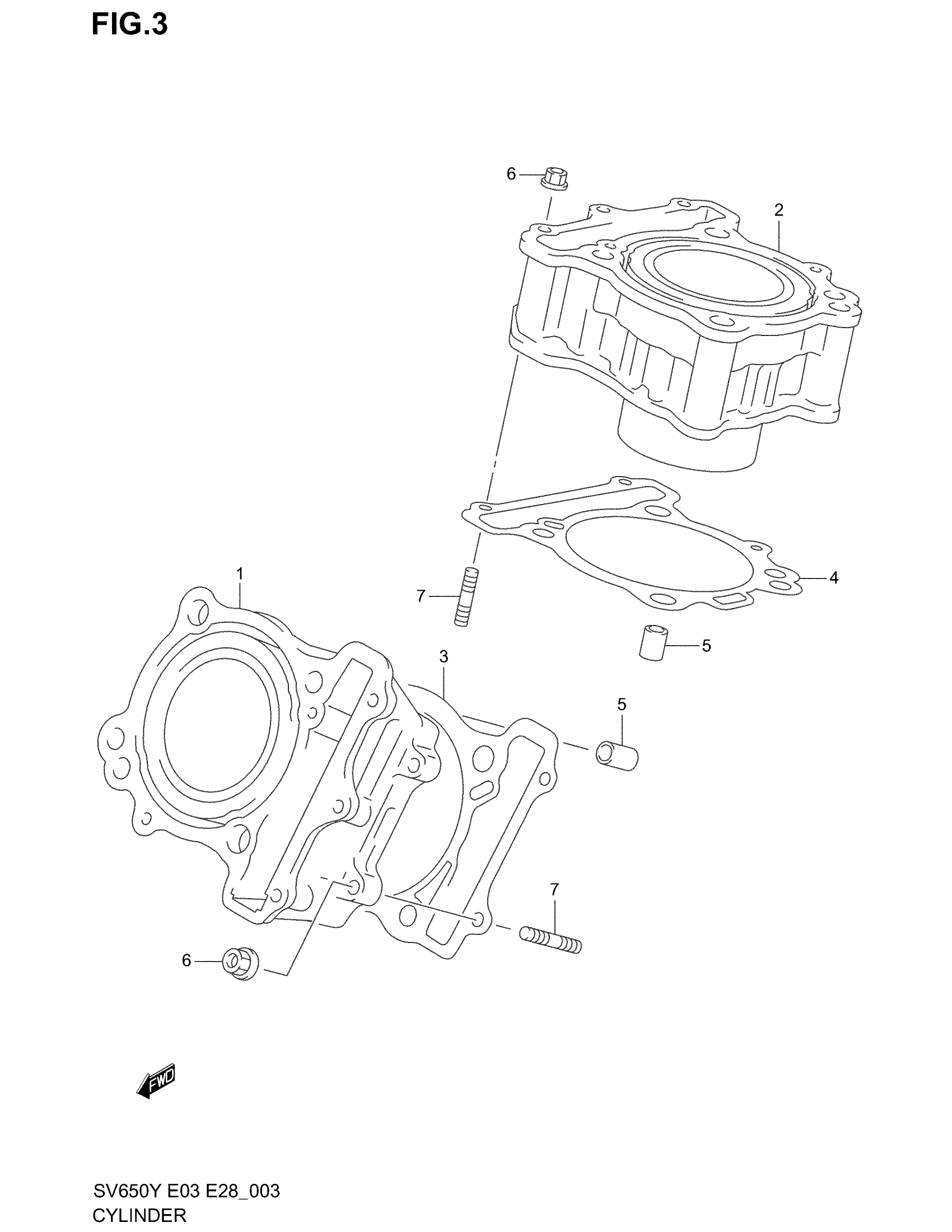

Suzuki SV650 (2002) CYLINDER Diagram

#

Description
Price

1

CYLINDER COMP,F | MODEL X/Y This part replaces 11210-20F00-0F0.

11210-20F01-0F0

Unavailable

1

CYLINDER, FRONT | MODEL K1/K2

11210-20F20-0F0

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X/Y E33 This part replaces 11210-20F10-0F0.

11210-20F11-0F0

Unavailable

1

CYLINDER, FRONT | MODEL K1/K2 E33

11210-20F30-0F0

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL X/Y This part replaces 11220-20F00-0F0.

11220-20F01-0F0

Unavailable

2

CYLINDER, REAR | MODEL K1/K2

11220-20F20-0F0

Unavailable

2

CYLINDER COMP,R | MODEL X/Y E33 This part replaces 11220-20F10-0F0.

11220-20F11-0F0

Unavailable

2

CYLINDER, REAR | MODEL K1/K2 E33

11220-20F30-0F0

Unavailable

3

GASKET, CYLINDER FRONT

11241-19F00

$12.78

4

.GASKET,CYLINDER RR

11242-19F00

$13.29

5

PIN

04211-13189

$2.19

6

NUT This part replaces 08316-10063.

08316-1006B

$2.50

7

STUD BOLT This part replaces 01421-06253.

01421-0625A

$1.99
