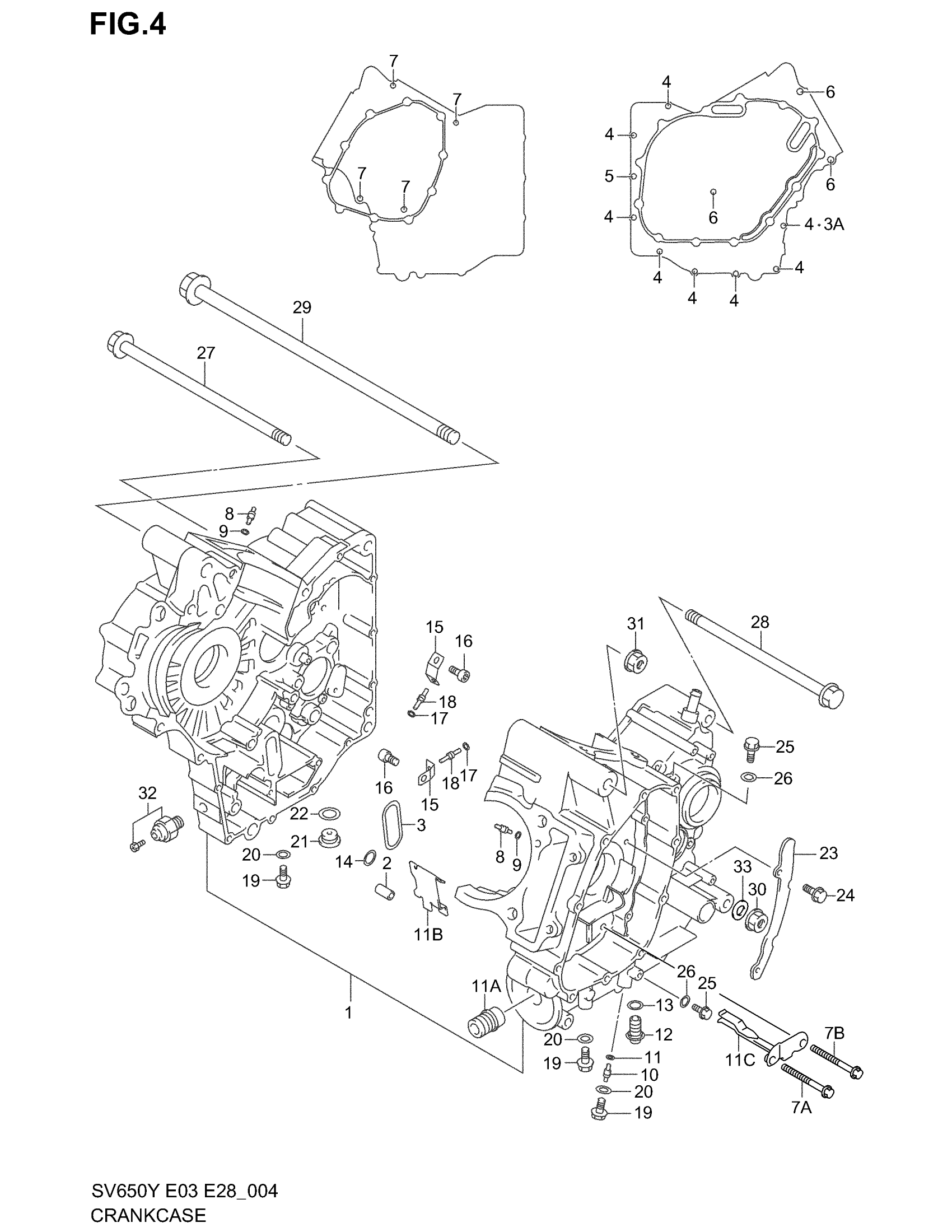

Suzuki SV650 (2002) CRANKCASE (MODEL X/Y) Diagram

#

Description
Price

1

CRANKCASE SET | ~E.NO.111682 *SEE NOTE This part replaces 11301-20830.

11301-20835

Unavailable

1

CRANKCASE SET | E.NO.111683~119504 *SEE NOTE This part replaces 11301-20831.

11301-20835

Unavailable

1

CRANKCASE SET | E.NO.119505~ *SEE NOTE

11301-20835

Unavailable

1

CRANKCASE SET | MODEL X/Y E33 *SEE NOTE ~E.NO.119504; Includes Item(s) 2 - 11C This part replaces 11301-20840.

11301-20835

Unavailable

2

PIN (11X20)

09206-11017

$6.30

3

O RING, CRANKCASE

11315-19F00

$18.67

3A

GASKET (5.8X13X1.2) | E.NO.111683~

09168-06023

$2.35

4

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

5

BOLT

01547-06507

$2.41

6

BOLT This part replaces 07120-08553.

07120-0855B

Unavailable

7

BOLT | ~E.NO.119504 This part replaces 07120-08803.

07120-0880B

$5.37

7

BOLT | E.NO.119505~ This part replaces 07120-08803.

07120-0880B

$5.37

7A

BOLT (8X90) | E.NO.119505~

11322-20F00

Unavailable

7B

BOLT (8X95) | E.NO.119505~

09103-08066

$3.93

8

JET, OIL GALLERY CYLINDER

09493-28010

$16.57

9

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

10

JET, OIL GALLERY MISSION

09493-28010

$16.57

11

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

11A

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

11B

PLATE, OIL | ~E.NO.119504

11391-20F10

Unavailable

11C

PLATE, OIL | E.NO.119505~

11391-20F20

Unavailable

12

PLUG (12X20)

09247-12106

$2.73

13

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

14

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

15

PLATE,PISTON COOLING JET

16438-19F00

Unavailable

16

BOLT (6X12)

09106-06075

$2.48

17

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

18

JET (130)

09493-26007

Unavailable

19

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

20

GASKET

09168-08029

$2.32

21

PLUG

09248-16012

$4.64

22

GASKET (16X22X2)

09168-16002

$1.91

23

PLATE,OIL SEPARATOR

11323-19F00

Unavailable

24

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

25

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

26

GASKET (5.8X13X1.2)

09168-06023

$2.35

27

BOLT (10X260)

09103-10226

$16.75

28

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

29

BOLT (12X310)

09103-12054

$25.67

30

NUT | ~E.NO.124508

08319-31107

$2.73

30

NUT, REAR SWGARM BRACKET | E.NO.124509~ This part replaces 09159-10058.

09159-10115

$3.55

31

NUT This part replaces 08319-31128.

08319-3112A

$3.76

32

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$25.13

33

WASHER (10.5X22X2.3) | E.NO.124509~ This part replaces 09160-10060.

09160-10039

$2.26
