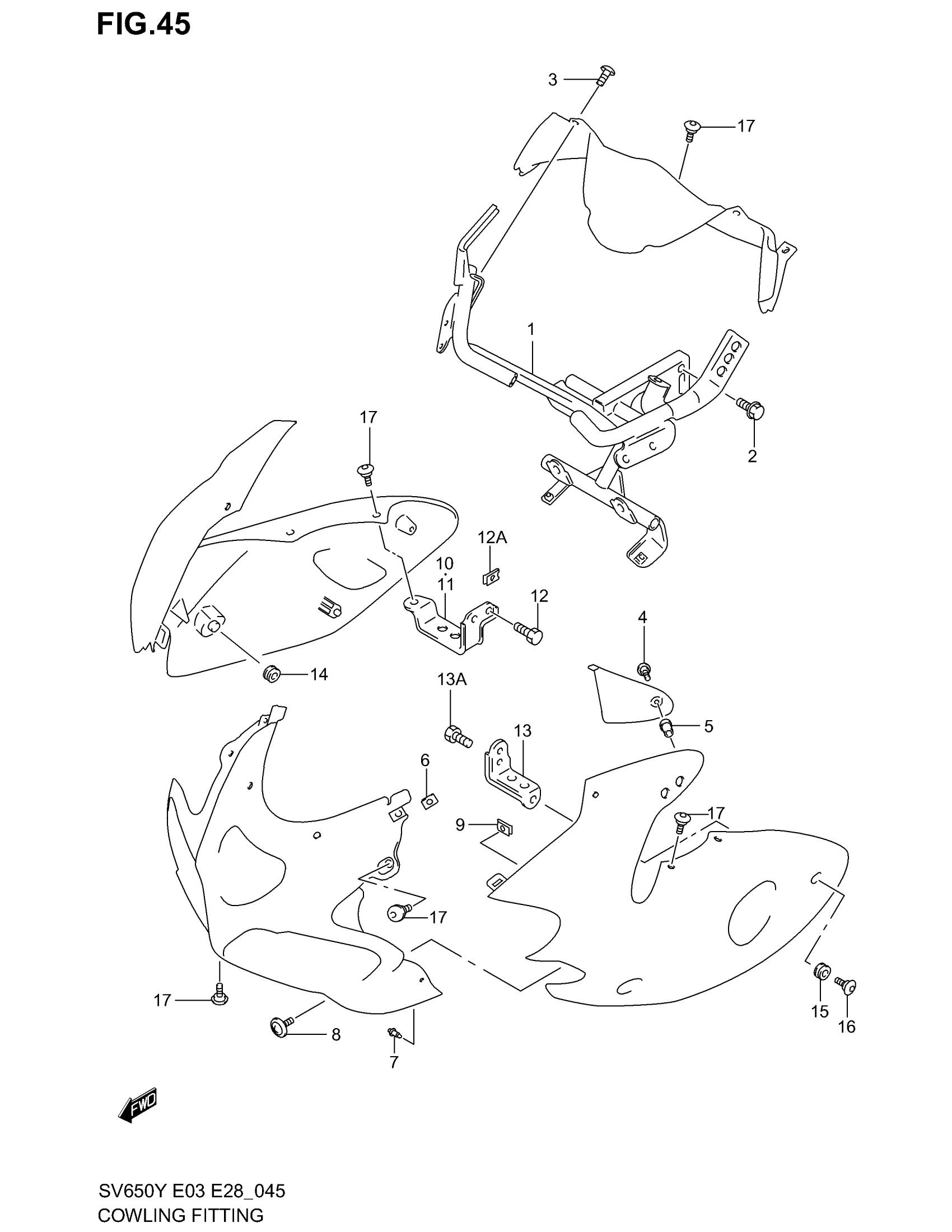

Suzuki SV650 (2002) COWLING INSTALATION PARTS (SV650SX/SY/SK1/SK2) Diagram

#

Description
Price

1

BRACE, COWLING | MODEL X/Y/K1 This part replaces 94510-19F00.

94510-19F02

$361.90

1

BRACE, COWLING | MODEL K2

94510-19F02

$361.90

2

BOLT This part replaces 01550-08303.

01550-0830A

$3.04

3

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

4

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

5

NUT

09159-05019

$7.14

6

NUT COWL

94484-24F00

$4.03

7

CLIP (BLACK)

09409-06314-5PK

$2.78

8

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

9

NUT

09148-05038

$1.97

10

BRACKET, SIDE UPPER RH | MODEL X/Y

94521-19F00

Unavailable

10

BRACKET, SIDE UPPER RH | MODEL K1/K2

94521-19F10

Unavailable

11

BRACKET, SIDE UPPER LH | MODEL X/Y

94531-19F00

Unavailable

11

BRACKET, SIDE UPPER LH | MODEL K1/K2

94531-19F10

Unavailable

12

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

12A

NUT | MODEL K1

53141-19A00

$4.34

13

BRACKET, SIDE REAR LH | MODEL X/Y/K1 This part replaces 94541-19F00.

94541-19F01

$16.22

13

BRACKET, SIDE REAR LH | MODEL K2

94541-19F01

$16.22

13A

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

14

CUSHION (8x26x7)

09320-08018

$3.04

15

CUSHION

09320-09016

$1.97

16

SCREW This part replaces 09139-06087.

09139-06126

$4.04

17

SCREW (M5X16)

09139-05054

$4.24
