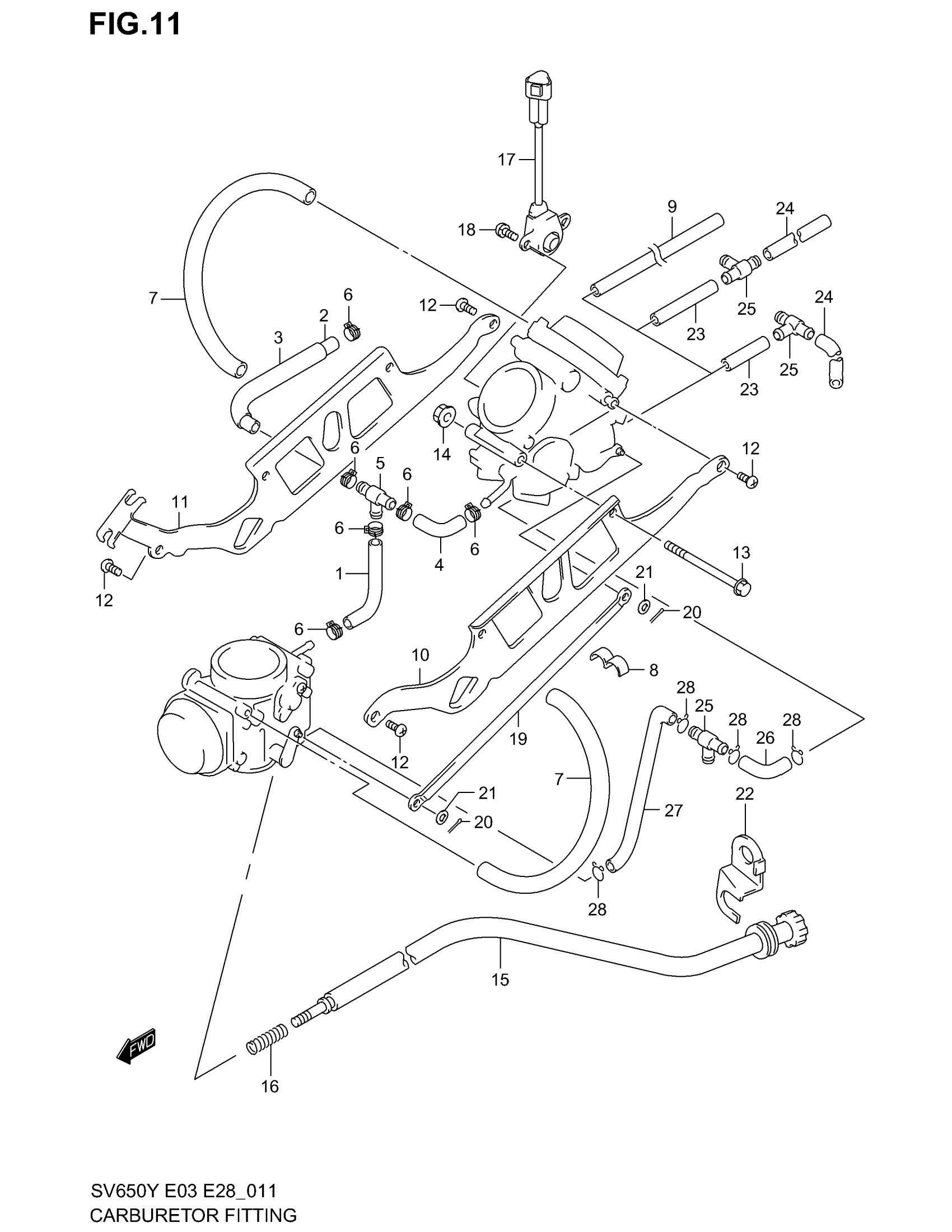

Suzuki SV650 (2002) CARBURETOR FITTINGS Diagram

#

Description
Price

1

HOSE This part replaces 13684-48B10.

13684-48B11

$15.96

2

HOSE (5.3X10.5X125) | MODEL X

13684-19F00

Unavailable

2

HOSE(5.3X10.5X1 | MODEL Y/K1/K2 This part replaces 13684-19F30.

13684-19F31

$10.32

3

HOSE (11X15X90) | MODEL X

13684-19F10

Unavailable

3

HOSE(11X15X70) | MODEL Y/K1/K2 This part replaces 13684-19F40.

13684-19F41

$11.77

4

HOSE(5.3X10.5) This part replaces 13684-19F20.

13684-19F21

$8.42

5

.NIPPLE

13685-48B00

$12.15

6

CLIP

13671-19F00

$5.13

7

HOSE(7X11X250) This part replaces 13686-19F00.

13686-19F01

$12.80

8

CLIP

13671-19F10

Unavailable

9

.HOSE | E3,E28 L:600->175 This part replaces 09352-50903-600.

09352-50006-600

$7.48

10

PLATE

13482-20F00

Unavailable

11

PLATE

13447-20F00

Unavailable

12

SCREW

13602-05109

$3.62

13

BOLT

13612-19F00

Unavailable

14

NUT

13324-19F00

Unavailable

15

ADJUST SCREW ASSY

13267-19F00

Unavailable

16

SPRING

13271-33C00

$6.03

17

SENSOR ASSY This part replaces 13580-19F00.

13580-19F01

$106.38

18

SCREW

13602-19B50

$3.43

19

LEVER ASSY

13553-19F00

Unavailable

20

PIN

13563-19F00

Unavailable

21

WASHER

13615-45010

$3.25

22

PLATE, IDLE ADJUST

13279-19F00

Unavailable

23

NO DESCRIPTION AVAILABLE | E33 This part replaces 13683-10D20.

13683-42E10

Unavailable

23

NO DESCRIPTION AVAILABLE | E33 This part replaces 13684-20F30.

13683-42E10

Unavailable

24

HOSE (5X9X600) | E33 L:600->125

09352-50901-600

$8.06

25

.NIPPLE | E33

13685-48B00

$12.15

26

HOSE(5.3X10.5) | E33 This part replaces 13684-19F20.

13684-19F21

$8.42

27

HOSE (5.3X10.5) | E33

13687-20F40

Unavailable

28

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49
