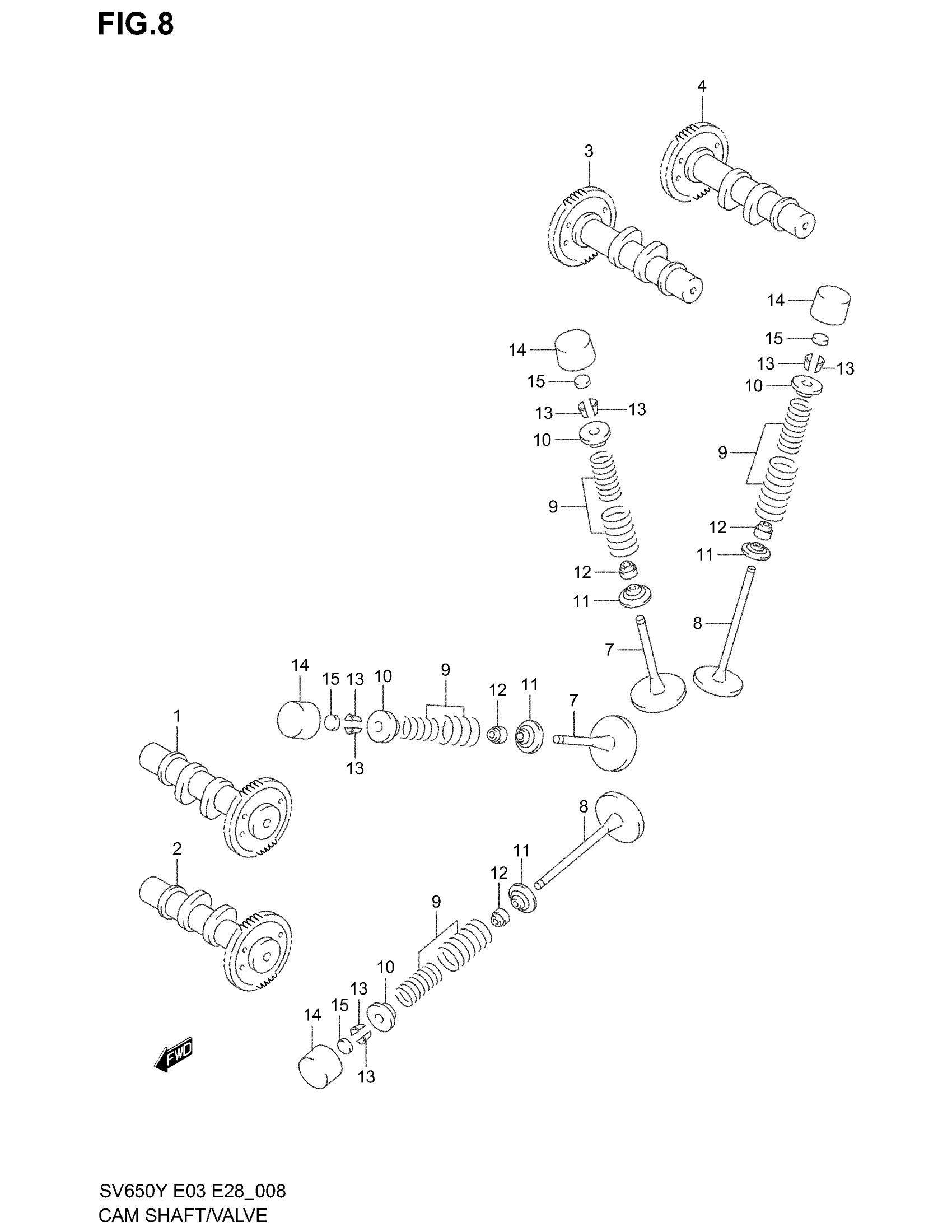

Suzuki SV650 (2002) CAM SHAFT / VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE FRONT

12710-20F00

Unavailable

2

CAM SHAFT, EXHAUST FRONT

12720-20F00

Unavailable

3

CAM SHAFT, INTAKE REAR

12730-20F00

Unavailable

4

CAM SHAFT, EXHAUST REAR

12740-20F00

Unavailable

5

SHIM SET, TAPPET | OPT NOT SHOWN; Includes Item(s) 6 This part replaces 12800-05820.

12800-05830

$1,211.58

6

CASE, TAPPET SHIM

99000-69491

Unavailable

7

VALVE, INTAKE

12911-46E00

$76.12

8

VALVE,EXHAUST

12912-20F00

$51.87

9

SPRING SET, VALVE

12920-33E10

$16.65

10

RETAINER, VALVE SPRING

12931-33E10

$19.23

11

SEAT,VALVE SPRING

12933-39E00

$8.60

12

OIL SEAL (4.5X10X8)

09289-04002

$6.49

13

COTTER, VALVE

12932-17E50

$2.35

14

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

15

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

15

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

15

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

15

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

15

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

15

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

15

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

15

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

15

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

15

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

15

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

15

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

15

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

15

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

15

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

15

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

15

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

15

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

15

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

15

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

15

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83
