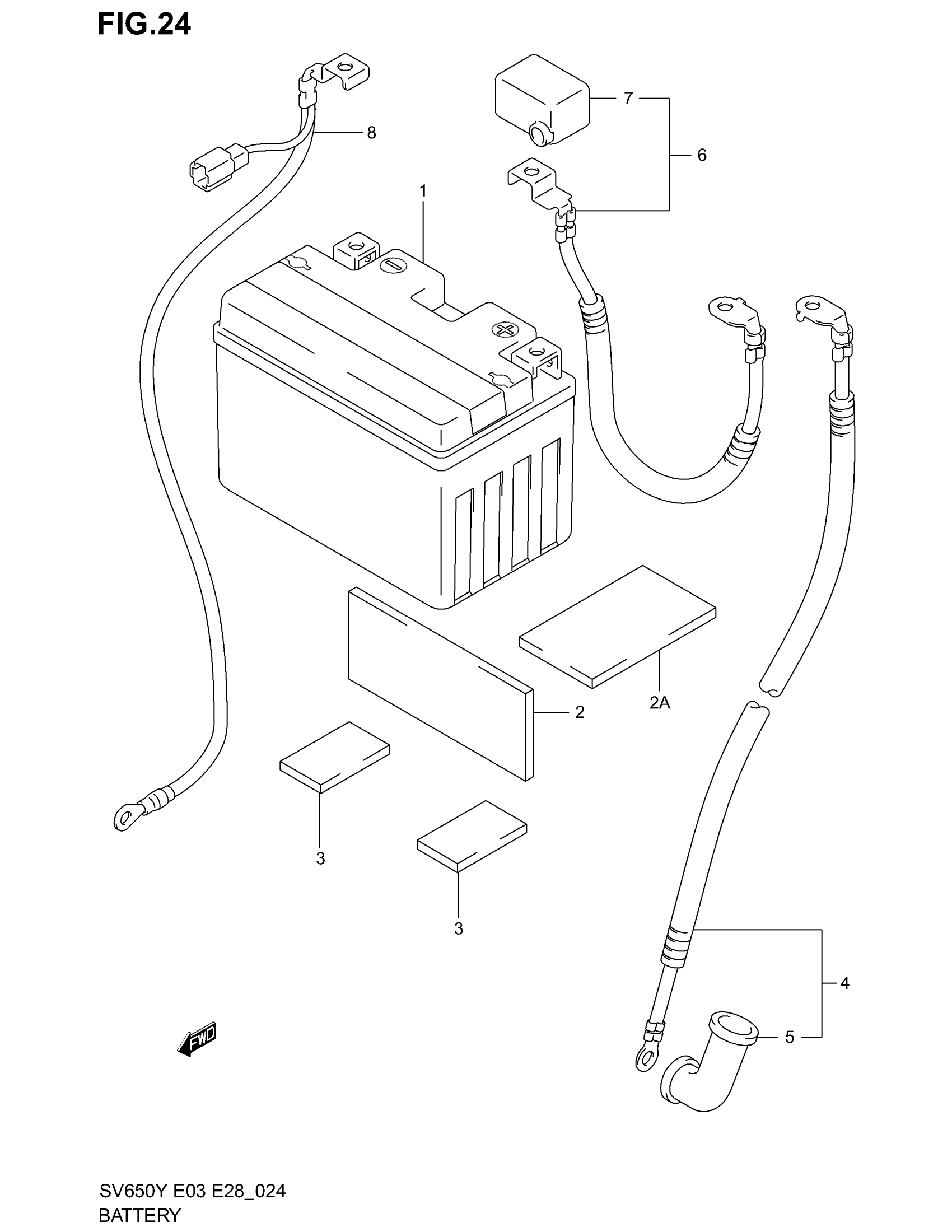

Suzuki SV650 (2002) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (FT12A-BS,12V10AH) | MODEL X/Y/K1 This part replaces 33610-02F00.

33610-14G11

$120.22

1

BATTERY ASSY (FT12A-BS,12V10AH) | MODEL K2 This part replaces 33610-02F01.

33610-14G11

$120.22

2

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (115X50)

33651-37000

$4.48

2A

PROTECTOR (40X85X5)

33652-19F00

$4.37

3

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

33651-37000

$4.48

4

WIRE, STARTER MOTOR LEAD | MODEL X/Y/K1

33810-19F00

Unavailable

4

WIRE, STARTER MOTOR LEAD | MODEL K2; Includes Item(s) 5

33810-19F10

Unavailable

5

CAP, STARTER MOTOR LEAD

31861-48B10

$6.55

6

WIRE, BATTERY (+) LEAD | Includes Item(s) 7

33820-19F00

Unavailable

7

CAP, BATTERY (+)

33624-16E00

$6.00

8

WIRE, BATTERY (-) LEAD | MODEL X/Y/K1

33860-19F00

Unavailable

8

WIRE, BATTERY (-) LEAD | MODEL K2 This part replaces 33860-19F10.

33860-19F00

Unavailable
