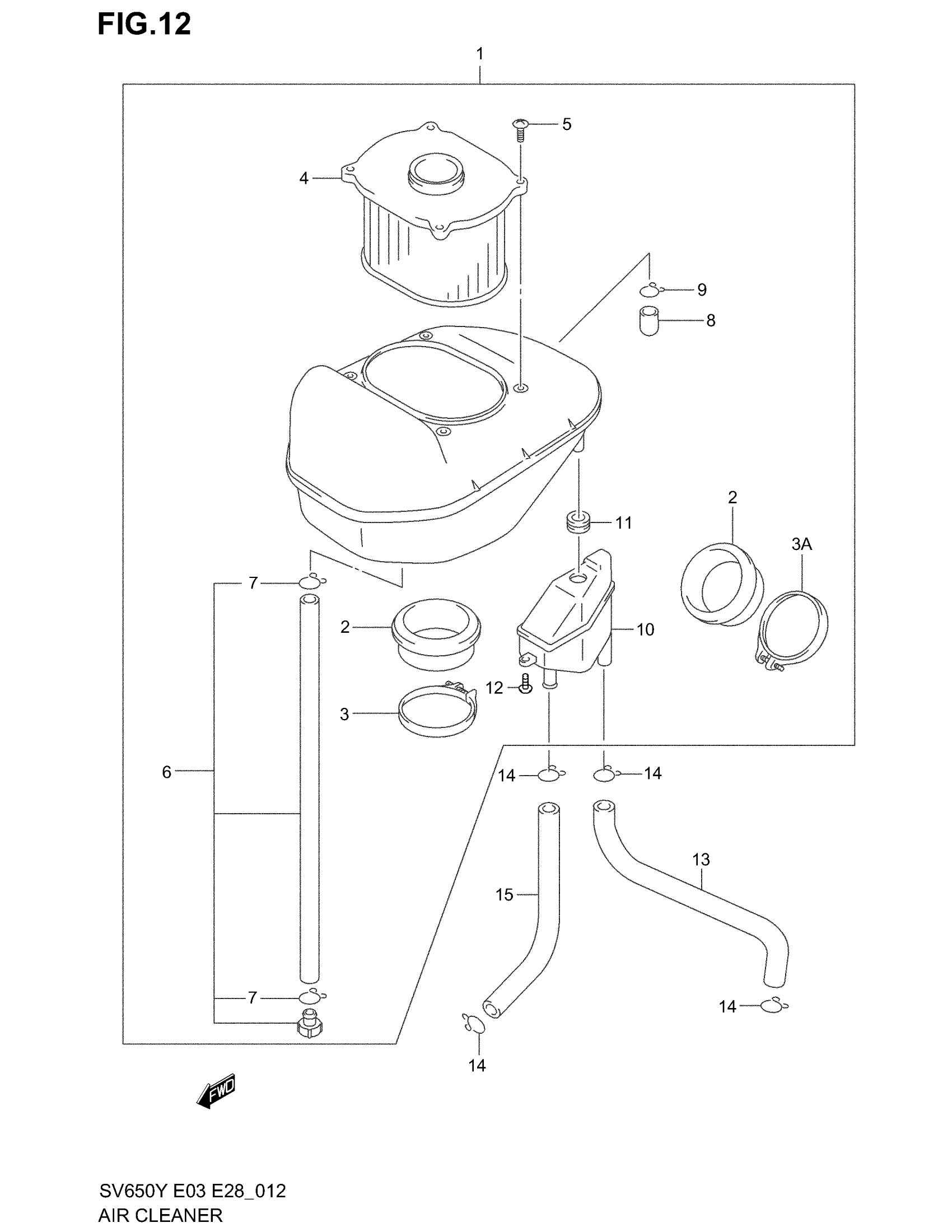

Suzuki SV650 (2002) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | ~E.NO.141364 This part replaces 13700-20F00.

13700-20F01

Unavailable

1

CLEANER ASSY, AIR | E33 This part replaces 13700-20F10.

13700-20F01

Unavailable

1

CLEANER ASSY, AIR | E.NO.141365~

13700-20F01

Unavailable

1

CLEANER ASSY, AIR | E33 E.NO.141365~; Includes Item(s) 2 - 12 This part replaces 13700-20F11.

13700-20F01

Unavailable

2

TUBE,OUTLET This part replaces 13881-20F00.

13881-20F01

Unavailable

3

CLAMP, CUTLET TUBE FRONT

13170-20F10

Unavailable

3A

CLAMP | ~E.NO.141364 This part replaces 13170-20F00.

09402-72203

$6.94

3A

CLAMP, OUTLET TUBE REAR | E.NO.141365~

09402-72203

$6.94

4

FILTER, AIR CLEANER

13780-20F00

$58.32

5

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

6

TUBE,DRAIN | ~E.NO.141364 This part replaces 13870-19F00.

13870-20F12

Unavailable

6

TUBE, DRAIN | E33 ~E.NO.141364

13870-20F10

Unavailable

6

TUBE,DRAIN | E.NO.141365~ This part replaces 13870-20F11.

13870-20F12

Unavailable

7

CLIP

09401-14301

$2.35

8

.PLUG | EXCEPT E33

13859-41B10

$7.38

9

CLIP | EXCEPT E33

09401-14301

$2.35

10

TANK, OIL RETURN | ~E.NO.141364 This part replaces 13840-20F00.

13840-20F01

Unavailable

10

TANK, OIL RETURN | E.NO.141365~

13840-20F01

Unavailable

11

GROMMET

09308-13001

$2.15

12

SCREW This part replaces 03142-05163.

03141-0516A

$1.49

13

TUBE,BREATHER N | ~E.NO.117740 This part replaces 13851-20F00.

13894-47D00

Unavailable

13

TUBE,BREATHER N | E.NO.117741~ This part replaces 13851-20F10.

13894-47D00

Unavailable

14

CLIP

09401-15101

$2.26

15

TUBE, BREATHER CYLINDER (11X16X600) | L:600->220

09355-11165-600

$15.65
