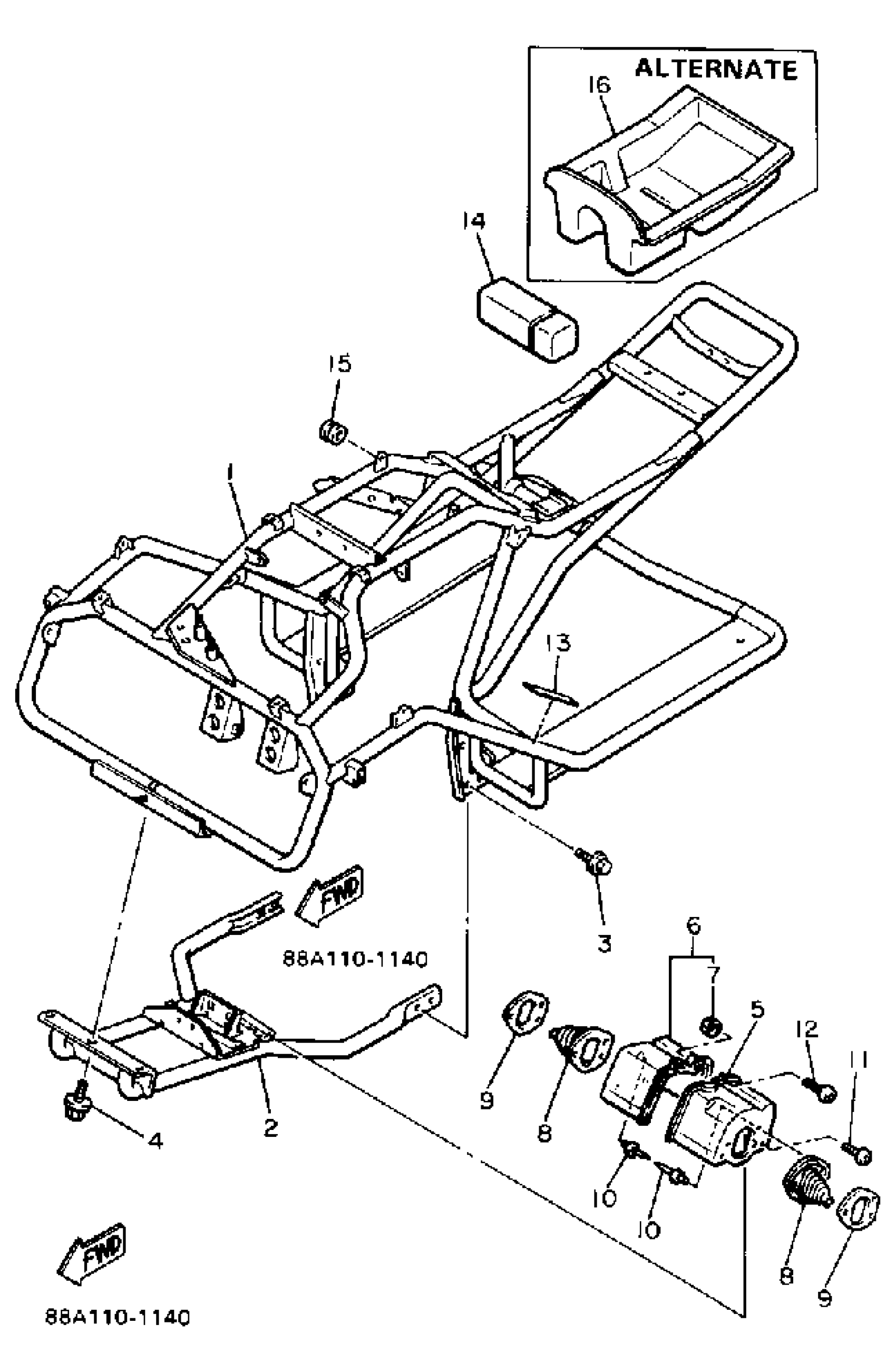

Yamaha SV125R (SNOSPORT) 1991 FRAME Diagram

#

Description

Price

1

FRAME

87B-21910-00-00

Unavailable

2

FRAME UNDER 1

87A-2196A-00-00

Unavailable

3

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

4

BOLT, WASHER BASED

90105-10637-00

Unavailable

5

COVER 1

87A-2198F-00-00

Unavailable

6

COVER 2

87A-2198G-00-00

Unavailable

7

. NUT, HEXAGON

90170-05365-00

Unavailable

8

COVER 3

87A-2198J-00-00

Unavailable

9

WASHER 1

87A-77525-00-00

Unavailable

10

RIVET, BLIND (J10)

90267-40077-00

$1.11

11

SCREW, BINDING

98907-05012-00

$8.49

12

SCREW, BINDING

98907-05020-00

$8.49

13

LABEL, WARNING 2

85G-77762-00-00

Unavailable

14

TOOL KIT

87B-28100-00-00

Unavailable

15

GROMMET

90480-16113-00

Unavailable

16

LUGGAGE BOX

87C-77391-00-00

Unavailable
