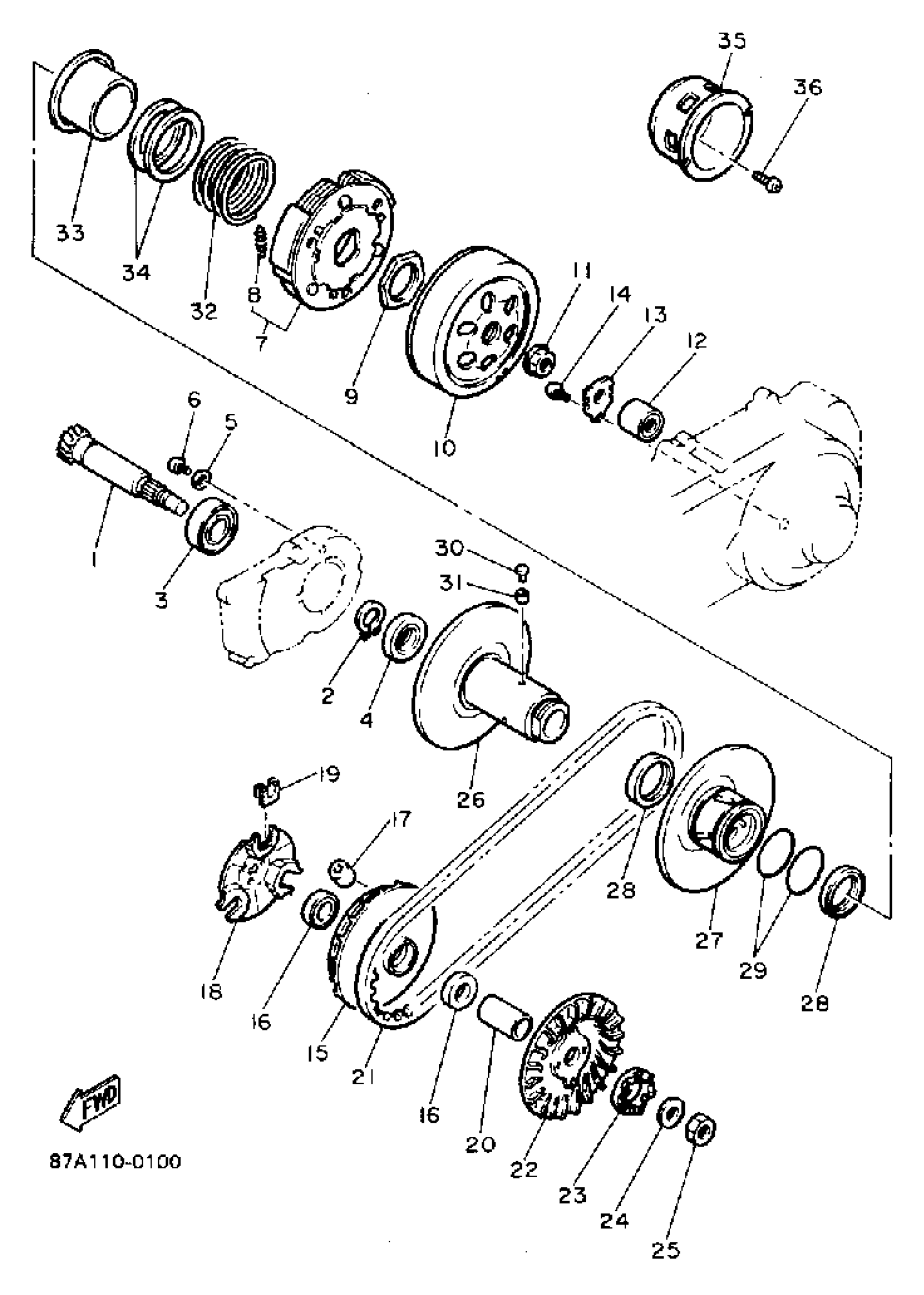

Yamaha SV125R (SNOSPORT) 1991 CLUTCH Diagram
#
1
GEAR, PRI DRIVE
50W-16111-00-00
Unavailable
2
CIRCLIP(1EY)
99009-22400-00
$8.49
3
BEARING(50M)
93306-00433-00
$42.99
4
OIL SEAL(50M)
93102-22335-00
Unavailable
5
WASHER, PLATE (371)
90201-06412-00
$5.60
6
SCREW PAN HEAD
98580-06010-00
$8.49
7
CLUTCH CARRIER ASSEMBLY
87A-16620-00-00
Unavailable
8
. CLUTCH WGT SPRING
2YM-16626-00-00
Unavailable
8
. CLUTCH WGT SPRING
87A-16626-00-00
Unavailable
9
NUT (5G3)
90170-36279-00
$16.99
10
CLUTCH HOUSING COMP.
1C5-16611-01-00
Unavailable
11
NUT
90179-14427-00
$3.02
12
BEARING(50M)
93399-99918-00
Unavailable
13
PLATE, BEARING COVER
50M-15381-00-00
Unavailable
14
SCREW PAN HEAD
98580-06010-00
$8.49
15
PRI SLIDG SHEAVECOMP.
50W-17620-01-00
Unavailable
16
OIL SEAL
93101-23127-00
Unavailable
17
WEIGHT
87A-17632-00-00
Unavailable
18
CAM
50W-17623-00-00
Unavailable
19
SLIDER
4CW-E7653-00-00
Unavailable
20
COLLAR
90387-166L7-00
Unavailable
21
V-BELT
50W-17641-01-00
Unavailable
22
SHEAVE, PRI FIXED
87A-17611-00-00
Unavailable
23
CLUTCH, ONE
87A-15657-00-00
Unavailable
24
WASHER, CONICAL SPRING(87A)
90208-12050-00
Unavailable
25
NUT, HEXAGON SMALL
95317-12700-00
Unavailable
26
SECONDARY FIXED SHEAVE COMP.
50W-17660-01-00
Unavailable
27
SEC SLIDING SHEAVE
87A-17670-00-00
Unavailable
28
OIL SEAL
93104-41119-00
Unavailable
29
O-RING(1EY)
93210-43713-00
Unavailable
30
PIN, GUIDE
50W-17664-00-00
Unavailable
31
COLLAR, GUIDE
50W-17674-00-00
Unavailable
32
SPRING,COMPRESSION
99999-02479-00
Unavailable
33
SEAT, SECONDARY SPRING
50W-17684-00-00
Unavailable
34
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
34
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
35
PULLEY, STARTER
87A-15723-00-00
Unavailable
36
SCREW, PAN
98517-06008-00
Unavailable
