AIR CLEANER

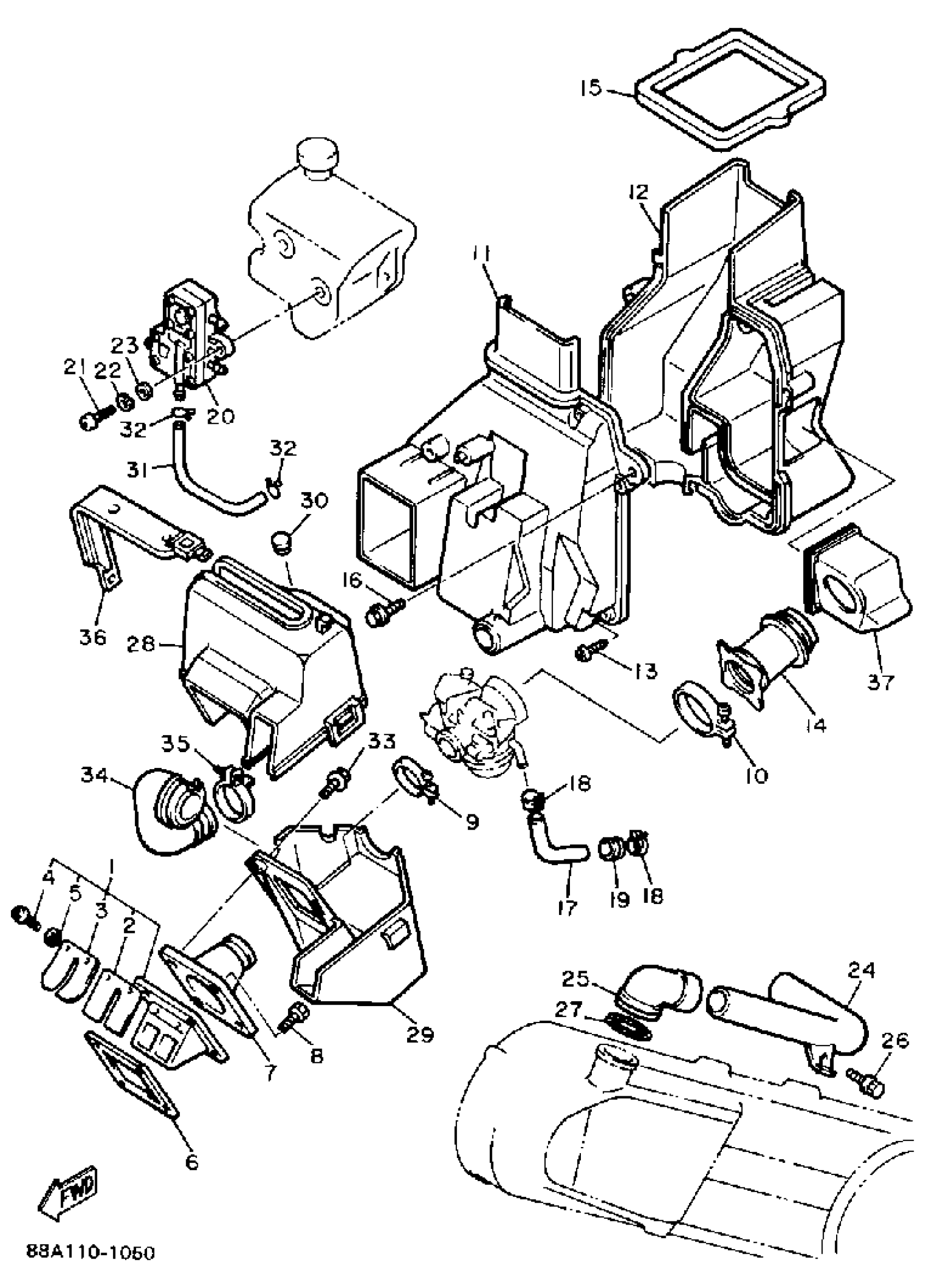

Yamaha SV125R (SNOSPORT) 1991 AIR CLEANER Diagram
#
1
REED VALVE ASSY
345-13610-20-00
$228.99
2
REED, VALVE
345-13613-70-00
$72.99
3
. STOPPER, REED VALVE
345-13616-70-00
Unavailable
4
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
5
WASHER, SPRING
92990-03100-00
$8.49
6
GASKET, VALVE SEAT
87A-13621-00-00
$8.99
7
MANIFOLD, INTAKE
87A-13555-00-00
Unavailable
8
BOLT,SOCKET
91317-06020-00
Unavailable
9
CLAMP, HOSE (5R2)
90460-41191-00
$16.99
10
HOSE CLAMP ASSY
90450-56001-00
$17.99
11
SILENCER, INTAKE 1
87A-14431-01-00
Unavailable
12
SILENCER, INTAKE 2
87A-14441-01-00
Unavailable
13
YBS83-525 SCREW,PANH.TAPPING
97780-50125-00
$2.87
14
JOINT, AIR CLNR 1
88A-14453-00-00
Unavailable
15
SEAL
87A-14452-00-00
Unavailable
16
BOLT, FLANGE
95817-06016-00
Unavailable
17
TUBE, FLEXIBLE VINYL(86X)
91A20-07100-00
Unavailable
18
CLIP (7K7)
90467-11044-00
Unavailable
19
GROMMET
90480-15257-00
Unavailable
20
FUEL PUMP ASSEMBLY
87A-24410-00-00
Unavailable
21
SCREW PAN HEAD
98580-06020-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
WASHER, PLAIN (646)
92990-06600-00
Unavailable
24
JOINT, AIR CLNR 2
87A-14463-00-00
Unavailable
25
PIPE, JOINT
87A-14485-00-00
Unavailable
26
BOLT, FLANGE
95817-06012-00
Unavailable
27
SPRING,TENSION
90506-06327-00
Unavailable
28
COVER, CARBURETOR
87A-14283-00-00
Unavailable
29
COVER, CARBURETOR 2
87A-14284-00-00
Unavailable
30
PLUG (17J)
90338-10132-00
Unavailable
31
HOSE (L450)
90445-10144-00
Unavailable
32
CLIP
90467-090A2-00
Unavailable
33
BOLT, FLANGE
95817-06035-00
Unavailable
34
DUCT
87A-14437-00-00
Unavailable
35
CLAMP, HOSE (5R2)
90460-41191-00
$16.99
36
GROMMET
87A-14435-00-00
Unavailable
37
TANK, SURGE
88A-1446E-00-00
Unavailable
