- SV125P (SNOSPORT) 1990
TRACK SUSPENSION 2

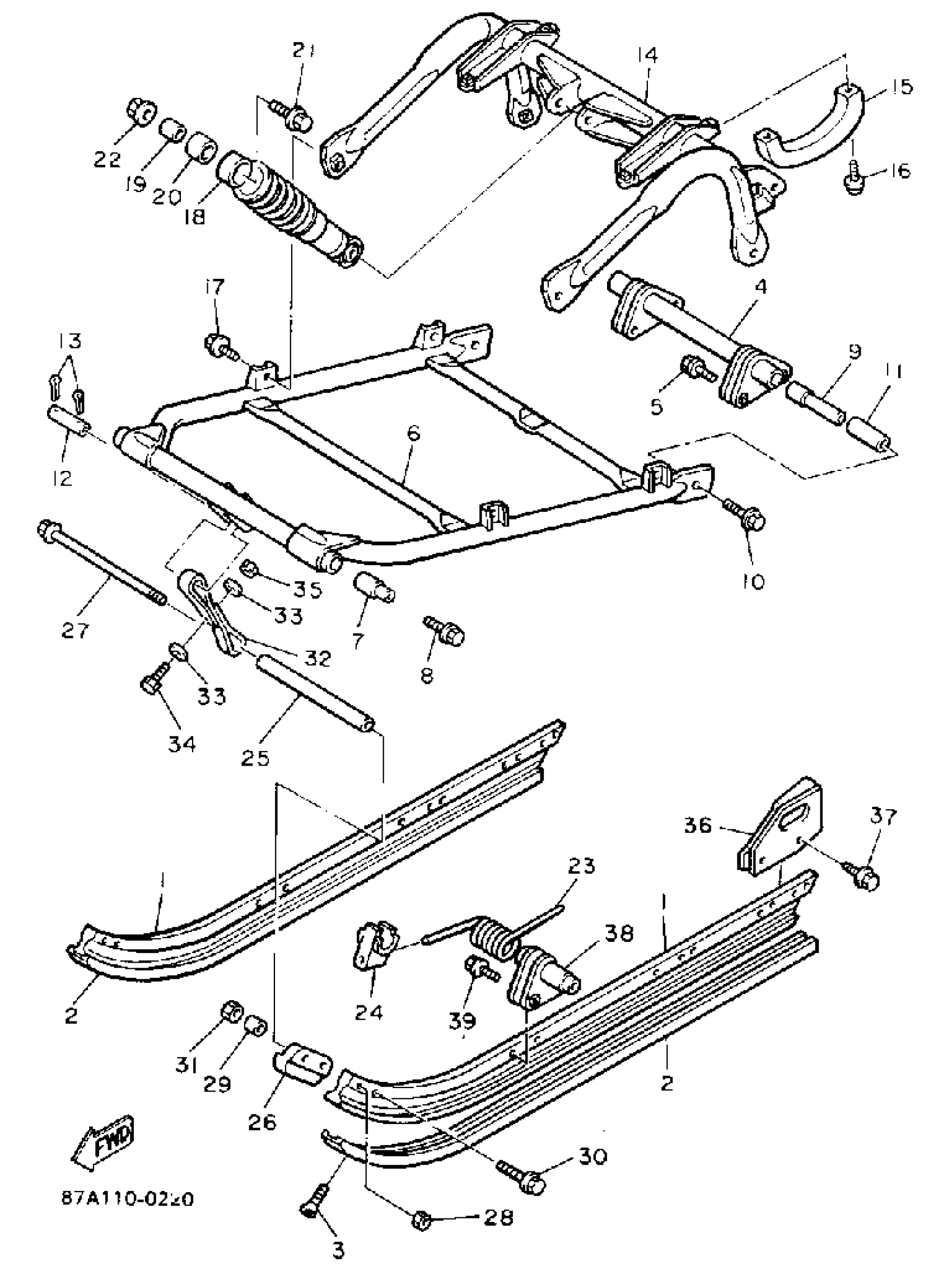

Yamaha SV125P (SNOSPORT) 1990 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
87A-47411-00-00
Unavailable
2
RUNNER, SLIDING 1 (8F3-47421-10)
8N4-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
BRACKET 2
87A-47416-00-00
Unavailable
5
BOLT, FLANGE
95817-06025-00
Unavailable
6
ARM, PIVOT 1
87A-47331-00-00
Unavailable
7
SHAFT 1
85G-47465-00-00
Unavailable
8
BOLT (8V0)
90109-10771-00
$5.60
9
SHAFT 3
87A-47485-00-00
Unavailable
10
BOLT, FLANGE
95817-10030-00
$8.49
11
COLLAR
90387-205W7-00
Unavailable
12
COLLAR(85G)
90387-106T4-00
$14.99
13
PIN, COTTER
91490-20035-00
$4.77
14
BRACKET 3
87A-47417-00-00
Unavailable
15
PROTECTOR
85X-47445-00-00
Unavailable
16
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
17
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
18
SHOCK ABSORBER
87A-47480-00-00
Unavailable
19
COLLAR
90387-145Y7-00
Unavailable
20
COLLAR(87A)
90387-100X3-00
Unavailable
21
BOLT, FLANGE
95814-10040-00
Unavailable
22
NUT, SELF-LOCKING (8U7)
90185-10115-00
Unavailable
23
SPRING, FRONT 1
87A-47471-00-00
Unavailable
24
HOOK 2
8V0-47447-01-00
Unavailable
25
COLLAR
90387-086T3-00
Unavailable
26
RUNNER, SLIDING 2
85G-47422-01-00
Unavailable
27
BOLT,FLANGE
95817-08190-00
Unavailable
28
NUT, SELF-LOCKING
90185-08169-00
Unavailable
29
COLLAR
90387-086T2-00
Unavailable
30
BOLT, FLANGE
95814-08045-00
Unavailable
31
NUT, SELF-LOCKING
90185-08169-00
Unavailable
32
STOPPER 1
87A-47495-00-00
Unavailable
33
WASHER
90209-06012-00
Unavailable
34
BOLT, HEXAGON
97017-06025-00
Unavailable
35
NUT, NYLON
95707-06300-00
Unavailable
36
FRAME, SLIDING 2
85G-47412-00-00
Unavailable
37
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
38
BRACKET 6
87A-47464-00-00
Unavailable
39
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
