1990 Yamaha Snosport (SV125P) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1990 Yamaha Snosport (SV125P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

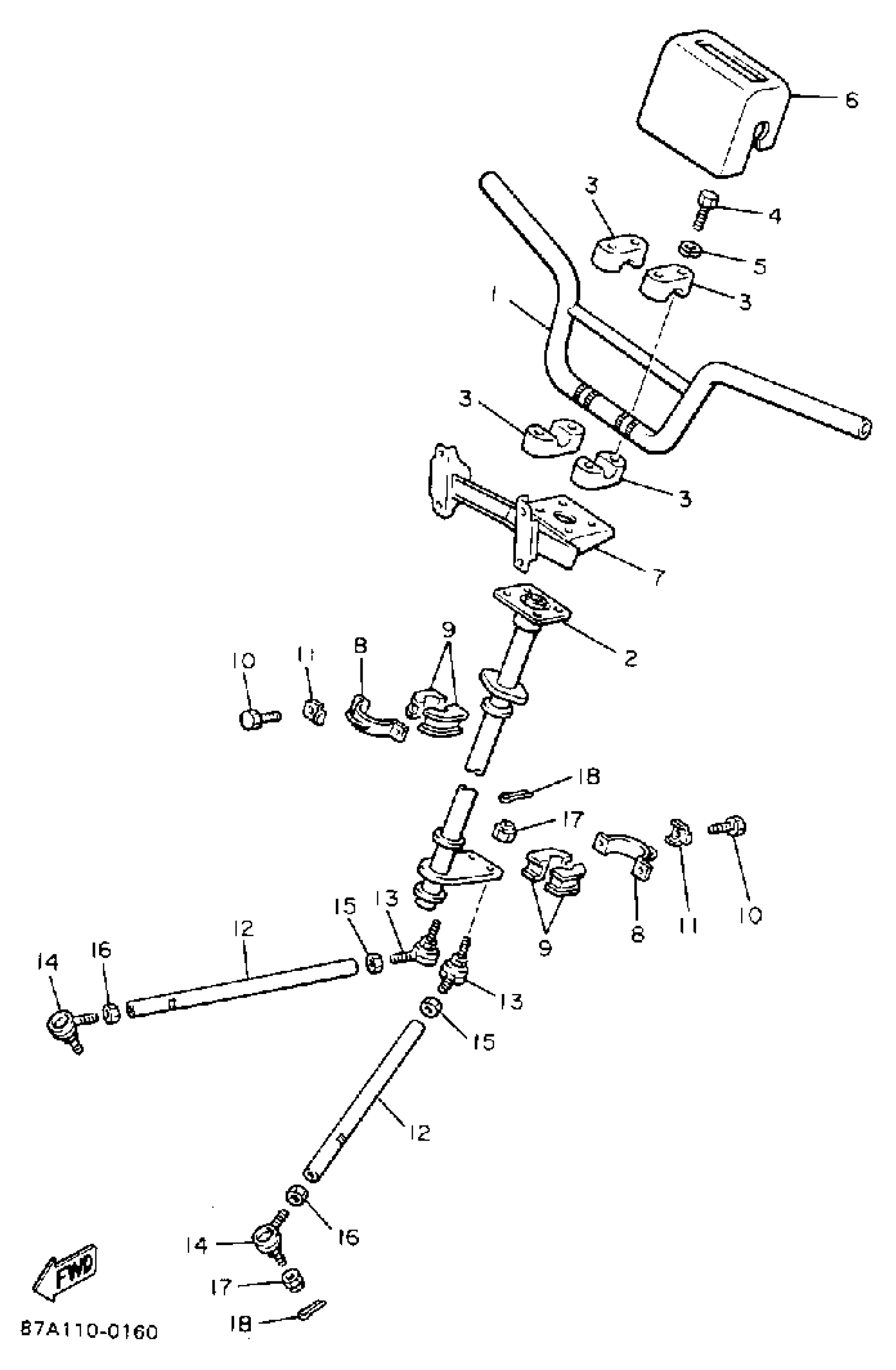

1990 Yamaha Snosport (SV125P) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

87A-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

87A-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPR

85G-23814-00-00

1
Out of stock

4

BOLT

97021-08065-00

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

COVER, STEERING

8F3-23818-00-00

—

$21.86

In stock

7

STAY, HEADLIGHT

85G-23174-00-00

1
Out of stock

8

BRACKET, STEERING LOWER

84M-23868-00-00

—

$32.05

In stock

9

BEARING, STEERING

8F3-23812-00-00

1

$9.89

In stock

10

BOLT, HEXAGON

97017-08016-00

1
Out of stock

11

WASHER, LOCK 1

8AC-23894-01-00

1

$3.62

In stock

12

ROD, STEERING RELAY

89A-23821-00-00

1
Out of stock

13

JOINT, UNIVERSAL 1

86X-23841-00-00

1

$51.36

In stock

14

JOINT, UNIVERSAL 2

86X-23845-00-00

1

$54.20

In stock

15

NUT (682)

95380-10700-00

1

$5.78

In stock

16

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

18

PIN, COTTER

91490-25020-00

—

$2.94

In stock
