1990 Yamaha Snosport (SV125P) Ski Diagram

← All diagrams

Find the part on the Ski diagram for your 1990 Yamaha Snosport (SV125P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

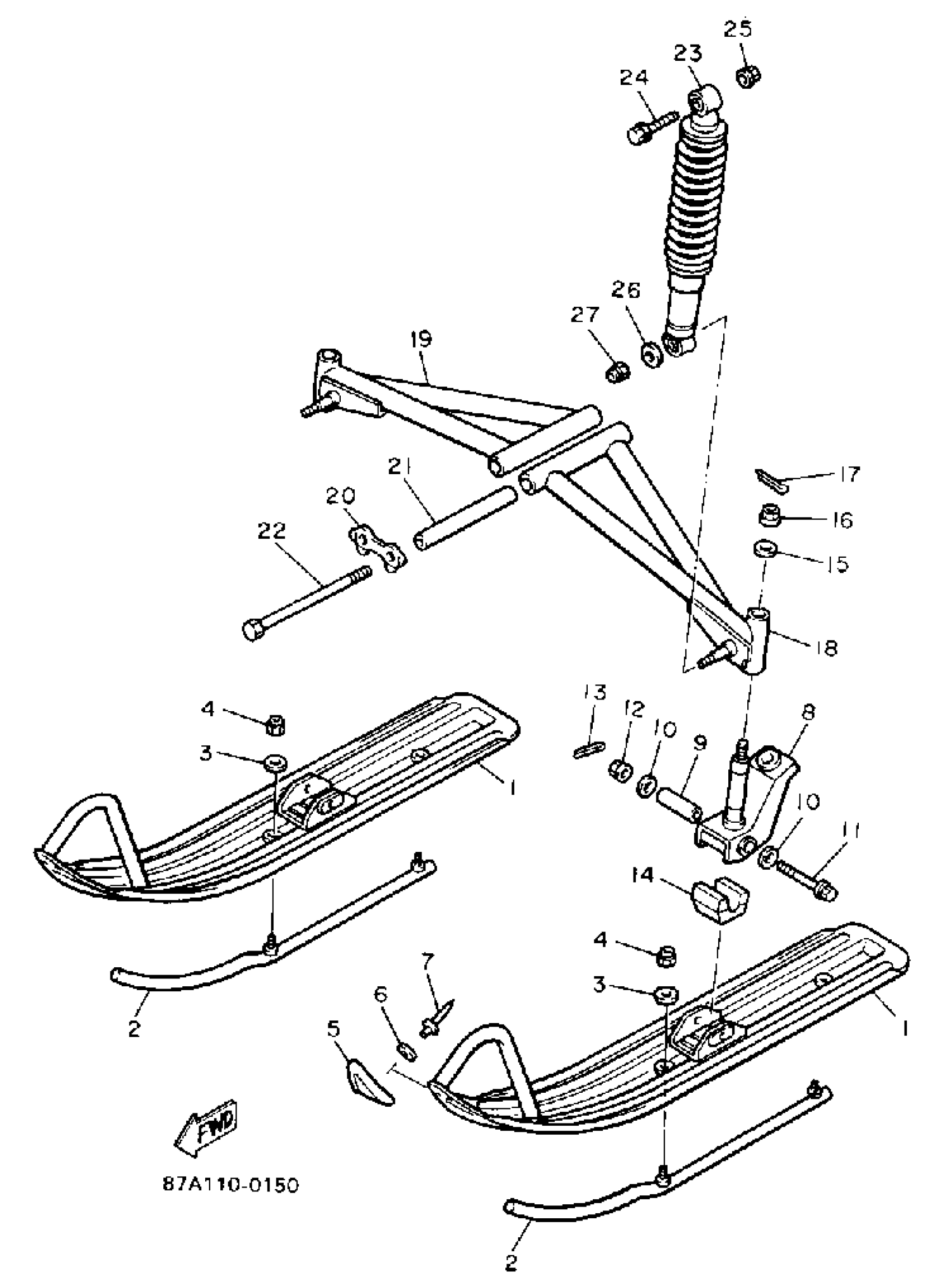

1990 Yamaha Snosport (SV125P) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

87A-23710-00-00

1
Out of stock

2

SKI RUNNER, 1 (87A-23731-00-00)

87A-23731-00-XX

1
Out of stock

3

WASHER (853)

90201-08326-00

1

$6.17

In stock

4

NUT, NYLON

95717-08300-00

1

$2.57

In stock

5

PROTECTOR, SKI

867-23747-00-00

1
Out of stock

6

1

$2.62

In stock

7

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

8

COLUMN, SKI 1

87A-23853-00-00

1
Out of stock

9

COLLAR

90387-101W2-00

1
Out of stock

10

WASHER, PLATE(47X)

90201-101J1-00

1

$6.17

In stock

11

BOLT, WASHER BASED(J41)

90105-10358-00

1

$4.38

In stock

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

13

PIN, COTTER

91490-20025-00

1

$1.31

In stock

14

STOPPER 1

87A-23743-00-00

1
Out of stock

15

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

16

NUT, SELF-LOCKING

90185-08169-00

—

$7.09

In stock

17

PIN, COTTER

91490-20025-00

1

$1.31

In stock

18

ARM, FRONT 1

87A-2382E-00-00

1
Out of stock

19

ARM, FRONT 2

87A-2382F-00-00

1
Out of stock

20

WASHER 1

87A-23737-00-00

1
Out of stock

21

COLLAR

90387-100W8-00

1
Out of stock

22

BOLT

97027-10220-00

1
Out of stock

23

SHOCK ABSORBER ASSEMBLY

87A-23350-00-00

1
Out of stock

24

BOLT, FLANGE

95814-10040-00

—

$3.69

In stock

25

NUT, SELF-LOCKING (8U7)

90185-10115-00

—

$6.82

In stock

26

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

27

NUT, NYLON

95717-08300-00

1

$2.57

In stock
