Description

Price

1

KICK SHAFT ASSEMBLY

87A-15601-00-00

Unavailable

2

SPRING, TORSION(3AA)

90508-32768-00

$17.99

3

BUSH, SOLID

90380-15817-00

Unavailable

4

WASHER, PLATE (5G3)

90201-154E9-00

$9.49

5

CIRCLIP(1AR)

99009-15400-00

$8.49

6

KICK CRANK ASSEMBLY

87A-15620-00-00

Unavailable

7

COVER, KICK LEVER

156-15618-01-00

$7.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

KICK PINION ASY

87A-15630-00-00

Unavailable

10

BUSH, SOLID(85G)

90380-08201-00

$17.99

11

CLIP

87A-15673-00-00

Unavailable

12

STAY 1

87A-15544-00-00

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

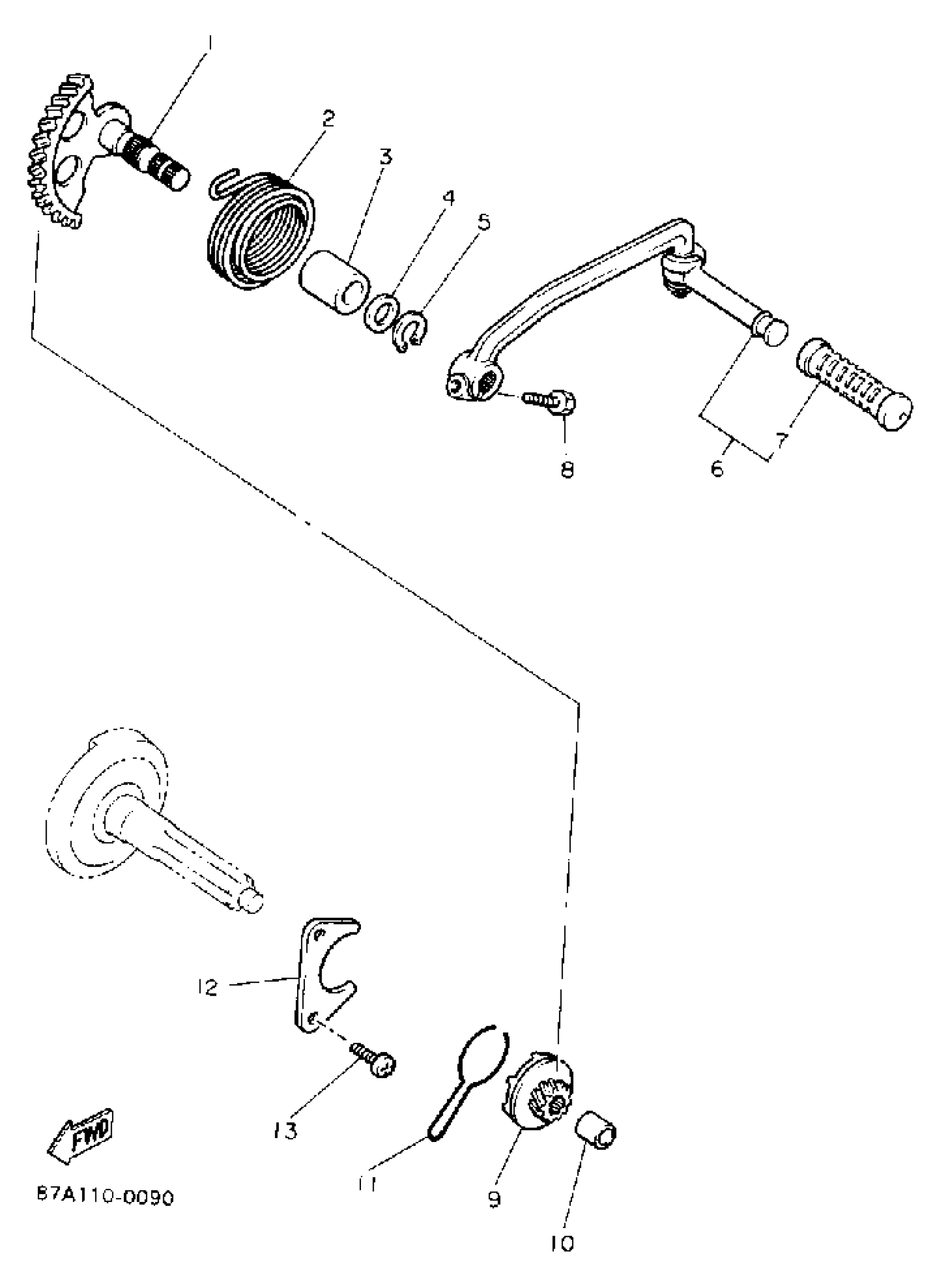

Yamaha SV125P (SNOSPORT) 1990 STARTER Diagram

KICK SHAFT ASSEMBLY

SPRING, TORSION(3AA)

BUSH, SOLID

WASHER, PLATE (5G3)

CIRCLIP(1AR)

KICK CRANK ASSEMBLY

COVER, KICK LEVER

BOLT, HEXAGON

KICK PINION ASY

BUSH, SOLID(85G)

CLIP

STAY 1

SCREW, PAN HEAD(62J)
