Description

Price

1

OIL PUMP ASSEMBLY

87A-13101-00-00

Unavailable

2

OIL SEAL (J10)

93101-10090-00

$8.49

3

O-RING

93210-26240-00

$8.49

4

GEAR, WORM WHEEL

296-13124-00-00

Unavailable

5

PIN, SPRING

91690-30014-00

Unavailable

6

CIRCLIP

99080-07600-00

Unavailable

7

GASKET 137131870000

90430-04004-00

$9.49

8

SCREW (3L5)

90149-04135-00

$1.11

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

SCREW, PAN

98507-05035-00

$8.49

11

CLIP (2A6)

90468-02025-00

$9.49

12

HOSE

91A30-03052-00

Unavailable

13

GEAR, PUMP DRIVE

50W-13178-00-00

Unavailable

14

PIN,DOWEL (603)

93603-12007-00

$2.55

15

CIRCLIP(1EY)

99009-19400-00

$8.49

16

WASHER WAVE 296156430000

90206-19027-00

Unavailable

17

SHIM

296-15644-00-00

Unavailable

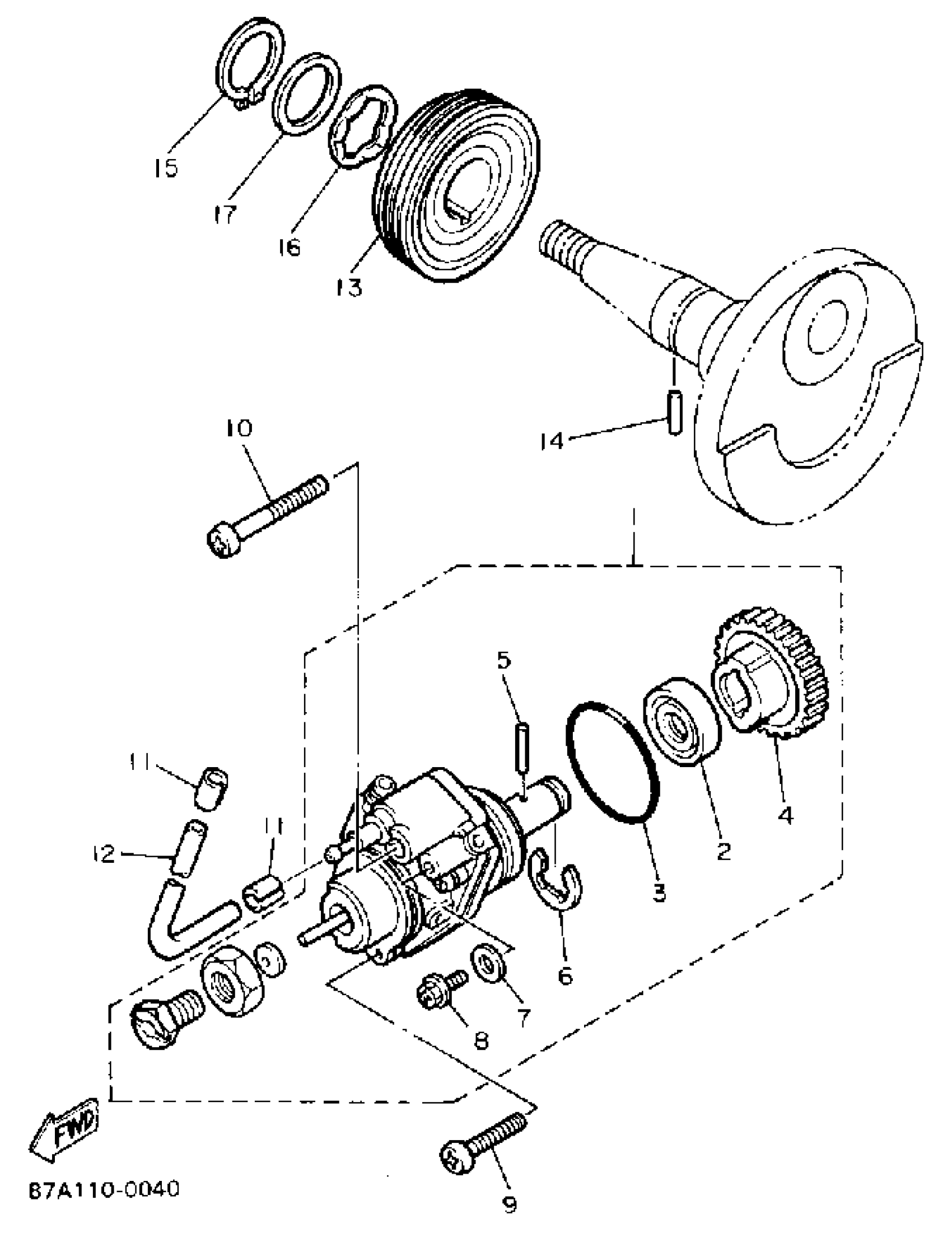

Yamaha SV125P (SNOSPORT) 1990 OIL PUMP Diagram

OIL PUMP ASSEMBLY

OIL SEAL (J10)

O-RING

GEAR, WORM WHEEL

PIN, SPRING

CIRCLIP

GASKET 137131870000

SCREW (3L5)

SCREW, PAN HEAD

SCREW, PAN

CLIP (2A6)

HOSE

GEAR, PUMP DRIVE

PIN,DOWEL (603)

CIRCLIP(1EY)

WASHER WAVE 296156430000

SHIM
