Description

Price

1

CDI UNIT ASSEMBLY

87A-85540-00-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

RECT/REG ASSEMBLY

85G-81960-60-00

Unavailable

6

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WIRE, SUB-LEAD

87A-82318-00-00

Unavailable

9

IGNITION COIL ASSY

86B-82310-13-00

$84.99

10

NUT, FLANGE(7NB)

95780-06500-00

$2.60

11

PLUG CAP ASSY

85G-82370-20-00

$34.99

12

SEAL, PLUG CAP

50W-82372-00-00

Unavailable

13

WIRE HARNESS ASSEMBLY

87A-82590-00-00

Unavailable

14

BAND, SWITCH CORD

437-83936-11-00

$4.63

15

CLAMP

5Y9-12491-00-00

$6.99

16

BAND, SWITCH CORD

437-83936-11-00

$4.63

17

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

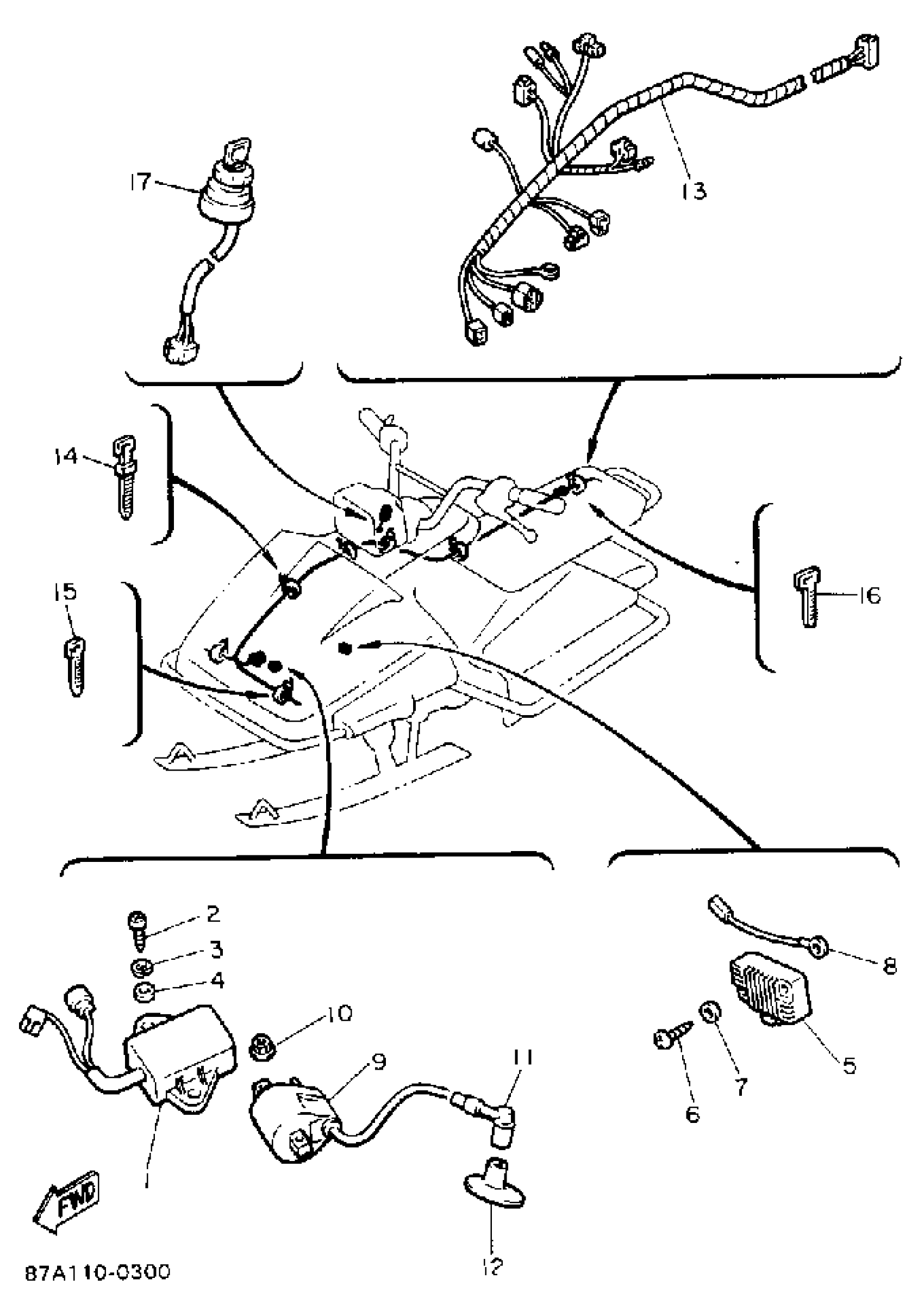

Yamaha SV125P (SNOSPORT) 1990 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

SCREW PAN HEAD

WASHER, SPRING

WASHER, PLAIN (646)

RECT/REG ASSEMBLY

SCREW, PAN HEAD(6B0)

YBS67-5 WASHER, SPRING

WIRE, SUB-LEAD

IGNITION COIL ASSY

NUT, FLANGE(7NB)

PLUG CAP ASSY

SEAL, PLUG CAP

WIRE HARNESS ASSEMBLY

BAND, SWITCH CORD

CLAMP

BAND, SWITCH CORD

MAIN SWITCH ASSY
