Description

Price

1

CRANKSHAFT ASSEMBLY

87A-11400-00-00

Unavailable

2

. CRANK 1

87A-11412-00-00

Unavailable

3

PIN CRANK

682-11681-00-00

Unavailable

4

BRG,CYL-CAL ROLLER 13G TM

93310-42012-00

$18.99

5

ROD, CONNECTING

50W-11651-00-00

$150.99

6

. CRANK 2

87A-11422-00-00

Unavailable

7

WASHER, CRANK PIN (1H9)

90209-20159-00

$5.60

8

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

9

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

10

OIL SEAL(87A)

93102-22419-00

$12.49

11

OIL SEAL, S-TYPE

93101-25152-00

Unavailable

12

COLLAR

90387-161W8-00

Unavailable

13

PISTON STD (STD)

50W-11631-00-96

Unavailable

13

PISTON 1 O/S 0.25 (0.25MM O/S)

50W-11635-00-00

Unavailable

13

PISTON 2 O/S 0.50 (0.50MM O/S)

50W-11636-00-00

Unavailable

14

PIN,PISTON

634-11633-00-00

Unavailable

15

PISTON RING SET (STD)

18G-11601-00-00

Unavailable

15

PISTON RING SET (1ST O/S)

18G-11601-10-00

Unavailable

15

PISTON RING SET (2ND O/S)

18G-11601-20-00

Unavailable

16

CIRCLIP (23F)

93450-15090-00

Unavailable

17

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

Unavailable

18

WASHER, PLATE(663)

92990-12600-00

Unavailable

19

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

20

NUT, HEXAGON (525)

90170-12181-00

Unavailable

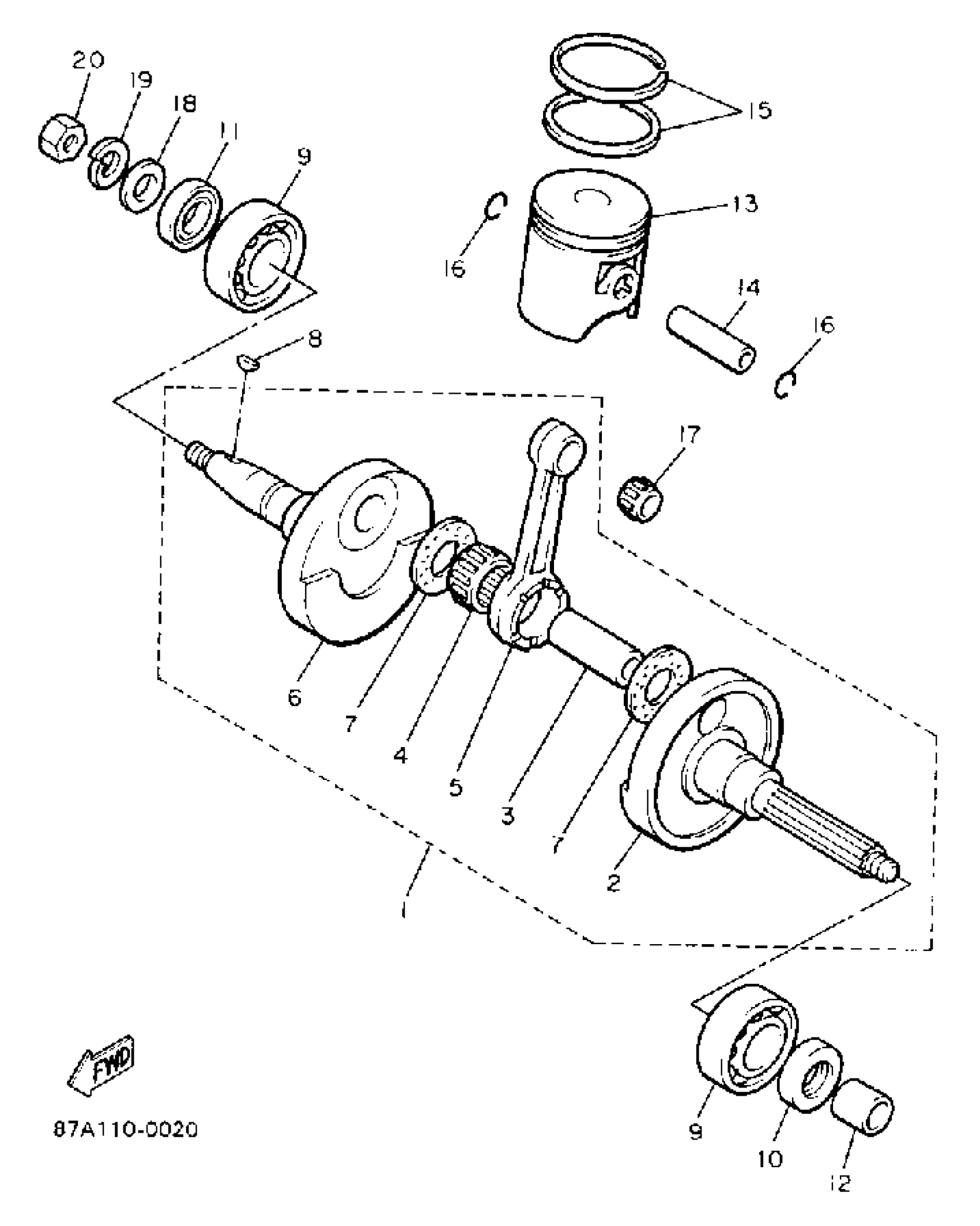

Yamaha SV125P (SNOSPORT) 1990 CRANKSHAFT - PISTON Diagram

CRANKSHAFT ASSEMBLY

. CRANK 1

PIN CRANK

BRG,CYL-CAL ROLLER 13G TM

ROD, CONNECTING

. CRANK 2

WASHER, CRANK PIN (1H9)

KEY WOODRUFF 146115450000

BRG,R-B 6205C4 52MM 130G KY

OIL SEAL(87A)

OIL SEAL, S-TYPE

COLLAR

PISTON STD (STD)

PISTON 1 O/S 0.25 (0.25MM O/S)

PISTON 2 O/S 0.50 (0.50MM O/S)

PIN,PISTON

PISTON RING SET (STD)

PISTON RING SET (1ST O/S)

PISTON RING SET (2ND O/S)

CIRCLIP (23F)

BRG,CYL-CAL ROLLER 7G TM

WASHER, PLATE(663)

YBS67-12 WASHER,SPRING

NUT, HEXAGON (525)
