CRANKCASE

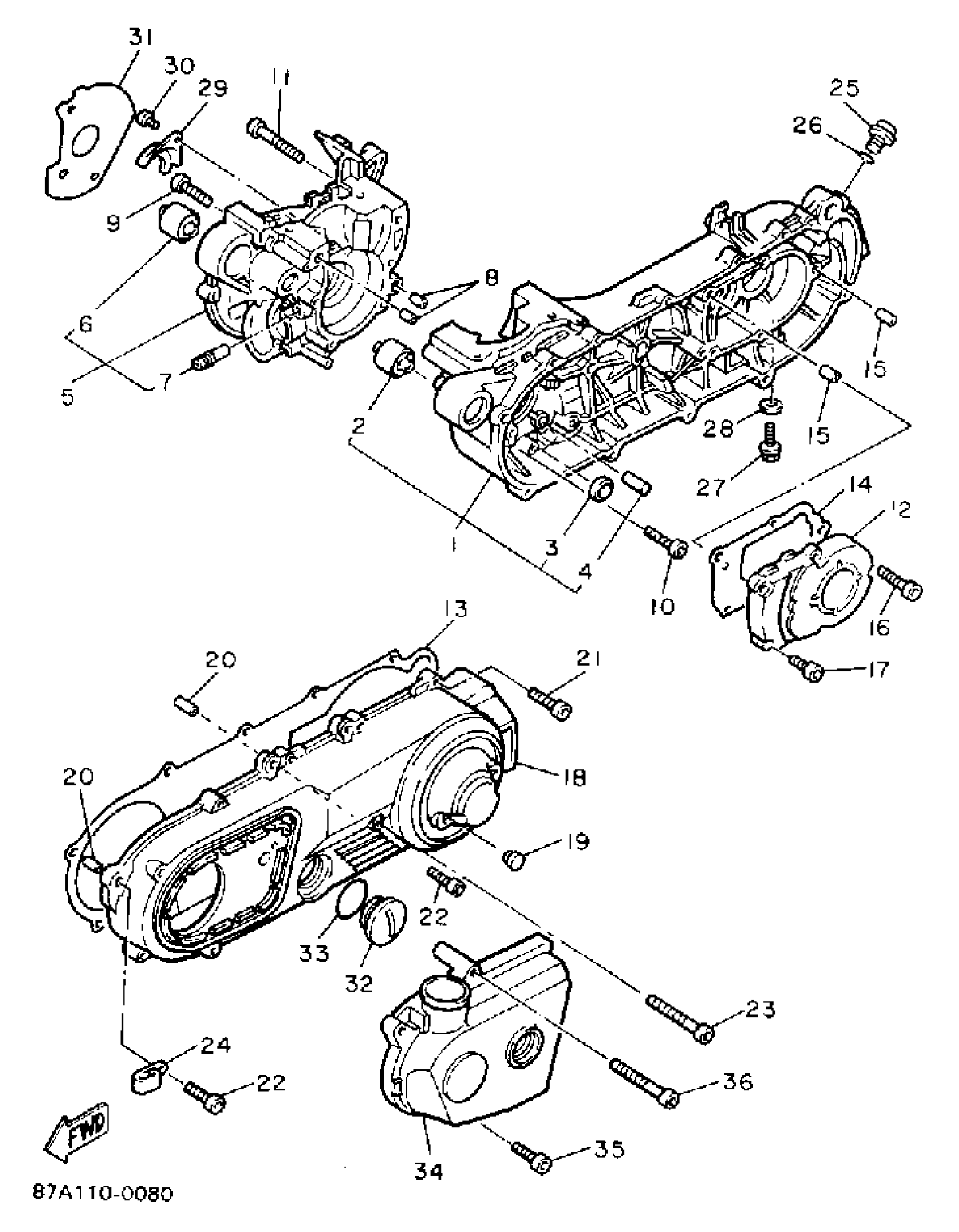

Yamaha SV125P (SNOSPORT) 1990 CRANKCASE Diagram
#
1
CRANKCASE ASSEMBLY 1
87A-15110-00-00
Unavailable
2
. DAMPER, ENG MOUNT 1
87A-15316-00-00
Unavailable
3
PLUG (21V)
90338-26136-00
Unavailable
4
SHAFT
3KJ-15659-00-00
Unavailable
5
CRANKCASE ASSEMBLY 2
87A-15120-00-00
Unavailable
6
. DAMPER, ENG MOUNT 1
87A-15316-00-00
Unavailable
7
JOINT, BREATHER
J38-11116-00-00
$3.80
8
PIN, DOWEL
99530-12016-00
$4.89
9
BOLT,SOCKET
91317-06035-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
$5.60
11
BOLT,SOCKET
91317-06060-00
$3.76
12
COVER, CRANKCASE 2
50W-15421-00-00
Unavailable
13
GASKET, CRCS COVERCOVER 1
87A-15451-00-00
Unavailable
14
GASKET, CRCS CVR 2COVER 2
87A-15461-00-00
Unavailable
15
PIN, DOWEL(3VD)
99530-10114-00
$2.55
16
BOLT, FLANGE(4BH)
95024-06035-00
Unavailable
17
BOLT, FLANGE(3DM)
95024-06020-00
Unavailable
18
COVER, CRANKCASE L
87A-15411-00-00
Unavailable
19
PLUG(2GU)
90338-12192-00
Unavailable
20
PIN, DOWEL(3VD)
99530-10114-00
$2.55
21
BOLT,SOCKET
91317-06025-00
Unavailable
22
BOLT,SOCKET
91317-06035-00
Unavailable
23
BOLT, SOCKET
91317-06070-00
Unavailable
24
CLAMP(4MX)
90465-06376-00
Unavailable
25
PLUG, OIL
4J2-15363-10-00
Unavailable
26
O-RING (26H)
93210-14579-00
Unavailable
27
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
28
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
29
HOLDER
50W-15128-00-00
Unavailable
30
SCREW, PAN
98517-06012-00
Unavailable
31
GASKET, CRCS CVR 3COVER 3
87A-15462-00-00
Unavailable
32
PLUG, STRAIGHT SCREW (5Y1)
90340-36078-00
Unavailable
33
O-RING
93210-35804-00
Unavailable
34
CRKCASE COVER ASSEMBLY
87A-W1543-01-00
Unavailable
35
BOLT,SOCKET
91317-06020-00
Unavailable
36
BOLT, SOCKET
91317-06070-00
Unavailable
