- SV125P (SNOSPORT) 1990
CARBURETOR

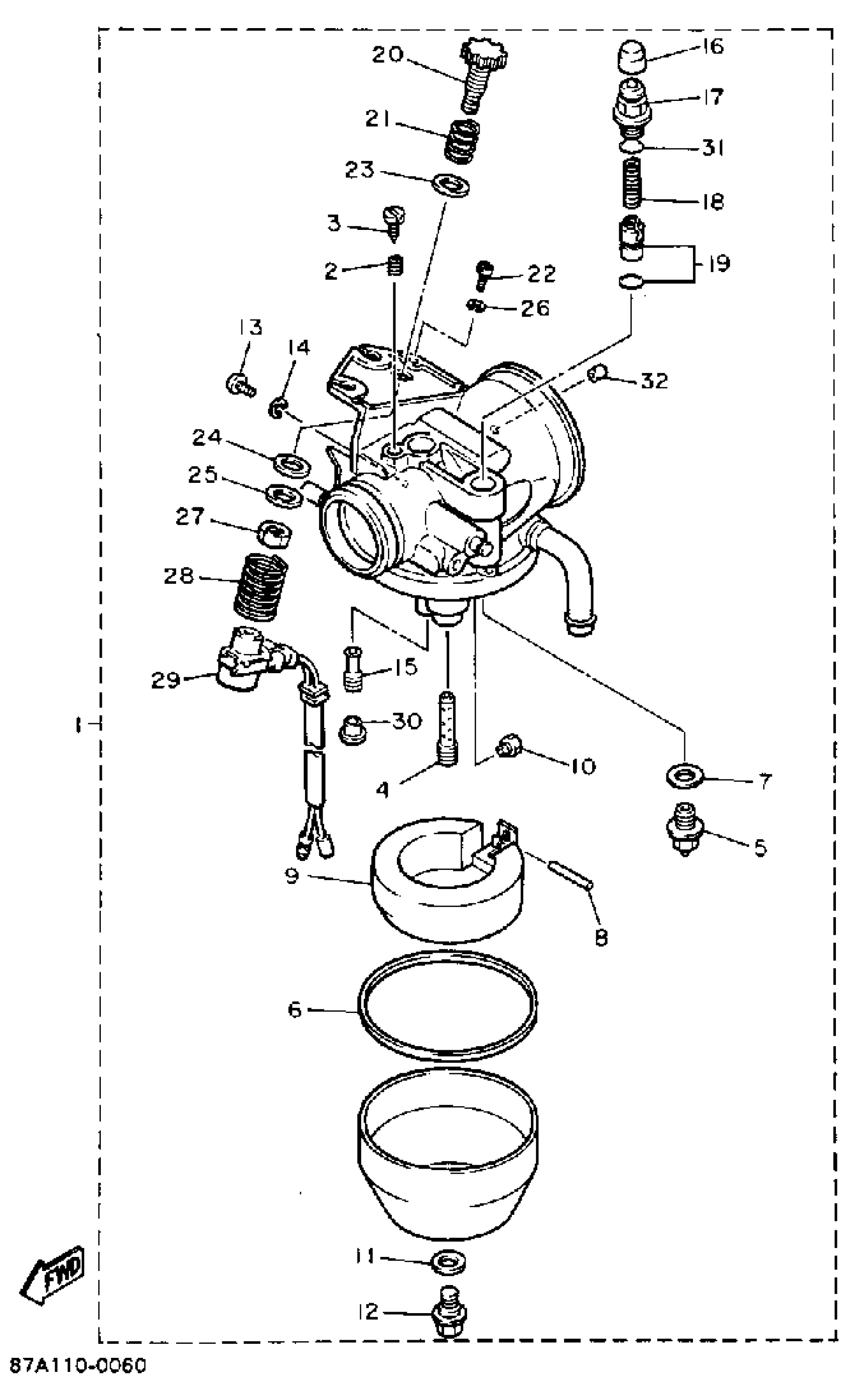

Yamaha SV125P (SNOSPORT) 1990 CARBURETOR Diagram
#
1
CARBURETOR ASY 1
88A-14101-00-00
Unavailable
2
SPRING, AIR ADJUSTING
82A-14134-00-00
$8.99
3
. SCREW, PILOT ADJUSTING
75G-14211-00-00
Unavailable
4
. MAIN, NOZZULE
87A-1495A-1B-00
Unavailable
5
NEEDLE VALVE ASSY
168-14190-10-00
$40.99
6
. GASKET
85G-14126-00-00
Unavailable
7
WASHER, VALVE SEAT
214-14195-00-00
$7.99
8
. PIN, FLOAT ARM
7G0-14548-00-00
Unavailable
9
. FLOAT
85G-14185-01-00
Unavailable
10
. JET, MAIN #85
3G2-14231-17-00
Unavailable
10
JET, MAIN (# 90)
3G2-14231-18-00
Unavailable
10
JET, MAIN (# 95)
3G2-14231-19-00
Unavailable
10
JET, MAIN (#100)
3G2-14231-20-00
Unavailable
10
JET,MAIN #87.5
3G2-1423A-68-00
$15.49
10
. JET, MAIN (#925)
3G2-1423A-69-00
Unavailable
10
JET,MAIN #97.5
3G2-1423A-70-00
Unavailable
11
WASHER
256-14956-01-00
Unavailable
12
. BOLT, HOLDING
7R1-14162-00-00
Unavailable
13
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
14
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
15
. JET, PILOT #525 (# 525)
193-14142-52-00
Unavailable
15
. JET, PILOT #55 (# 55)
193-14142-55-00
Unavailable
16
COVER, PLUNGER CAP
22F-14173-00-00
Unavailable
17
. GUIDE, CABLE
85G-14155-10-00
Unavailable
18
SPRING, PLUNGER
127-14135-00-00
Unavailable
19
. PLUNGER, STARTER
5V7-14171-00-00
Unavailable
20
. SCREW, THROTTLE
85G-14122-00-00
Unavailable
21
. SPRING, THRTL STOP
354-14133-00-00
Unavailable
22
. SCREW, GUIDE
85G-14245-00-00
Unavailable
23
GASKET
22F-14126-00-00
Unavailable
24
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
25
. WASHER
1UF-14952-00-00
Unavailable
26
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
27
NUT
8X0-14358-00-00
Unavailable
28
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
29
. SWITCH, CARBURETOR
87A-8259A-00-00
Unavailable
30
. CAP, CARBURETOR
6K8-14471-10-00
Unavailable
31
O-RING
1FN-14147-00-00
Unavailable
32
. MAIN AIR JET 10 (10)
87A-14172-10-00
Unavailable
32
. MAIN AIR JET 19 (19)
87A-14172-19-00
Unavailable
