Description

Price

1

AIR SHROUD, CYLINDER 1

87A-12651-00-00

Unavailable

2

C0LLAR

90387-062M9-00

$9.49

3

AIR SHROUD, CYLINDER 2

50W-12652-00-00

Unavailable

4

ABSORBER 2

50W-11162-00-00

Unavailable

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

AIR SHROUD, CYLINDER 3

87A-12653-00-00

Unavailable

8

CLAMP

(90465-10164-00)

Unavailable

9

SCREW PAN HEAD

98580-06020-00

$8.49

10

RIVET, BLIND

90267-48081-00

Unavailable

11

WASHER, PLATE(39X)

90201-057H5-00

$4.29

12

DUCT 3

87A-12693-00-00

Unavailable

13

CLAMP(87A)

90464-12123-00

Unavailable

14

JOINT 1

87A-12695-00-00

Unavailable

15

FAN

50W-12611-00-00

Unavailable

16

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

$2.80

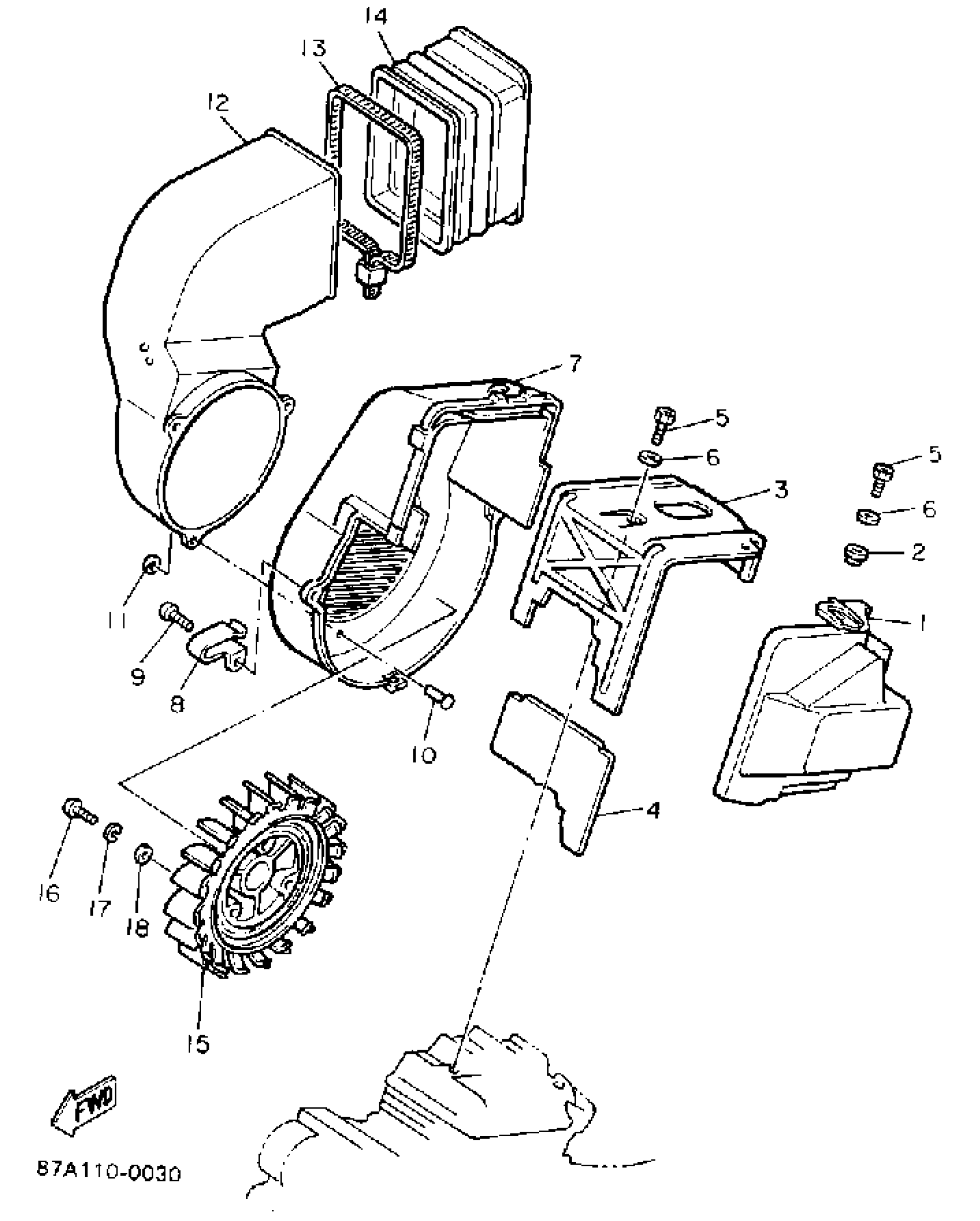

Yamaha SV125P (SNOSPORT) 1990 AIR SHROUD - FAN Diagram

AIR SHROUD, CYLINDER 1

C0LLAR

AIR SHROUD, CYLINDER 2

ABSORBER 2

BOLT, HEXAGON DEEP RECESS

WASHER, PLAIN (646)

AIR SHROUD, CYLINDER 3

CLAMP

SCREW PAN HEAD

RIVET, BLIND

WASHER, PLATE(39X)

DUCT 3

CLAMP(87A)

JOINT 1

FAN

SCREW, PAN HEAD(6E5)

WASHER, SPRING

WASHER, PLAIN (646)
