Description

Price

1

KICK SHAFT ASSEMBLY

87A-15601-00-00

Unavailable

2

SPRING, TORSION(3AA)

90508-32768-00

$17.99

3

BUSH, SOLID

90380-15817-00

Unavailable

4

WASHER, PLATE (5G3)

90201-154E9-00

$9.49

5

CIRCLIP(1AR)

99009-15400-00

$8.49

6

KICK CRANK ASSEMBLY

87A-15620-00-00

Unavailable

7

COVER, KICK LEVER

156-15618-01-00

$7.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

KICK PINION ASY

87A-15630-00-00

Unavailable

10

BUSH, SOLID(85G)

90380-08201-00

$17.99

11

CLIP

87A-15673-00-00

Unavailable

12

WHEEL, STARTER

50W-15524-00-00

Unavailable

13

BEARING, CYLINDER.#10

93310-232J8-00

Unavailable

14

STAY 1

50W-15544-00-00

Unavailable

15

SCREW, FLAT

98704-06016-00

Unavailable

16

STARTER CLUTCH ASSY

4KL-15570-00-00

Unavailable

17

IDLE GEAR ASSY

50W-15650-00-00

Unavailable

18

WASHER, PLATE(49E)

90201-087H6-00

Unavailable

19

PLATE, IDLE GEAR

50W-15532-00-00

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

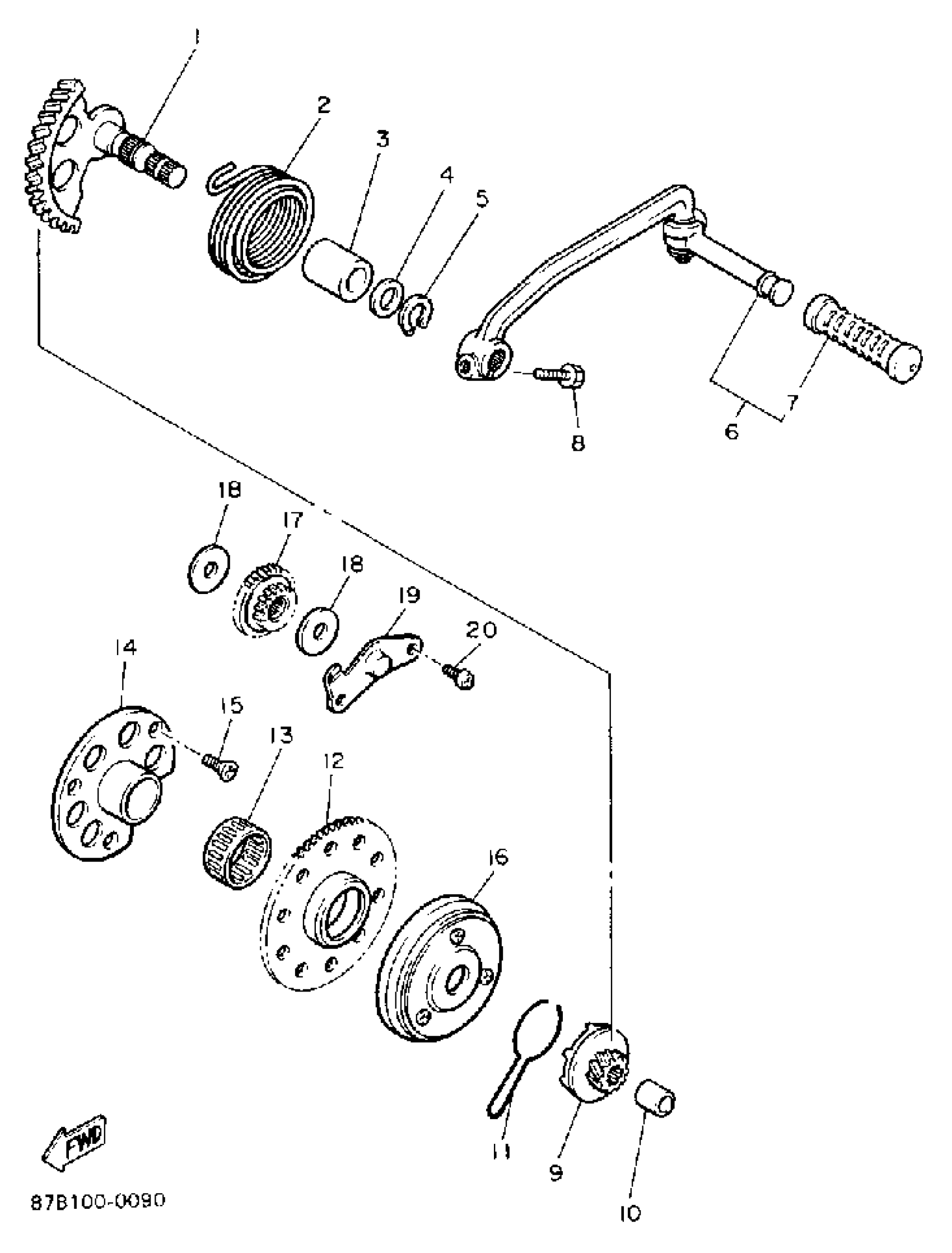

Yamaha SV125ER (SNOSPORT (ELEC START)) 1991 STARTER Diagram

KICK SHAFT ASSEMBLY

SPRING, TORSION(3AA)

BUSH, SOLID

WASHER, PLATE (5G3)

CIRCLIP(1AR)

KICK CRANK ASSEMBLY

COVER, KICK LEVER

BOLT, HEXAGON

KICK PINION ASY

BUSH, SOLID(85G)

CLIP

WHEEL, STARTER

BEARING, CYLINDER.#10

STAY 1

SCREW, FLAT

STARTER CLUTCH ASSY

IDLE GEAR ASSY

WASHER, PLATE(49E)

PLATE, IDLE GEAR

SCREW, PAN HEAD(62J)
