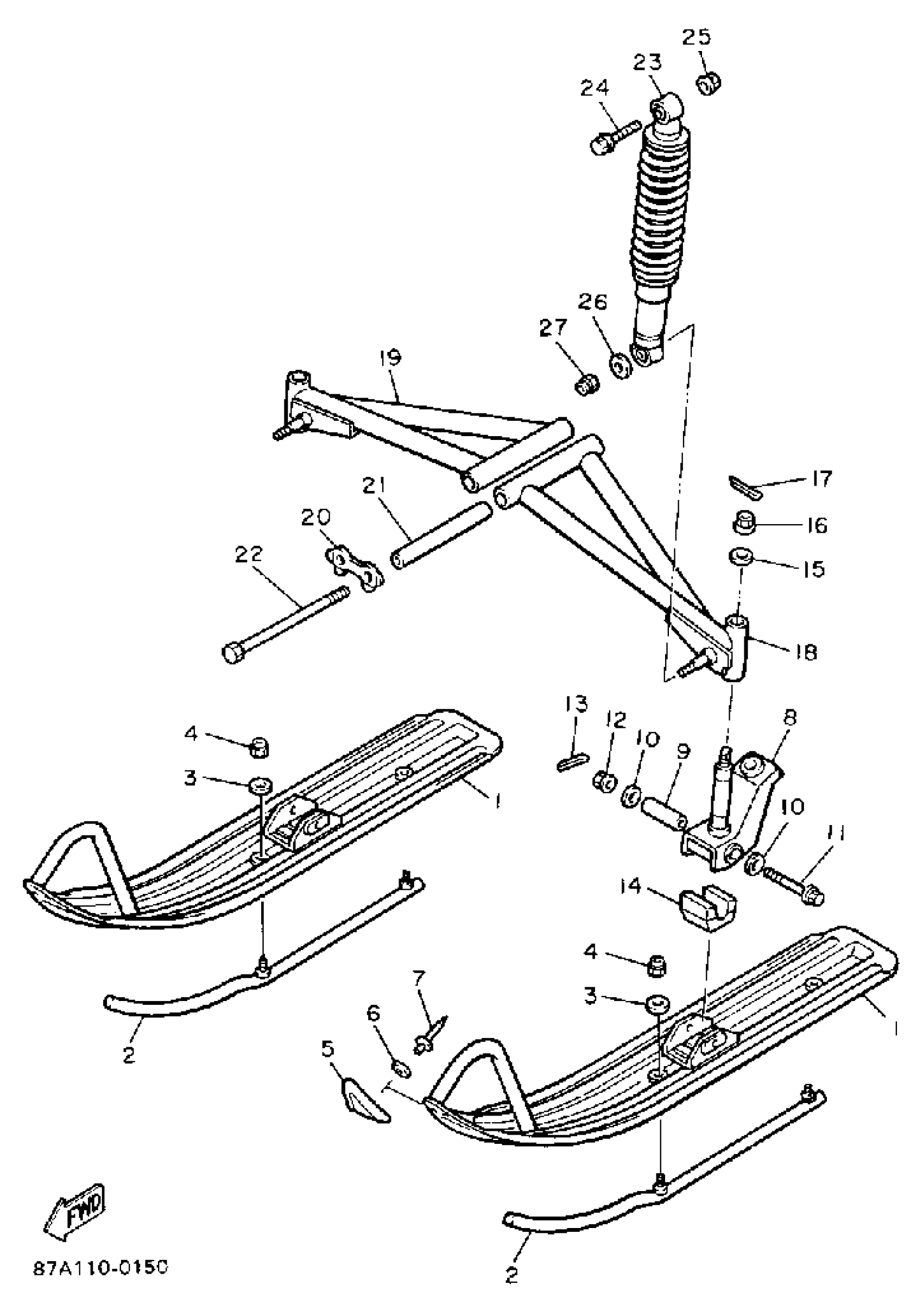

Yamaha SV125ER (SNOSPORT (ELEC START)) 1991 SKI Diagram
#
Description
Price
1
SKI 1
87A-23710-00-00
Unavailable
2
SKI RUNNER, 1 (87A-23731-00-00)
87A-23731-00-XX
Unavailable
3
WASHER (853)
90201-08326-00
$8.49
4
NUT, NYLON
95717-08300-00
$2.70
5
PROTECTOR, SKI
867-23747-00-00
Unavailable
6
WASHER, PLATE (820-77116-00)
90201-04023-00
$2.87
7
RIVET, BLIND (8K1)
90267-40076-00
$8.49
8
COLUMN, SKI 1
87A-23853-00-00
Unavailable
9
COLLAR
90387-101W2-00
Unavailable
10
WASHER, PLATE(47X)
90201-101J1-00
$8.49
11
BOLT, WASHER BASED(J41)
90105-10358-00
Unavailable
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
PIN, COTTER
91490-20025-00
$1.99
14
STOPPER 1
87A-23743-00-00
Unavailable
15
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
16
NUT, SELF-LOCKING
90185-08169-00
Unavailable
17
PIN, COTTER
91490-20025-00
$1.99
18
ARM, FRONT 1
87A-2382E-00-00
Unavailable
19
ARM, FRONT 2
87A-2382F-00-00
Unavailable
20
WASHER 1
87A-23737-00-00
Unavailable
21
COLLAR
90387-100W8-00
Unavailable
22
BOLT
97027-10220-00
Unavailable
23
SHOCK ABSORBER ASSEMBLY
88A-23350-00-00
Unavailable
24
BOLT, FLANGE
95814-10040-00
Unavailable
25
NUT, SELF-LOCKING (8U7)
90185-10115-00
Unavailable
26
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
27
NUT, NYLON
95717-08300-00
$2.70
