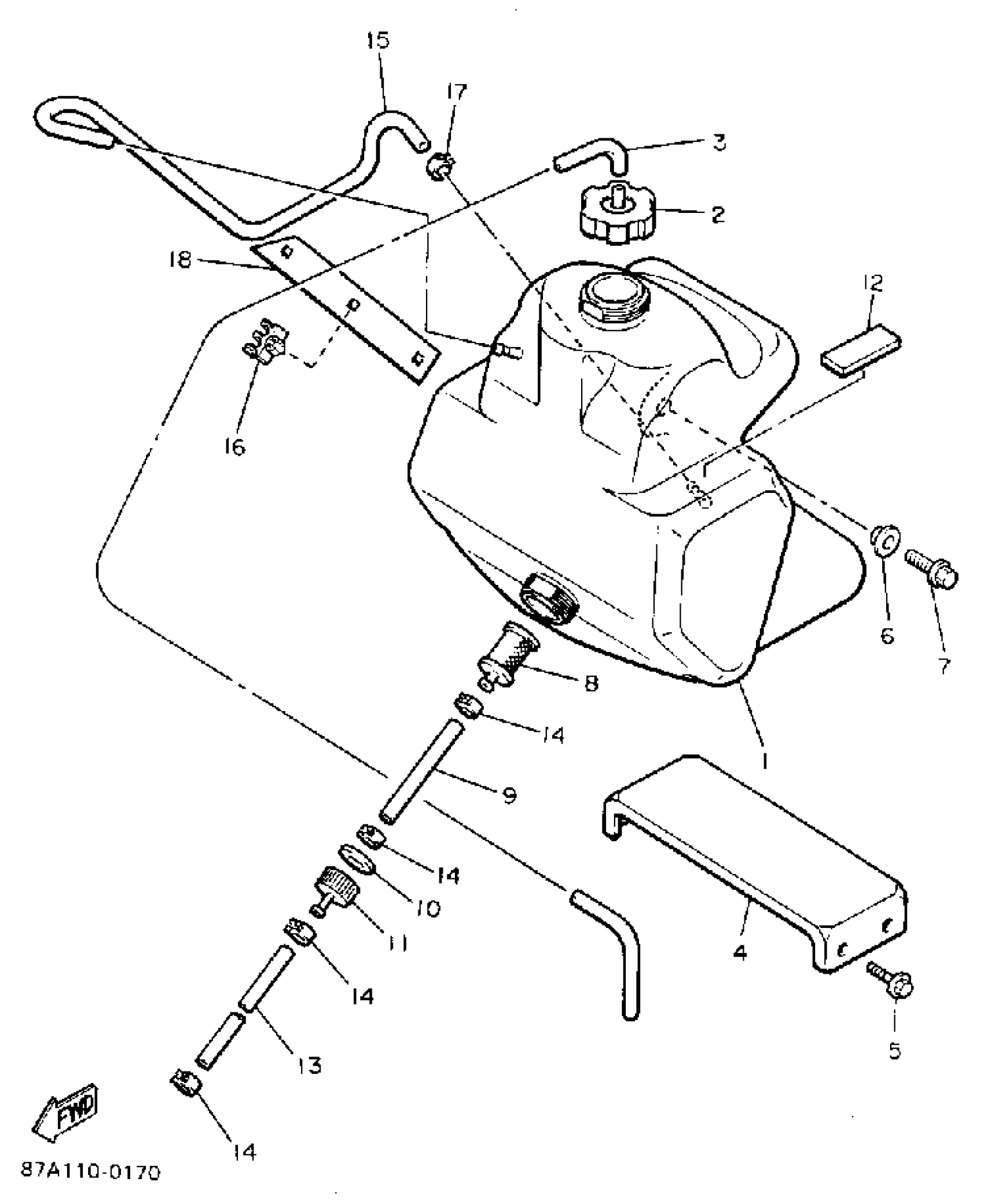

Yamaha SV125ER (SNOSPORT (ELEC START)) 1991 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

87A-24111-00-00

Unavailable

2

CAP ASSEMBLY

85G-24610-00-00

Unavailable

3

HOSE (L1500)

90445-090F6-00

$24.98

4

PLATE

(87A-2413X-00-00)

Unavailable

5

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

6

COLLAR

90387-081U0-00

Unavailable

7

BOLT, FLANGE(8AB)

95817-08020-00

$6.52

8

FILTER ASSY

85G-24560-00-00

$33.23

9

HOSE (L210)

90445-110F5-00

$13.14

10

PACKING, FILTER

8F3-24564-00-00

$10.74

11

BODY, CAP

8R4-24644-00-00

Unavailable

12

SPACER 2

87A-24175-00-00

Unavailable

13

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

$18.50

14

CLIP (7K7)

90467-11044-00

$4.89

15

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

16

CLAMP(87A)

90464-08126-00

Unavailable

17

CLIP (8A1)

90467-09026-00

Unavailable

18

REFLECTOR 1

87A-7716E-00-00

Unavailable
