Description

Price

1

TRACK ASSEMBLY

87A-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

AXLE, REAR

85G-47521-00-00

Unavailable

4

SUSPENSION WHEEL COMP.

8U7-47320-00-00

Unavailable

5

BEARING(8AB)

93306-00444-00

$41.99

6

CIRCLIP(5U8)

99009-42500-00

$8.49

7

COLLAR 3

85G-47479-00-00

Unavailable

8

NUT, NYLON

95707-10300-00

$8.49

9

COLLAR

90387-206T7-00

Unavailable

10

COLLAR

90387-206V2-00

Unavailable

11

WASHER, PLATE (888)

90201-20279-00

Unavailable

12

COLLAR

90387-204U6-00

Unavailable

13

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

14

PIN, COTTER

91490-30030-00

$8.49

15

COLLAR

90387-161W5-00

Unavailable

16

SHAFT 5

87A-47487-00-00

Unavailable

17

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

18

PIN, COTTER

91490-30030-00

$8.49

19

SUSPENTION WHEEL COMP

87M-47320-00-00

Unavailable

20

BEARING(8AB)

93306-00444-00

$41.99

21

CIRCLIP(5U8)

99009-42500-00

$8.49

22

COLLAR

90387-201W7-00

Unavailable

23

SUSPENTION WHEEL COMP

87M-47320-00-00

Unavailable

24

BEARING(8AB)

93306-00444-00

$41.99

25

CIRCLIP(5U8)

99009-42500-00

$8.49

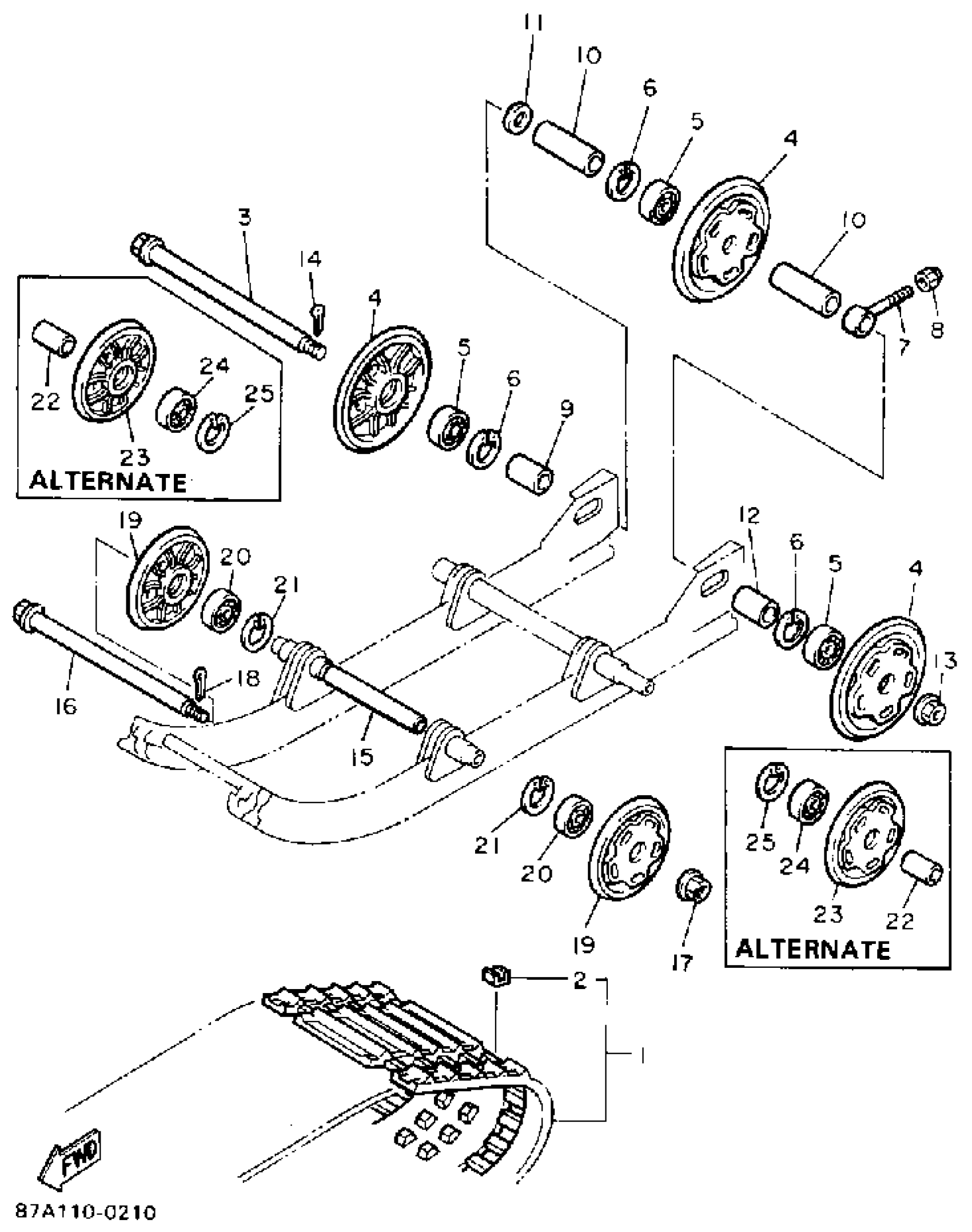

Yamaha SV125EP (SNOSPORT (ELEC START)) 1990 TRACK SUSPENSION 1 Diagram

TRACK ASSEMBLY

PLATE, REINFORCEMENT

AXLE, REAR

SUSPENSION WHEEL COMP.

BEARING(8AB)

CIRCLIP(5U8)

COLLAR 3

NUT, NYLON

COLLAR

COLLAR

WASHER, PLATE (888)

COLLAR

NUT, SELF-LOCKING (8BF)

PIN, COTTER

COLLAR

SHAFT 5

NUT, SELF-LOCKING (8BF)

PIN, COTTER

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

COLLAR

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)
