Description

Price

1

FUEL TANK

87A-24111-00-00

Unavailable

2

CAP ASSEMBLY

85G-24610-00-00

Unavailable

3

HOSE (L1500)

90445-090F6-00

$31.99

4

PLATE

(87A-2413X-00-00)

Unavailable

5

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

6

COLLAR

90387-081U0-00

Unavailable

7

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

8

FILTER ASSY

85G-24560-00-00

$39.99

9

HOSE (L210)

90445-110F5-00

$15.99

10

PACKING, FILTER

8F3-24564-00-00

$13.49

11

BODY, CAP

8R4-24644-00-00

Unavailable

12

SPACER 2

87A-24175-00-00

Unavailable

13

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

$23.99

14

CLIP (7K7)

90467-11044-00

$8.49

15

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

16

CLAMP(87A)

90464-08126-00

Unavailable

17

CLIP (8A1)

90467-09026-00

Unavailable

18

REFLECTOR 1

87A-7716E-00-00

Unavailable

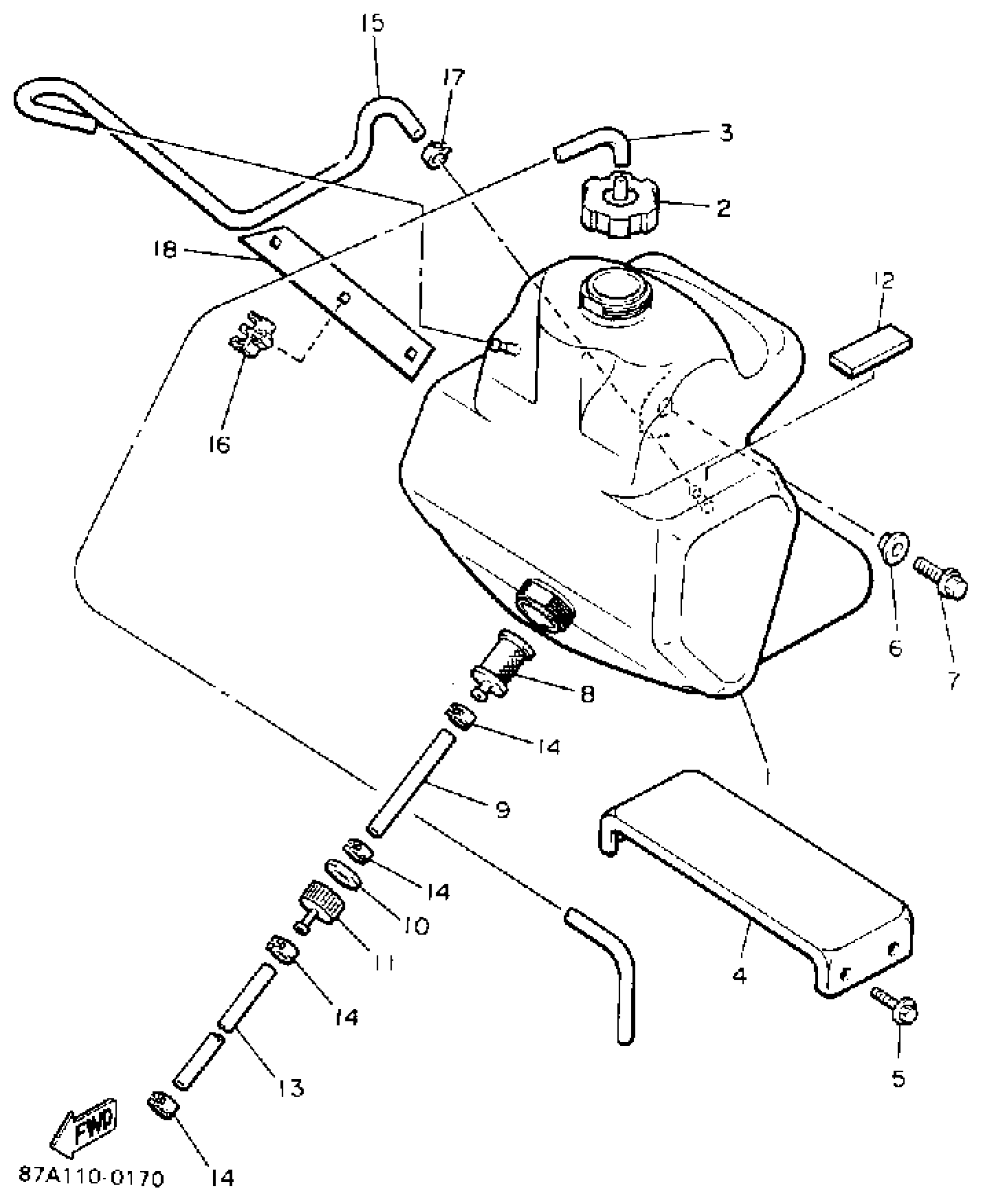

Yamaha SV125EP (SNOSPORT (ELEC START)) 1990 FUEL TANK Diagram

FUEL TANK

CAP ASSEMBLY

HOSE (L1500)

PLATE

BOLT, FLANGE(JN5)

COLLAR

BOLT, FLANGE(8AB)

FILTER ASSY

HOSE (L210)

PACKING, FILTER

BODY, CAP

SPACER 2

TUBE, FLEXIBLE VINYL(86X)

CLIP (7K7)

TUBE, FLEXIBLE VINYL(8AK)

CLAMP(87A)

CLIP (8A1)

REFLECTOR 1
