Description

Price

1

FRAME

87B-21910-00-00

Unavailable

2

FRAME UNDER 1

87A-2196A-00-00

Unavailable

3

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

4

BOLT(8BT)

97017-10020-00

$8.49

5

WASHER, LOCK

90215-10192-00

Unavailable

6

BOLT, FLANGE

95817-10020-00

$8.49

7

COVER 1

87A-2198F-00-00

Unavailable

8

COVER 2

87A-2198G-00-00

Unavailable

9

. NUT, HEXAGON

90170-05365-00

Unavailable

10

COVER 3

87A-2198J-00-00

Unavailable

11

WASHER 1

87A-77525-00-00

Unavailable

12

RIVET, BLIND (J10)

90267-40077-00

$1.11

13

SCREW, BINDING

98907-05012-00

$8.49

14

SCREW, BINDING

98907-05020-00

$8.49

15

LABEL, WARNING 2

85G-77762-00-00

Unavailable

16

BRACKET, BATTERY

87B-2199G-00-00

Unavailable

17

BAND

8R4-2811G-00-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

TOOL KIT

87B-28100-00-00

Unavailable

20

GROMMET

90480-16113-00

Unavailable

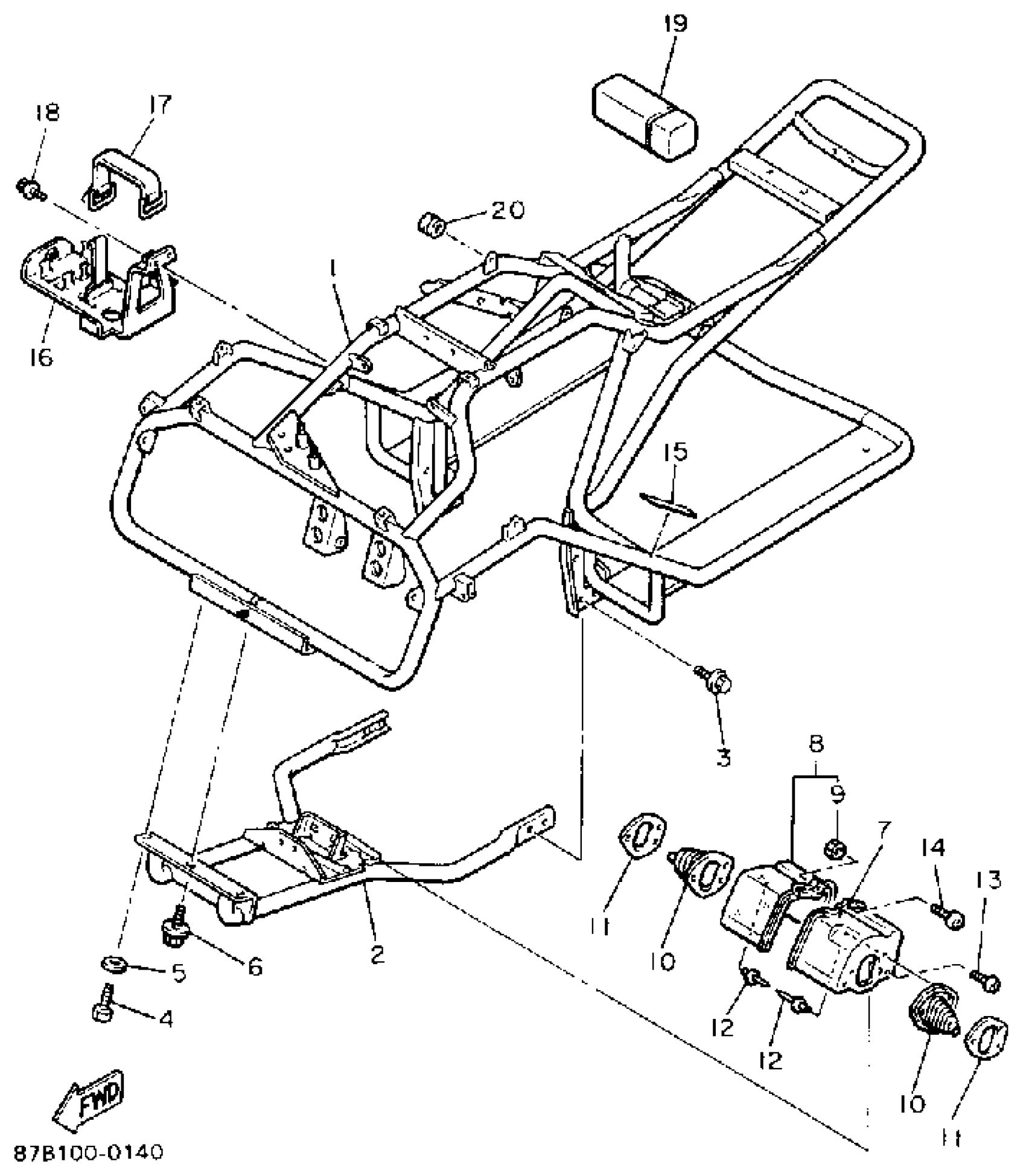

Yamaha SV125EP (SNOSPORT (ELEC START)) 1990 FRAME Diagram

FRAME

FRAME UNDER 1

BOLT, FLANGE(JN5)

BOLT(8BT)

WASHER, LOCK

BOLT, FLANGE

COVER 1

COVER 2

. NUT, HEXAGON

COVER 3

WASHER 1

RIVET, BLIND (J10)

SCREW, BINDING

SCREW, BINDING

LABEL, WARNING 2

BRACKET, BATTERY

BAND

BOLT, FLANGE

TOOL KIT

GROMMET
