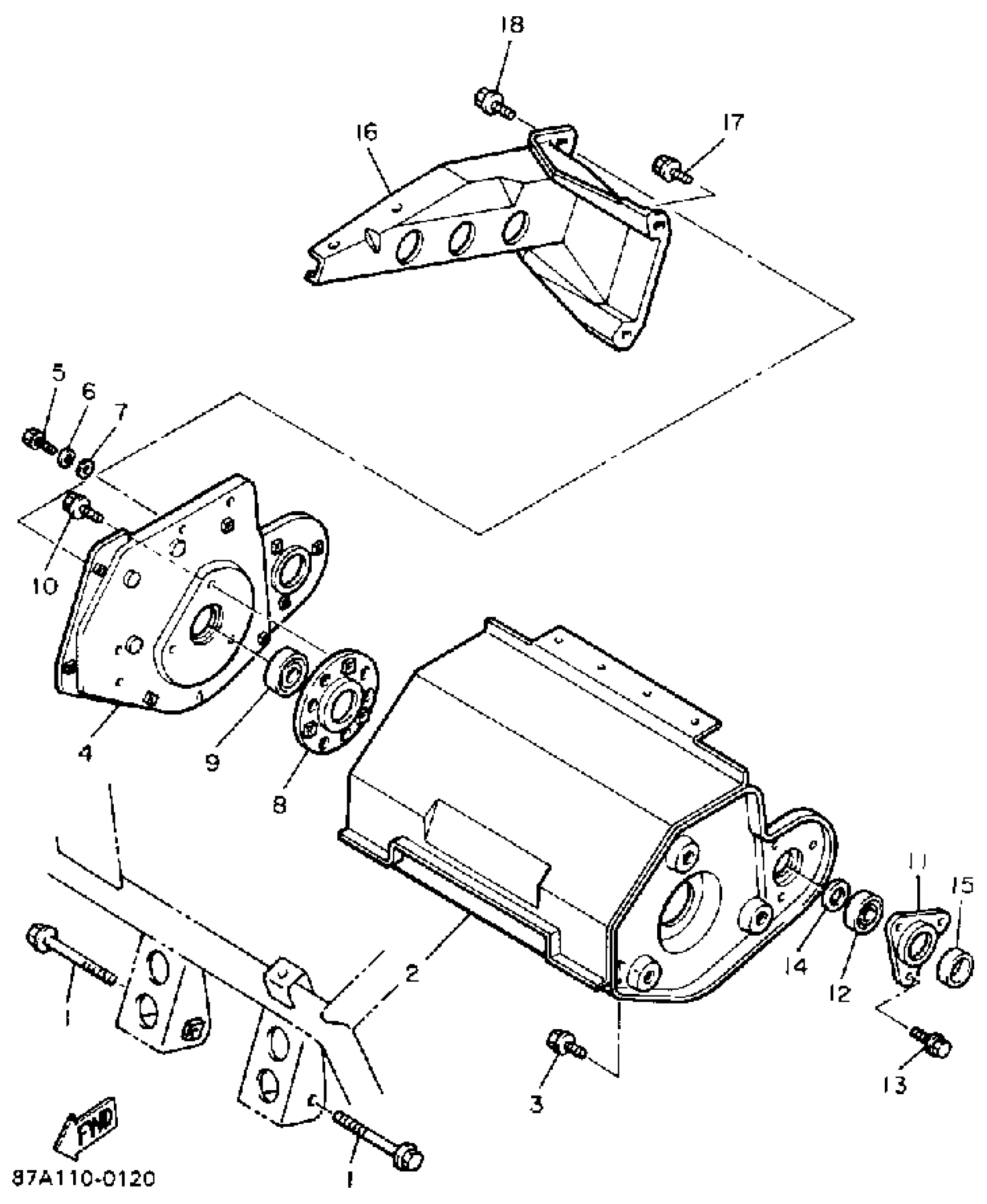

Yamaha SV125EP (SNOSPORT (ELEC START)) 1990 ENGINE BRACKET Diagram

#

Description
Price

1

BOLT,WASHER BASED

90105-08521-00

Unavailable

2

BRACKET, ENGINE 2

87A-21419-00-00

Unavailable

3

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

4

BRACKET, ENGINE 3

85G-21429-00-00

Unavailable

5

BOLT, HEXAGON

97017-06012-00

$3.76

6

WASHER, SPRING

92907-06100-00

$4.25

7

WASHER(6TA)

92907-06600-00

$2.72

8

HOUSING, FRONT AXLE

85G-47551-00-00

Unavailable

9

BEARING(8AB)

93306-00444-00

$41.99

10

BOLT, FLANGE

95817-08012-00

$5.49

11

HOUSING, SEC SHAFT

85G-47561-00-00

Unavailable

12

BEARING(85G)

93306-00316-00

$35.99

13

BOLT, FLANGE

95817-08012-00

$5.49

14

WASHER

90201-17256-00

Unavailable

15

COLLAR

90387-17009-00

$15.99

16

BRACKET, MUFFLER 1

87A-21435-00-00

Unavailable

17

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

18

BOLT, WASHER BASED

90105-08590-00

Unavailable
