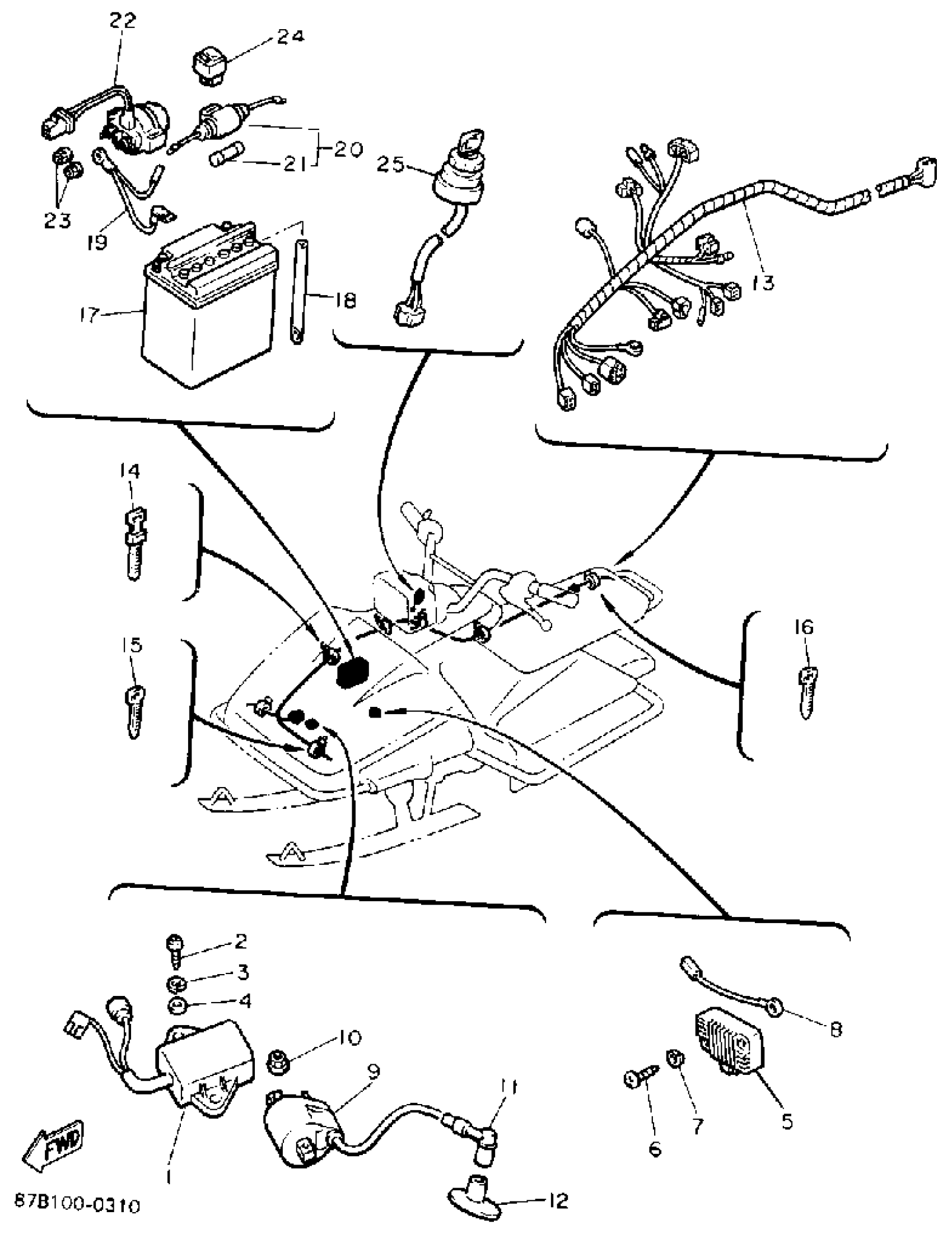

Yamaha SV125EP (SNOSPORT (ELEC START)) 1990 ELECTRICAL 1 Diagram
#
Description
Price
1
CDI UNIT ASSEMBLY
87A-85540-00-00
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
5
RECT/REG ASSEMBLY
85G-81960-60-00
Unavailable
6
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
8
WIRE, SUB-LEAD
87A-82318-00-00
Unavailable
12
SEAL, PLUG CAP
50W-82372-00-00
Unavailable
13
WIRE HARNESS ASSEMBLY
87B-82590-00-00
Unavailable
17
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
18
HOSE (L1500)
90445-084J0-00
Unavailable
19
WIRE, PLUS LEAD
87B-82115-00-00
Unavailable
20
FUSE HOLDER ASSEMBLY
2J2-82150-10-00
Unavailable
21
FUSE
682-82151-02-00
Unavailable
22
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
Unavailable
24
RELAY ASSY
4U8-81950-03-00
Unavailable
25
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
