- SV125EP (SNOSPORT (ELEC START)) 1990
CRANKSHAFT PISTON

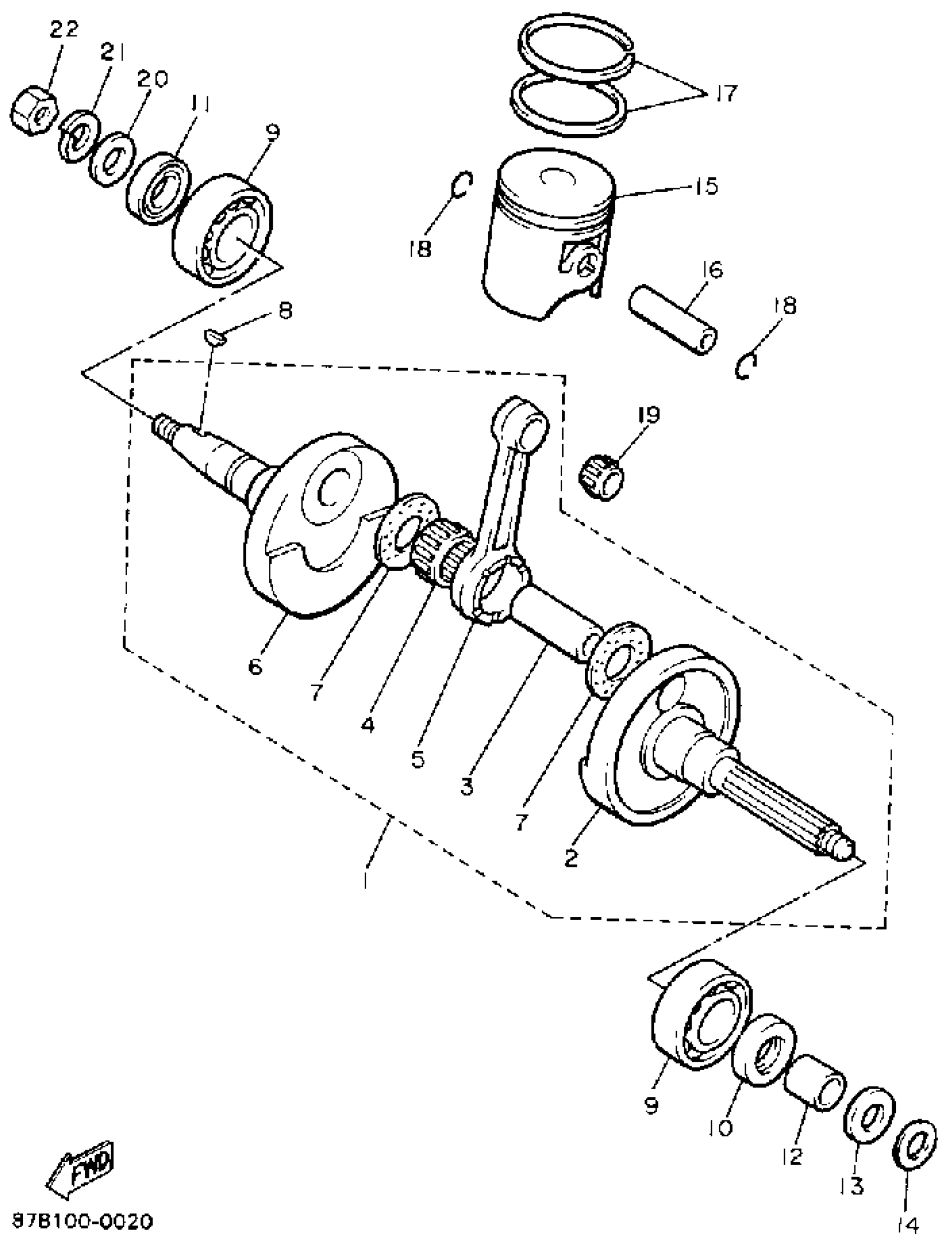

Yamaha SV125EP (SNOSPORT (ELEC START)) 1990 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
87A-11400-00-00
Unavailable
2
. CRANK 1
87A-11412-00-00
Unavailable
3
PIN CRANK
682-11681-00-00
Unavailable
4
BRG,CYL-CAL ROLLER 13G TM
93310-42012-00
$18.99
5
ROD, CONNECTING
50W-11651-00-00
$150.99
6
. CRANK 2
87A-11422-00-00
Unavailable
7
WASHER, CRANK PIN (1H9)
90209-20159-00
$5.60
8
KEY WOODRUFF 146115450000
90280-03017-00
$7.49
9
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
$40.99
10
OIL SEAL(87A)
93102-22419-00
$12.49
11
OIL SEAL, S-TYPE
93101-25152-00
Unavailable
12
COLLAR
90387-161L3-00
Unavailable
13
WASHER, PLATE (5K7)
90201-18264-00
$8.49
14
WASHER, PLATE(2NA)
90201-166L3-00
$1.54
15
PISTON STD (STD)
50W-11631-00-96
Unavailable
15
PISTON 1 O/S 0.25 (0.25MM O/S)
50W-11635-00-00
Unavailable
15
PISTON 2 O/S 0.50 (0.50MM O/S)
50W-11636-00-00
Unavailable
16
PIN,PISTON
634-11633-00-00
Unavailable
17
PISTON RING SET (STD)
18G-11601-00-00
Unavailable
17
PISTON RING SET (1ST O/S)
18G-11601-10-00
Unavailable
17
PISTON RING SET (2ND O/S)
18G-11601-20-00
Unavailable
18
CIRCLIP (23F)
93450-15090-00
Unavailable
19
BRG,CYL-CAL ROLLER 7G TM
93310-21403-00
Unavailable
20
WASHER, PLATE(663)
92990-12600-00
Unavailable
21
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
22
NUT, HEXAGON (525)
90170-12181-00
Unavailable
