Description

Price

1

BUMPER, FRONT 1

87A-77511-00-00

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

NUT, SPRING(4ES)

90183-06069-00

Unavailable

4

NUT, CAP

95307-08800-00

$7.49

5

WASHER(JN5)

92907-08100-00

$8.49

6

COVER, 4

85G-77564-00-00

Unavailable

7

RIVET, BLIND (8L0)

90267-48059-00

$3.28

8

FLAP

87A-77595-00-00

Unavailable

9

RIVET, BLIND(41R)

90267-48104-00

$3.50

10

PLATE, FLAP 2

85G-77594-00-00

Unavailable

11

NUT, NYLON

95707-06300-00

$3.50

12

STOPPER, FLAP

85G-77596-00-00

Unavailable

13

PROTECTOR 1

87A-77551-00-00

Unavailable

14

PROTECTOR 2

87A-77552-00-00

Unavailable

15

SCREW, BINDING

98907-06016-00

$9.49

16

COLLAR(3FC)

90387-061V4-00

Unavailable

17

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

18

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

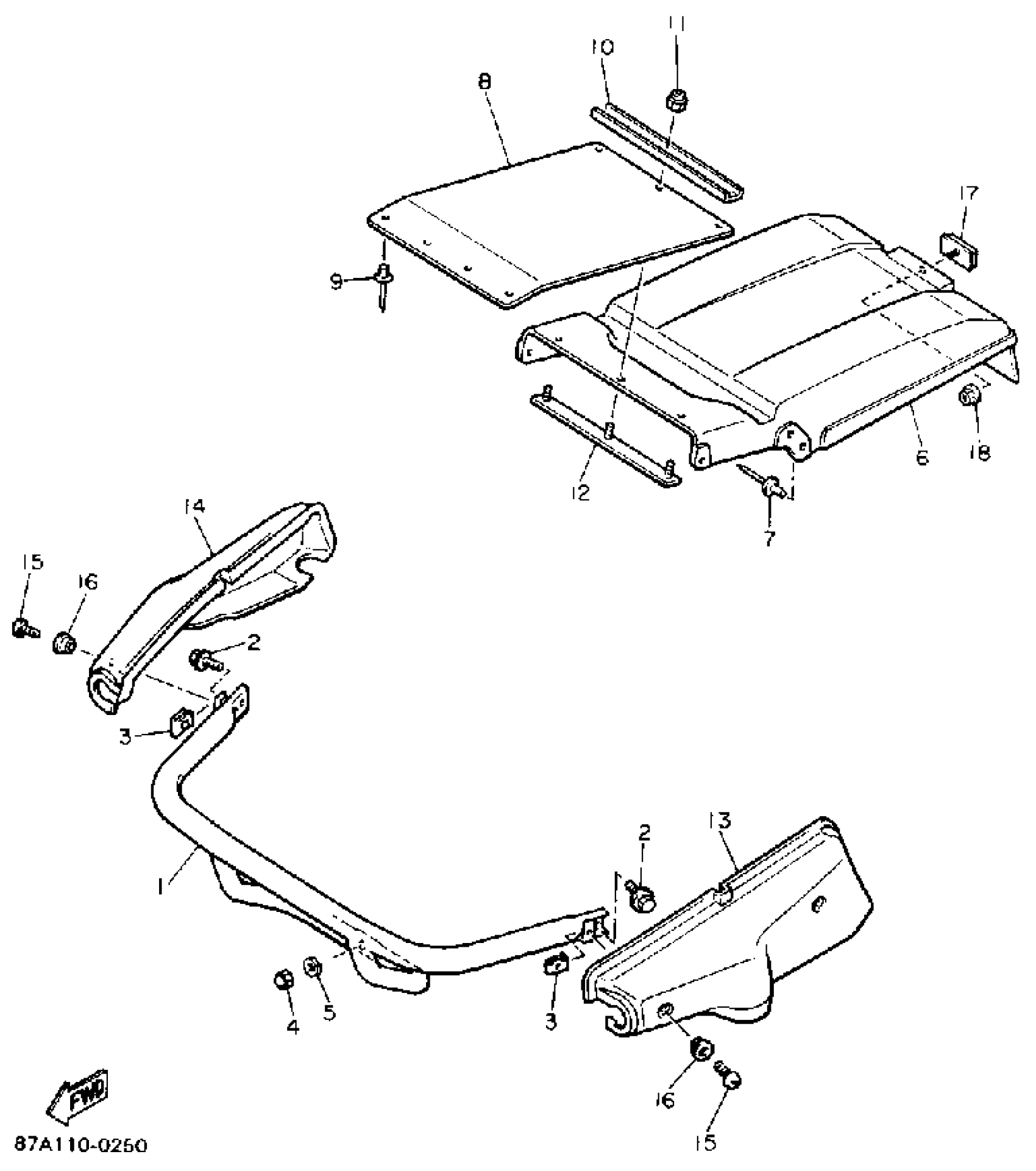

Yamaha SV125EP (SNOSPORT (ELEC START)) 1990 BUMPER Diagram

BUMPER, FRONT 1

BOLT, FLANGE(JN5)

NUT, SPRING(4ES)

NUT, CAP

WASHER(JN5)

COVER, 4

RIVET, BLIND (8L0)

FLAP

RIVET, BLIND(41R)

PLATE, FLAP 2

NUT, NYLON

STOPPER, FLAP

PROTECTOR 1

PROTECTOR 2

SCREW, BINDING

COLLAR(3FC)

REAR REFLECTOR ASSY

NUT, FLANGE(3GM)
