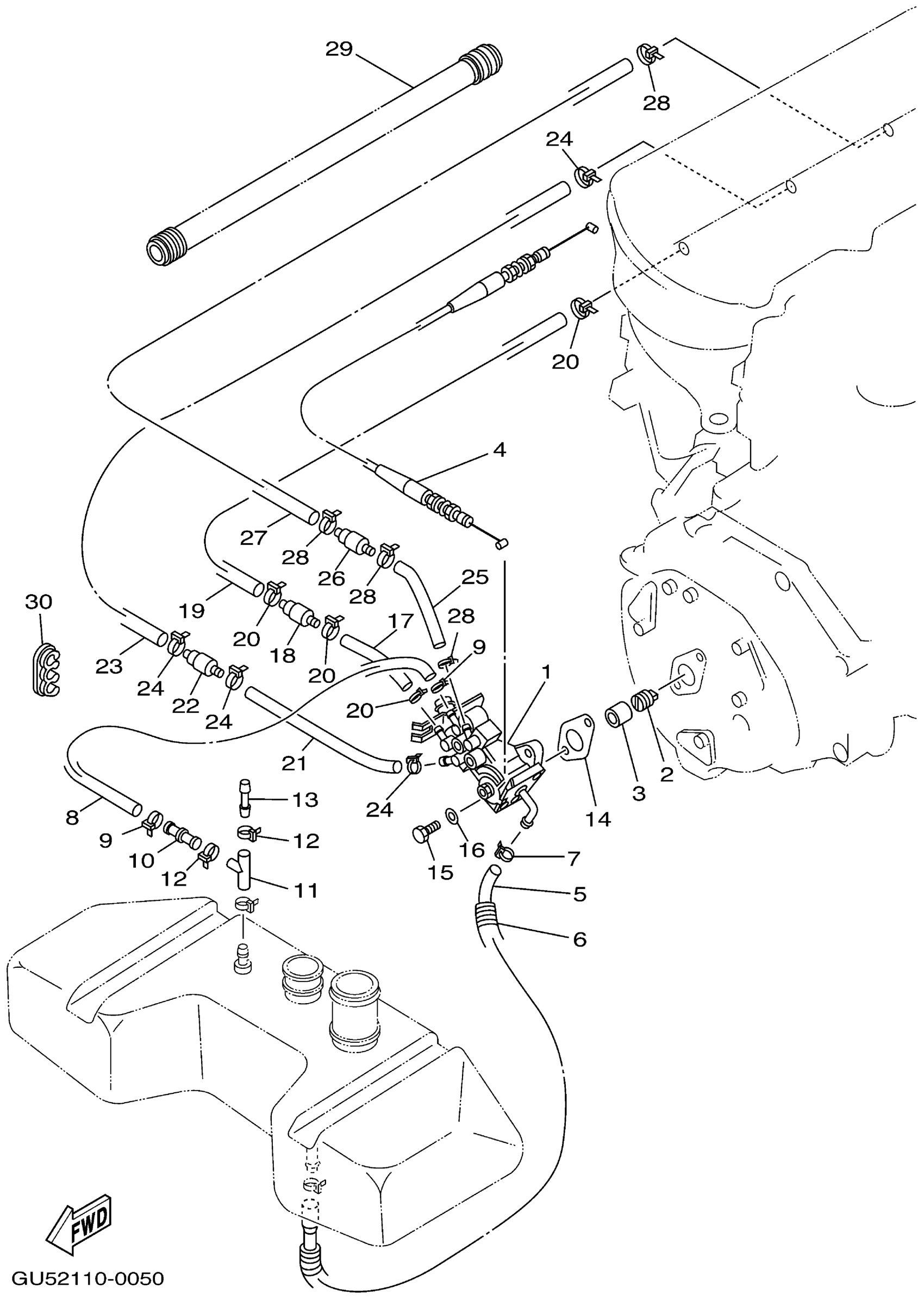

Yamaha SV1200Z (SUV1200) GU53 2001 OIL PUMP Diagram
#
1
OIL INJECTION PUMP ASSY
66G-13200-01-00
Unavailable
2
JOINT
65U-13132-00-00
Unavailable
3
RING, RUBBER
65U-13554-00-00
Unavailable
4
PUMP, CABLE ASSY
66H-26320-00-00
Unavailable
5
PIPE, OIL 1
66G-13416-00-00
Unavailable
6
HOSE
90446-17M72-00
$8.49
7
CLAMP
90465-10098-00
Unavailable
8
HOSE (L770)
90445-07006-00
Unavailable
9
CLAMP
90465-10098-00
Unavailable
10
JOINT
63M-13132-00-00
Unavailable
11
PIPE, JOINT 3
63M-24378-00-00
Unavailable
12
CLAMP
90465-10098-00
Unavailable
13
PIPE, JOINT 1
6G8-24376-00-00
Unavailable
14
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
15
BOLT(7U8)
97080-06020-00
Unavailable
16
WASHER, PLAIN (646)
92990-06600-00
Unavailable
17
HOSE(62T)
90446-07M48-00
Unavailable
18
VALVE, CHECK
6R3-13183-10-00
Unavailable
19
HOSE(62T)
90446-07M48-00
Unavailable
20
CLAMP
90465-10098-00
Unavailable
21
HOSE(62T)
90446-07M48-00
Unavailable
22
VALVE, CHECK
6R3-13183-10-00
Unavailable
23
HOSE(62T)
90446-07M48-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
HOSE(62T)
90446-07M48-00
Unavailable
26
VALVE, CHECK
6R3-13183-10-00
Unavailable
27
HOSE
90446-07M74-00
Unavailable
28
CLAMP
90465-10098-00
Unavailable
29
HOSE
90446-24M83-00
Unavailable
30
CLAMP
90464-07M05-00
Unavailable
