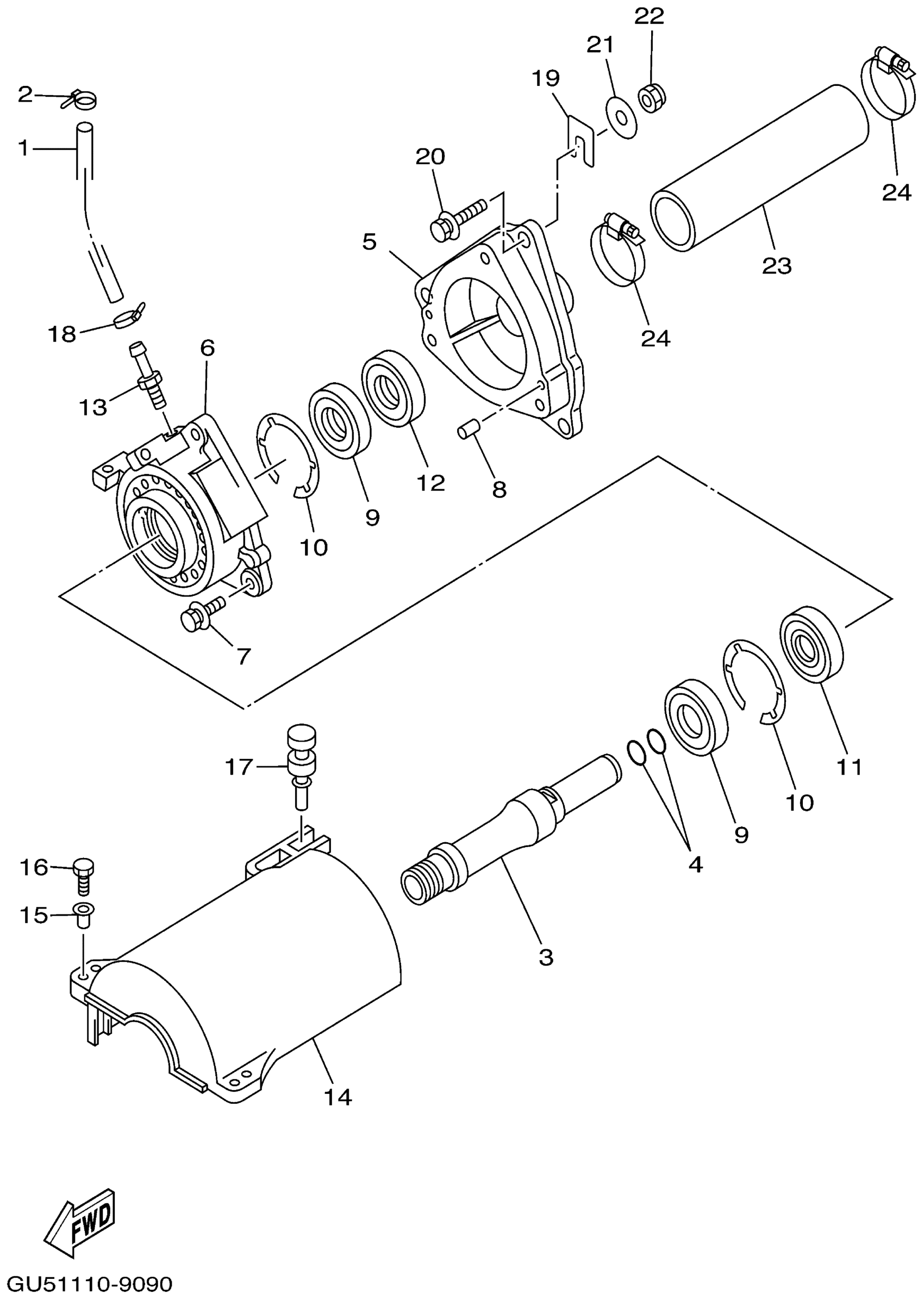

Yamaha SV1200Z (SUV1200) GU53 2001 JET UNIT 2 Diagram

#

Description
Price

1

HOSE (L445)

90445-09M21-00

$20.98

2

CLAMP

90465-10098-00

$1.68

3

SHAFT, COUPLER

66V-51323-01-00

$360.59

4

O-RING

93210-19001-00

$3.49

5

HOUSING, BEARING

66G-45331-01-00

Unavailable

6

HOUSING, BEARING

66G-45332-00-00

Unavailable

7

BOLT, WITH WASHER

90119-08841-00

$1.01

8

PIN, DOWEL (614)

93606-12019-00

$3.05

9

OIL SEAL(62T)

93101-25M55-00

$24.36

10

CIRCLIP

93430-47M04-00

$5.18

11

BEARING(62G)

93306-205U6-00

$55.29

12

OIL SEAL

93101-24001-00

$30.69

13

NIPPLE, HOSE

61L-45378-00-00

$11.35

14

COVER

64Y-51381-00-00

Unavailable

15

COLLAR

90387-06M60-00

$6.37

16

BOLT, WITH WASHER

90119-06892-00

$3.79

17

GROMMET(6R7)

90480-06M46-00

Unavailable

18

CLAMP

90465-10098-00

$1.68

19

SHIM (0.5)

GD0-U7249-00-05

$1.94

19

SHIM (0.5)

GD0-U7249-00-05

$1.94

20

BOLT, WITH WASHER

90119-08801-00

Unavailable

21

WASHER, PLATE

90201-099U1-00

$2.16

22

NUT, NYLON (6J8)

95780-08300-00

$10.55

23

PIPE, 1

GU5-U883B-00-00

Unavailable

24

BAND, HOSE 52

90601-152U3-00

$5.67
