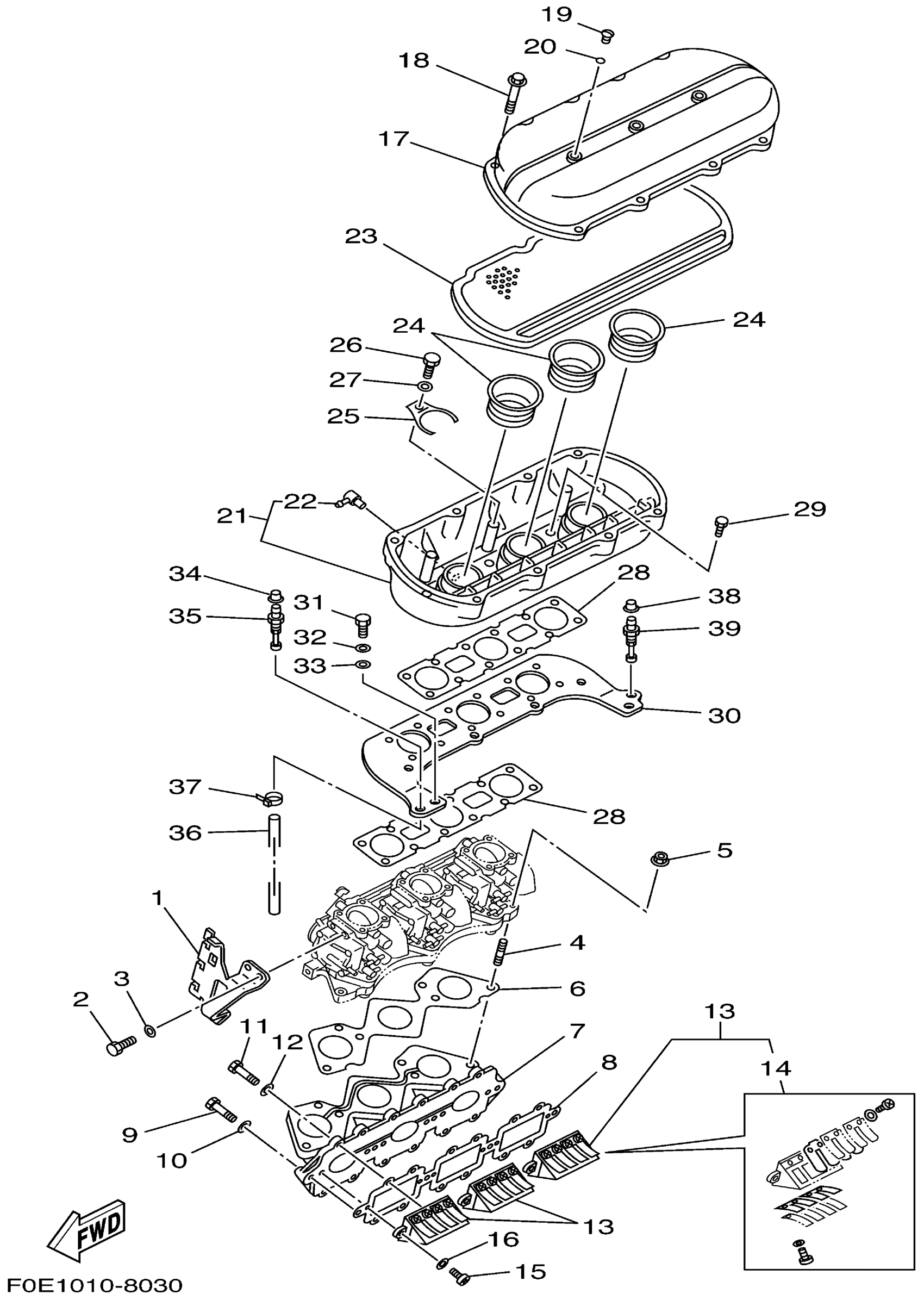

Yamaha SV1200Z (SUV1200) GU53 2001 INTAKE Diagram
#
1
PLATE
65U-14527-01-00
Unavailable
2
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
BOLT, STUD
90116-08M60-00
Unavailable
5
NUT
90179-08M15-00
Unavailable
6
GASKET
65U-13556-00-00
Unavailable
7
MANIFOLD, INTAKE
65U-13555-00-8S
Unavailable
8
GASKET
65U-13566-00-00
Unavailable
9
BOLT(3RV)
97014-06035-00
$2.75
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
BOLT(62Y)
97013-06025-00
$1.06
12
WASHER, PLAIN (646)
92990-06600-00
$2.80
13
REED VALVE ASSY
65U-13610-00-00
Unavailable
14
. REED SET
65U-W0004-00-00
Unavailable
15
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
16
WASHER, PLAIN (646)
92990-05600-00
Unavailable
17
COVER, CARBURETOR 1
65U-14283-00-00
Unavailable
18
BOLT
90109-05MA0-00
Unavailable
19
GROMMET
62T-14435-00-00
Unavailable
20
. O-RING
93210-13M63-00
Unavailable
21
COVER, CARBURETOR 2
65U-14284-02-8S
Unavailable
22
NOZZLE
6E5-13552-01-00
Unavailable
23
ELEMENT, AIR CLEANER
65U-14451-00-00
Unavailable
24
FUNNEL, AIR
65U-14469-00-00
Unavailable
25
PLATE
65U-14477-00-00
Unavailable
26
BOLT (682)
97095-05010-00
Unavailable
27
WASHER, PLAIN (646)
92990-05600-00
Unavailable
28
GASKET, AIR COOLER COVER 1
65U-13674-00-00
Unavailable
29
BOLT
90109-06M76-00
Unavailable
30
PLATE
65U-14255-00-00
Unavailable
31
BOLT, HEXAGON DEEP RECESS
97D95-06014-00
Unavailable
32
WASHER, PLAIN (646)
92990-06600-00
$2.80
33
WASHER, PLATE
90201-06M31-00
Unavailable
34
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
35
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
36
HOSE (L445)
90445-09M21-00
Unavailable
37
CLAMP
90465-10098-00
Unavailable
38
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
39
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
