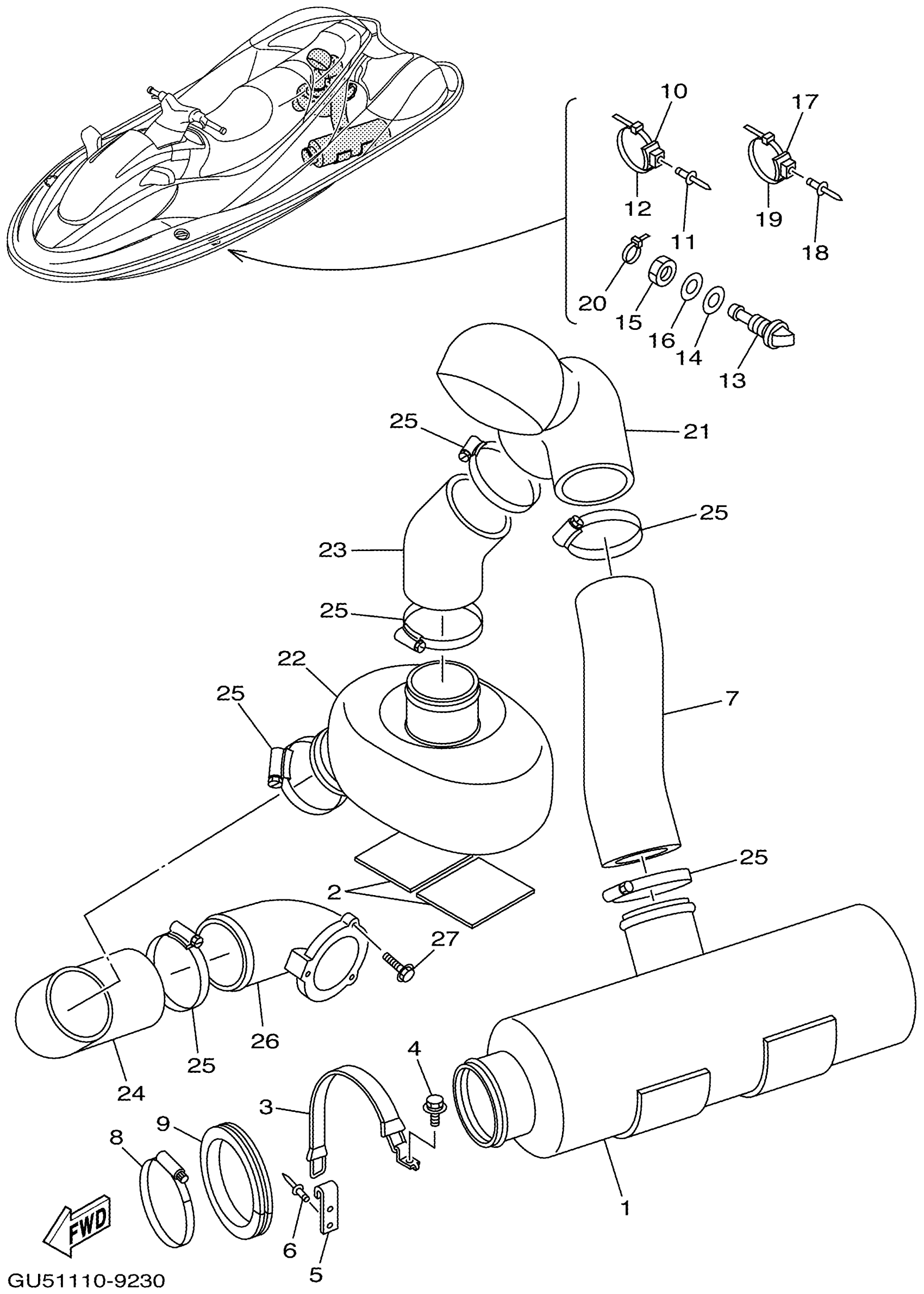

Yamaha SV1200Z (SUV1200) GU53 2001 EXHAUST 2 Diagram
#
Description
Price
1
WATER LOCK COMP.
F0D-67550-03-00
Unavailable
2
MAT,WATER LOCK
GJ3-U755J-00-00
Unavailable
3
C HOOK COMP.
GU5-U7570-00-00
Unavailable
4
BOLT, WITH WASHER
90119-06830-00
Unavailable
5
HOOK A
GA7-65772-00-00
Unavailable
6
RIVET, BLIND
90267-48802-00
Unavailable
7
HOSE, EXHAUST 1
F0D-6758B-00-00
Unavailable
8
BAND, HOSE 120
90601-B12U2-00
Unavailable
9
TRIM
GU5-U5162-00-00
Unavailable
11
RIVET, BLIND
90267-48802-00
Unavailable
12
CLAMP
90464-32801-00
Unavailable
13
PILOT, WATER
GJ1-6753B-02-00
Unavailable
14
PACKING
GP3-U1438-00-00
Unavailable
15
NUT
GP7-61652-00-00
Unavailable
16
WASHER
9299R-14200-00
Unavailable
18
RIVET, BLIND
90267-48802-00
Unavailable
19
CLAMP
90464-32801-00
Unavailable
20
CLAMP
90465-10098-00
Unavailable
21
RESONATOR, 2
F0D-6753D-01-00
Unavailable
22
TANK, WATER
F0D-64261-02-00
Unavailable
23
HOSE, EXHAUST 2
F0D-6758C-01-00
Unavailable
24
HOSE, EXHAUST 3
F0D-6758D-01-00
Unavailable
25
BAND, HOSE 95
90601-195UD-00
Unavailable
26
THRU-HULL,EXHAUST
F0D-67565-01-00
Unavailable
27
BOLT, WITH WASHER
90119-06896-00
Unavailable
