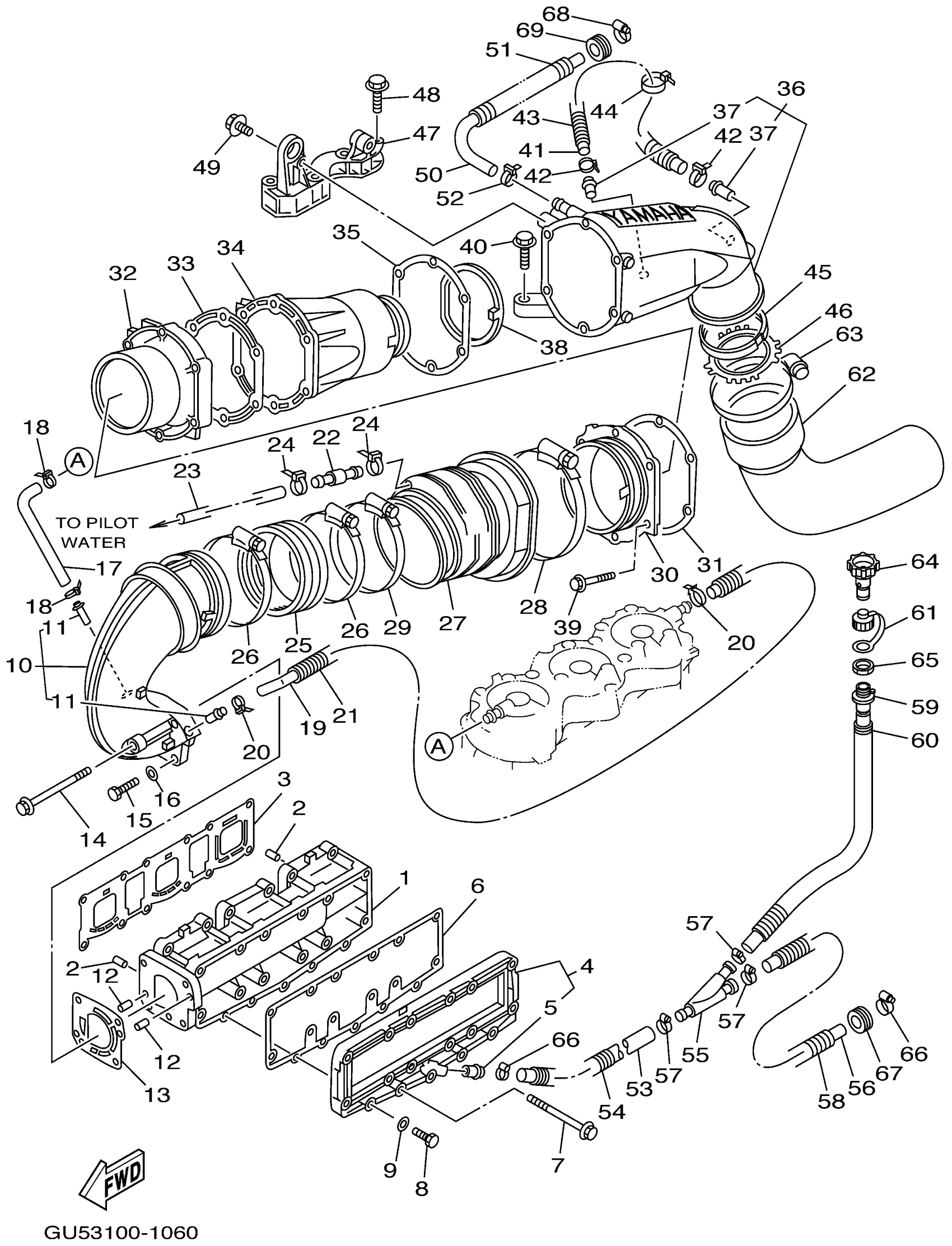

Yamaha SV1200Z (SUV1200) GU53 2001 EXHAUST 1 Diagram
#
1
MUFFLER 1
63M-14711-00-00
Unavailable
2
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
3
GASKET, EXHAUST PIPE
65U-14613-01-00
Unavailable
4
PROTECTOR, MUFFLER 1
63M-14718-00-8S
Unavailable
5
. NIPPLE
63M-51129-00-00
Unavailable
6
GASKET, MUFFLER DAMPER 1
63M-14739-00-00
Unavailable
7
BOLT, WITH WASHER
90119-08M98-00
Unavailable
8
BOLT(JF7)
97080-06030-00
$5.49
9
WASHER, PLAIN (646)
92990-06600-00
$2.80
10
RING, JOINT
63M-14712-00-00
Unavailable
11
. NIPPLE
6K8-51129-00-00
Unavailable
12
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
13
GASKET, MUFFLER DAMPER 2
63M-14749-01-00
Unavailable
14
BOLT, WITH WASHER
90119-08155-00
Unavailable
15
BOLT, HEXAGON
97013-08030-00
$2.49
16
.. WASHER, PLATE
92990-08600-00
Unavailable
17
HOSE 1
63M-12576-00-00
Unavailable
18
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
19
HOSE 2
63M-12577-00-00
Unavailable
20
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
21
HOSE
90446-20M53-00
Unavailable
22
PIPE, JOINT 2
6R3-24377-00-00
Unavailable
23
HOSE (L1300)
90445-14M22-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
JOINT, EXHAUST 2
62T-14625-00-00
Unavailable
26
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
27
JOINT, EXHAUST 1
63M-14615-00-00
Unavailable
28
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
29
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
30
OUTER COVER, EXHAUST
63M-41113-00-8S
Unavailable
31
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
32
MUFFLER 2
63M-14721-00-8S
Unavailable
33
GASKET, EXHAUST INNER COVER
63M-41122-00-00
Unavailable
34
INNER COVER,EXHAUST
63M-41121-00-8S
Unavailable
35
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
36
OUTER COVER, EXHAUST
63M-41123-00-8S
Unavailable
37
. NIPPLE
6K8-51129-00-00
Unavailable
38
SEAL, RUBBER 1
63M-15761-00-00
Unavailable
39
BOLT, FLANGE
90105-08M66-00
Unavailable
40
BOLT, FLANGE
90105-10M60-00
Unavailable
41
HOSE (L240)
90445-14M05-00
Unavailable
42
CLAMP
90465-10098-00
Unavailable
43
HOSE
90446-20M39-00
Unavailable
44
BAND, SWITCH CORD
437-83936-11-00
Unavailable
45
SEAL, EXT 1
63M-41138-00-00
Unavailable
46
STOPPER
63M-14680-00-00
Unavailable
47
STAY, MUFFLER 1
63M-14771-00-00
Unavailable
48
BOLT, WITH WASHER
90119-10M17-00
Unavailable
49
BOLT, FLANGE
90105-10M88-00
Unavailable
50
HOSE 3
66G-12578-00-00
Unavailable
51
HOSE
90446-30ME9-00
Unavailable
52
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
53
HOSE (L350)
90445-18M13-00
Unavailable
54
HOSE
90446-24M83-00
Unavailable
55
JOINT, HOSE 1
63M-12581-00-00
Unavailable
56
HOSE
90445-18M16-00
Unavailable
57
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
58
HOSE (L420)
90446-24M89-00
Unavailable
59
JOINT ASSY
64T-12580-00-00
Unavailable
60
HOSE (L420)
90446-24M89-00
Unavailable
61
CAP,1
682-84385-01-00
Unavailable
62
PIPE, OUTLET
66G-14752-00-00
Unavailable
63
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
64
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
65
NUT
EU0-61652-00-00
Unavailable
66
BAND, HOSE 18
90601-118UF-00
Unavailable
67
GROMMET
90480-329U2-00
Unavailable
68
BAND, HOSE 18
90601-118UF-00
Unavailable
69
GROMMET
90480-329U2-00
Unavailable
