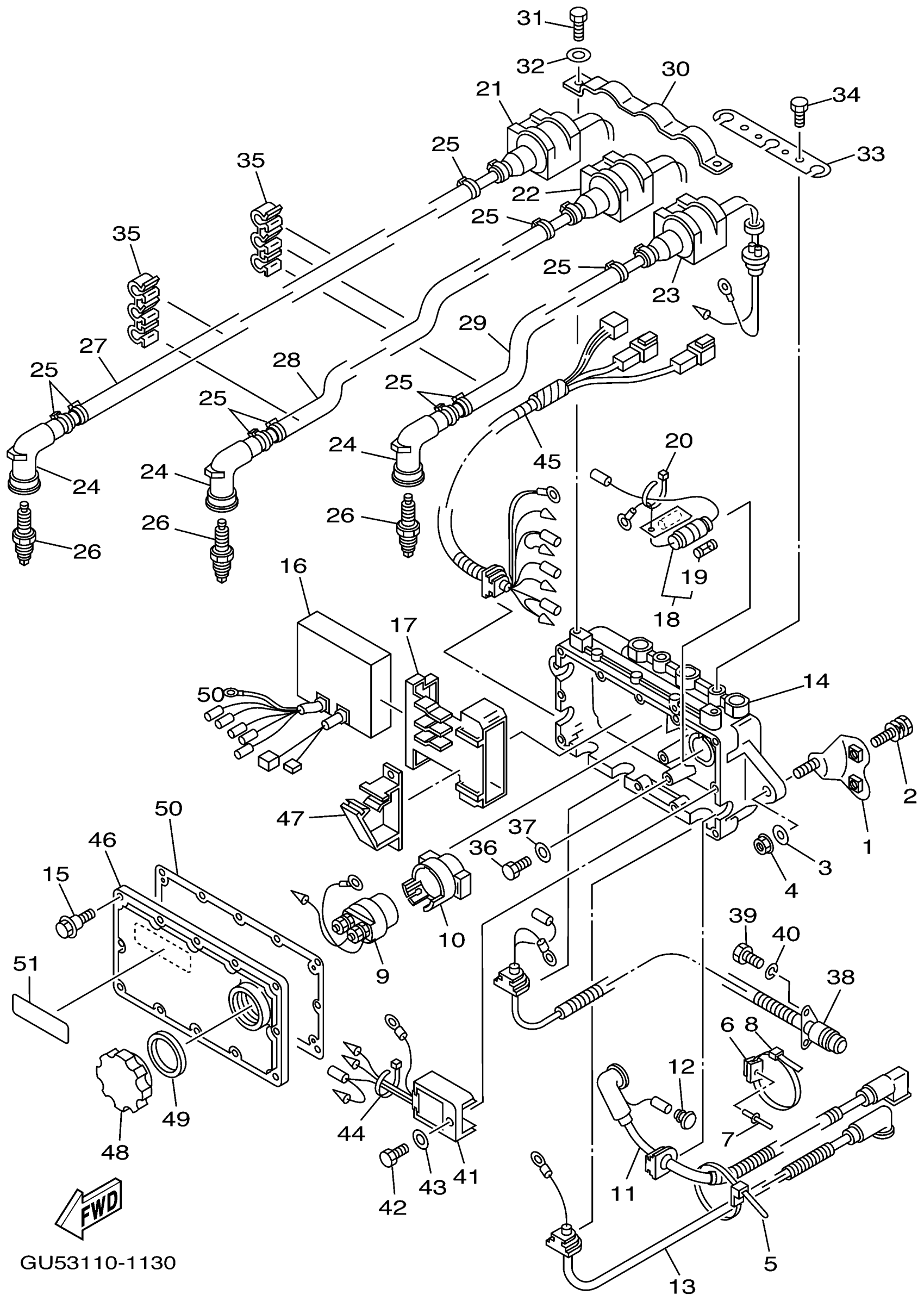

Yamaha SV1200Z (SUV1200) GU53 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

F0E-6815D-00-00

Unavailable

2

BOLT,WITH WASHER

90119-06940-00

Unavailable

3

WASHER

9299R-08200-00

$2.29

4

NUT, NYLON (6J8)

95780-08300-00

Unavailable

5

CLAMP

90464-32801-00

Unavailable

6

CLAMP COMP (EU0)

90600-91736-00

$8.49

7

RIVET, BLIND

90267-48802-00

Unavailable

8

CLAMP

90464-32801-00

Unavailable

9

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

10

HOLDER, RELAY

6M6-81952-01-00

Unavailable

11

WIRE, LEAD

61L-82117-10-00

Unavailable

12

. COVER, LEAD WIRE

703-82119-00-00

Unavailable

13

WIRE, LEAD

62E-82117-20-00

Unavailable

14

HOUSING

65U-8552A-00-94

Unavailable

15

BOLT

90109-05MA0-00

$7.49

16

C.D.I. UNIT

65U-85540-00-00

Unavailable

17

BAND

65U-85546-00-00

Unavailable

18

FUSE HOLDER ASSY

65U-82150-00-00

Unavailable

19

FUSE (10A)

1E6-82151-00-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

IGNITION COIL ASSY

65U-85570-00-00

Unavailable

22

IGNITION COIL ASSY

66G-85570-10-00

Unavailable

23

IGNITION COIL ASSY

66G-85570-20-00

Unavailable

24

PLUG CAP ASSY

63M-82370-01-00

Unavailable

25

CLAMP

90465-10098-00

Unavailable

26

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

27

TUBE, CORD

63M-82351-00-00

Unavailable

28

TUBE, CORD

63M-82351-00-00

Unavailable

29

TUBE, CORD

66G-82351-00-00

Unavailable

30

BRACKET

65U-85542-00-00

Unavailable

31

BOLT, HEXAGON DEEP RECESS

97D95-08016-00

Unavailable

32

.. WASHER, PLATE

92990-08600-00

Unavailable

33

COVER

65U-85525-00-00

Unavailable

34

BOLT(GH1)

97080-06012-00

Unavailable

35

CLAMP, CORD

65U-81317-10-00

Unavailable

36

BOLT(GH1)

97080-06012-00

Unavailable

37

WASHER, PLAIN (646)

92990-06600-00

Unavailable

38

THERMOSWITCH ASSEMBLY

65U-82560-00-00

Unavailable

39

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable

41

RECTIFIER & REGULATOR ASSY

6H2-81960-00-00

Unavailable

42

BOLT(7U8)

97080-06020-00

Unavailable

43

WASHER, PLAIN (646)

92990-06600-00

Unavailable

44

CLAMP

90465-10098-00

Unavailable

45

EXTENSION, WIRE LEAD

66G-82553-00-00

Unavailable

46

COVER, CASE

65U-8552E-00-00

Unavailable

47

CLAMP

90464-06M29-00

Unavailable

48

CAP

6M6-8132W-00-00

Unavailable

49

GASKET

6M6-81844-00-00

Unavailable

50

GASKET, TERMINAL

65U-81921-00-00

Unavailable

51

MARK 3

6R7-83623-40-00

Unavailable
