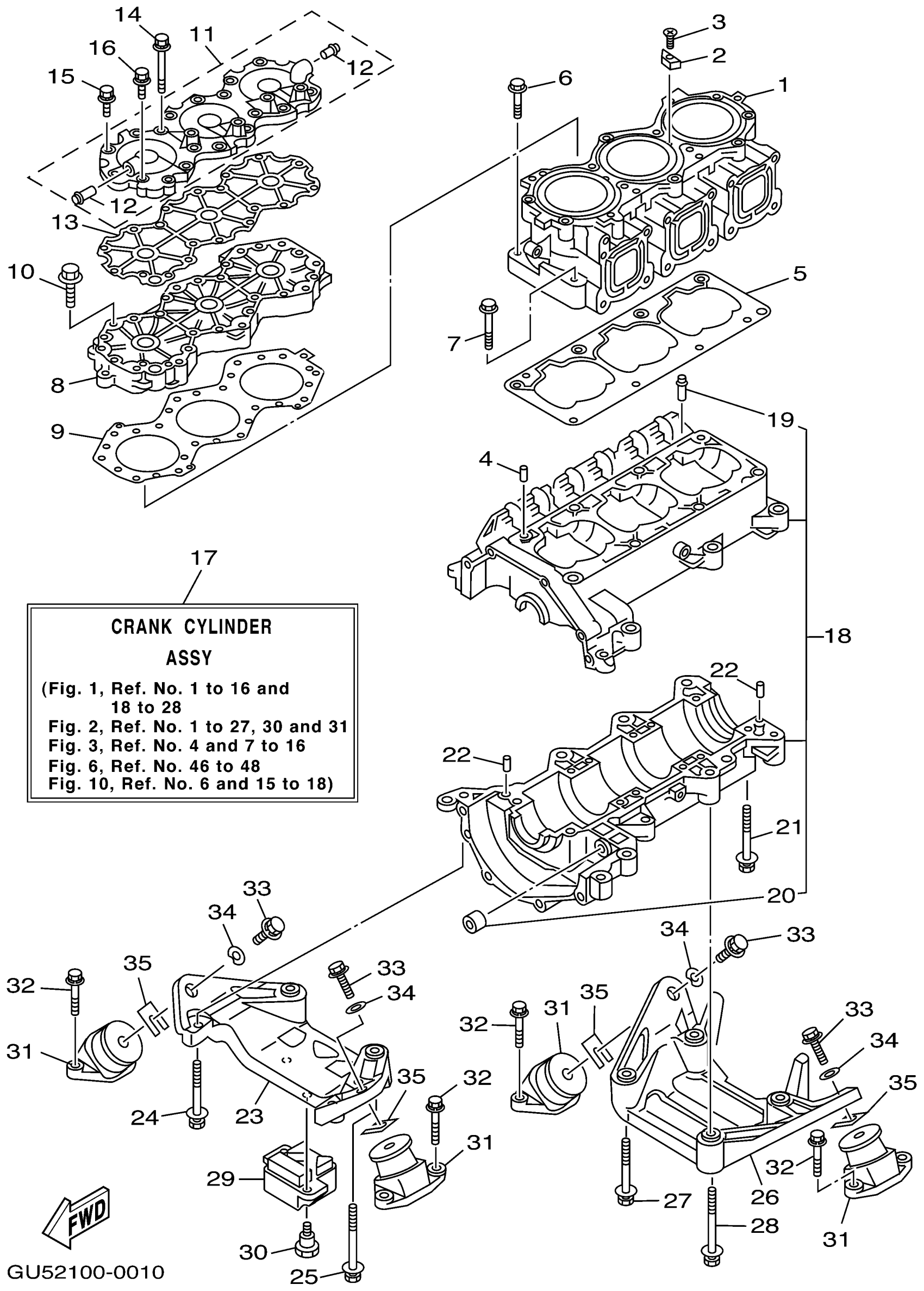

Yamaha SV1200Z (SUV1200) GU53 2001 CYLINDER. CRANKCASE Diagram

#

Description
Price

1

CYLINDER 1

65U-11311-00-8S

$1,337.86

2

ANODE

6E5-11325-00-00

$4.08

3

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

4

PIN, DOWEL (614)

93606-12019-00

$3.05

5

GASKET, CYLINDER

63M-11351-01-00

$31.57

6

BOLT, WITH WASHER

90119-10M56-00

$10.24

7

BOLT (6F5)

90119-10M07-00

$4.21

8

HEAD, CYLINDER 1

65U-11111-00-8S

Unavailable

9

GASKET, CYLINDER HEAD 1

65U-11181-01-00

$125.74

10

BOLT, WITH WASHER

90119-08M96-00

$2.95

11

COVER, CYLINDER HEAD 1

63M-11191-00-8S

Unavailable

12

. NIPPLE

6K8-51129-00-00

$9.62

13

GASKET, HEAD COVER 1

63M-11193-01-00

$53.99

14

BOLT, WITH WASHER

90119-08015-00

$2.79

15

BOLT, WITH WASHER

90119-08M97-00

Unavailable

16

BOLT, W/WASHER

97513-06630-00

Unavailable

17

CRANK CYLINDER ASSY

65U-W0090-03-8S

Unavailable

18

CRANKCASE ASSY

65U-15100-00-00

$1,110.59

19

NIPPLE

62T-14251-10-00

$4.51

20

. BUSH, SOLID

90380-12M29-00

Unavailable

21

BOLT, WITH WASHER

90119-08M55-00

$2.95

22

PIN, DOWEL (614)

93606-12019-00

$3.05

23

BRACKET, FRONT UPPER 1

63M-21415-03-00

$366.65

24

BOLT, WITH WASHER

90119-10M23-00

$10.24

25

BOLT, WITH WASHER

90119-10M17-00

$9.08

26

BRACKET, REAR UPPER 1

63M-21425-01-00

$313.62

27

BOLT, WITH WASHER

90119-10M23-00

$10.24

28

BOLT, WITH WASHER

90119-10M03-00

$9.08

29

STOPPER, UPPER MOUNT

66G-44532-00-00

Unavailable

30

BOLT

90109-06M98-00

Unavailable

31

MOUNT RUBBER

63M-44517-01-94

$96.95

32

BOLT, WITH WASHER

90119-08907-00

$5.45

33

BOLT, WITH WASHER

90119-08856-00

$5.17

34

WASHER, PLATE

90201-099U3-00

$2.16

35

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

35

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

35

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

35

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

35

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
