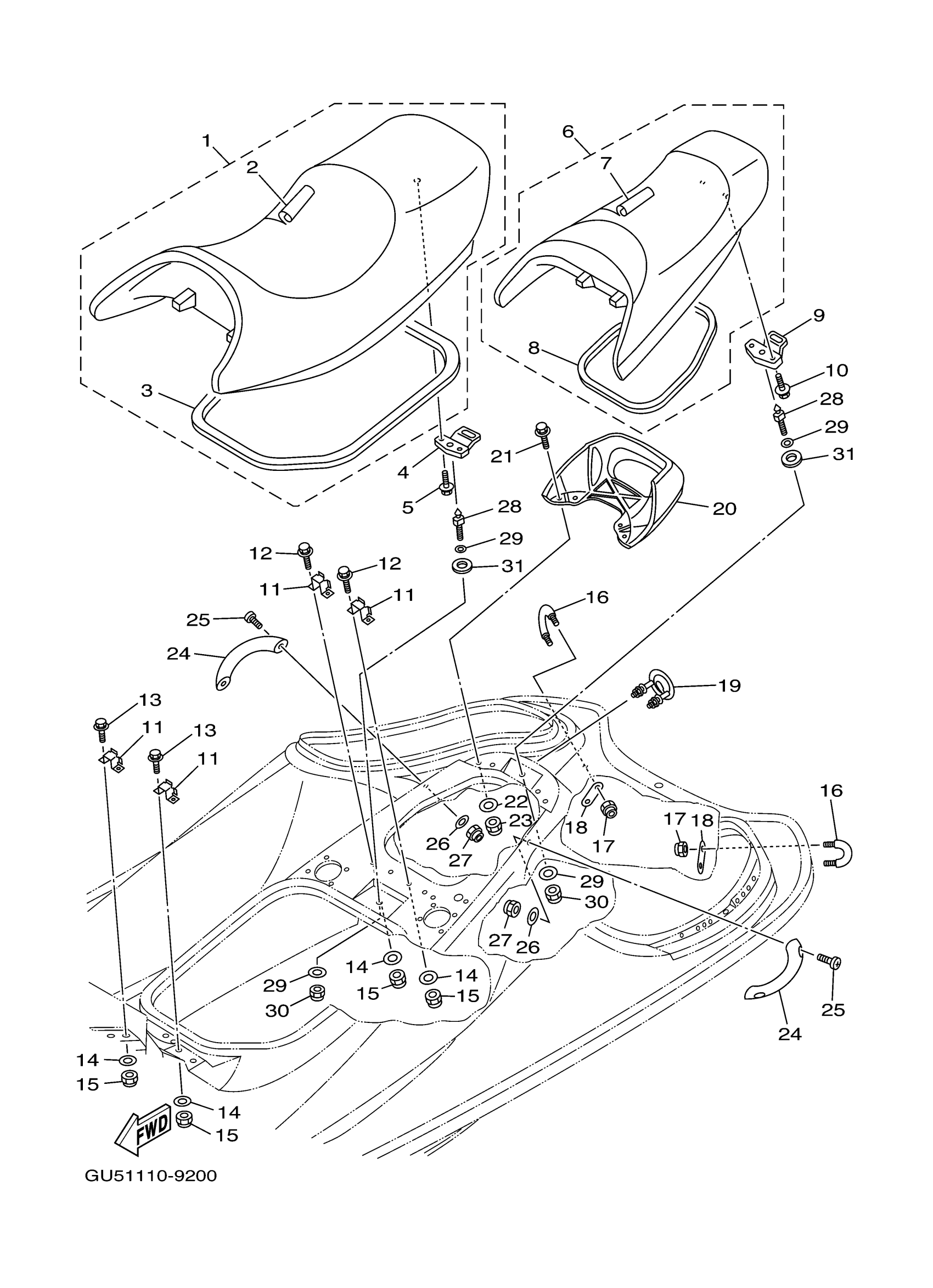

Yamaha SV1200Y (SUV1200) GU52 2000 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

GU5-U371A-10-00

Unavailable

2

. COVER, SEAT 1

GU5-U371B-10-00

Unavailable

3

. PACKING

GU5-U2664-00-00

Unavailable

4

SEAT LOCK ASSY

F0D-63850-01-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

SINGLE SEAT ASSEMBLY

GU5-U372A-10-00

Unavailable

7

. COVER, SEAT

GU5-U372B-10-00

Unavailable

8

. PACKING 3

GU5-U266B-00-00

Unavailable

9

SEAT LOCK ASSY

F0D-63850-01-00

Unavailable

10

BOLT, WITH WASHER

90119-06808-00

Unavailable

11

STAY, SEAT 2

GU5-6378D-00-00

Unavailable

12

BOLT, WITH WASHER

90119-06803-00

Unavailable

13

BOLT, WITH WASHER

90119-06824-00

Unavailable

14

WASHER

9299R-06200-00

Unavailable

15

NUT, NYLON

9572R-06300-00

Unavailable

16

STERN EYE (BLACK)

F1K-61628-00-00

Unavailable

17

NUT, NYLON (6J8)

95780-08300-00

Unavailable

18

WASHER, PLATE

90201-08800-00

Unavailable

19

SKI EYE

GP1-U1629-00-00

Unavailable

20

GRIP, HAND

F0D-U271B-00-00

Unavailable

21

BOLT, WITH WASHER

90119-06820-00

Unavailable

22

WASHER

9299R-06200-00

Unavailable

23

NUT, NYLON

9572R-06300-00

Unavailable

24

GRIP, HAND

F0R-U271B-00-00

Unavailable

25

SCREW, BIND(J39)

98980-06030-00

Unavailable

26

WASHER, PLATE

90201-06020-00

Unavailable

27

NUT, NYLON

9572R-06300-00

Unavailable

28

PIN

GH1-U3774-00-00

Unavailable

29

WASHER

9299R-10200-00

Unavailable

30

NUT, NYLON

9572R-10300-00

Unavailable

31

TAPE

GJ3-U5578-00-00

Unavailable
