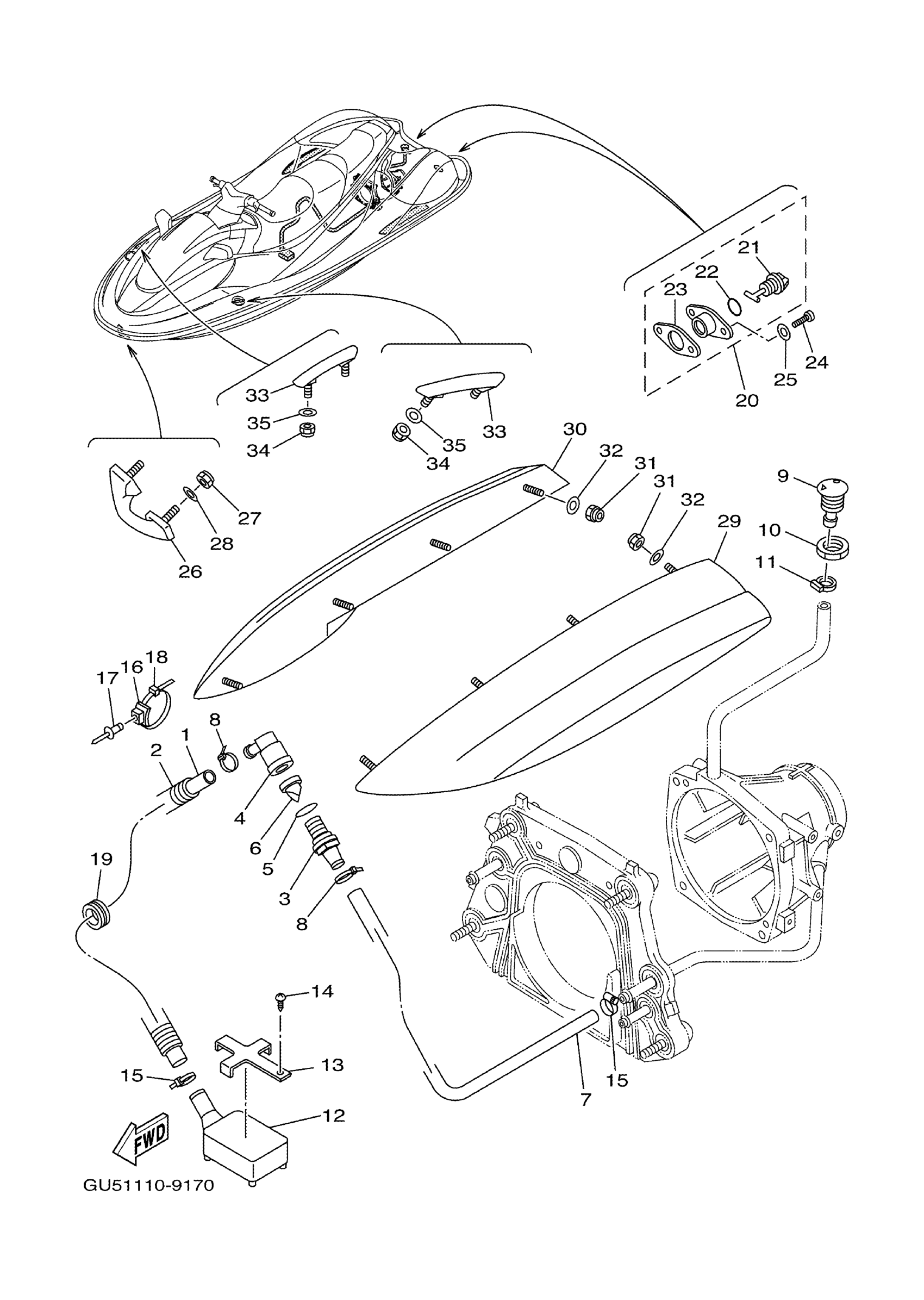

Yamaha SV1200Y (SUV1200) GU52 2000 HULL DECK Diagram
#
1
HOSE
90445-19M01-00
Unavailable
2
HOSE (L650)
90446-27MA4-00
Unavailable
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
JOINT, HOSE 2
63M-51165-00-00
Unavailable
5
O-RING
93210-22ME5-00
Unavailable
6
VALVE 1
63M-5316M-00-00
Unavailable
7
HOSE
90445-19M01-00
Unavailable
8
CLAMP (6E5)
90465-13M11-00
$8.49
9
SPOUT
FN8-6269B-00-00
Unavailable
10
NUT
EU0-61652-00-00
Unavailable
11
CLIP
90600-91755-00
Unavailable
12
STRAINER, BILGE
GD0-U761D-00-00
Unavailable
13
BASE
FJ0-67618-00-00
Unavailable
14
SCREW, TAPPING
9778R-50112-00
Unavailable
15
BAND
90601-200U1-00
Unavailable
16
CLAMP COMP (EU0)
90600-91736-00
Unavailable
17
RIVET, BLIND
90267-489UE-00
Unavailable
18
CLAMP
90464-32801-00
Unavailable
19
GROMMET
90480-329U2-00
Unavailable
20
DRAIN PLUG ASSY
EU0-62280-00-00
Unavailable
21
. PLUG, DRAIN
EU0-62282-00-00
Unavailable
22
. O-RING
EU0-62283-00-00
Unavailable
23
. PACKING DRAIN (EU0)
EU0-62285-01-00
Unavailable
24
SCREW, TAPPING
97780-50620-00
Unavailable
25
WASHER
9299R-05200-00
Unavailable
26
BOW EYE 1
GU5-61624-00-00
Unavailable
27
NUT, NYLON (6J8)
95780-08300-00
Unavailable
28
WASHER, PLATE
90201-08800-00
Unavailable
29
STABILIZER LH
GU5-6883N-00-00
Unavailable
30
STABILIZER RH
GU5-6883P-00-00
Unavailable
31
NUT, NYLON
9572R-06300-00
Unavailable
32
WASHER, PLATE
90201-06808-00
Unavailable
33
DECK EYE
GU5-61685-01-00
Unavailable
34
NUT, NYLON (6J8)
95780-08300-00
Unavailable
35
WASHER
9299R-08200-00
Unavailable
