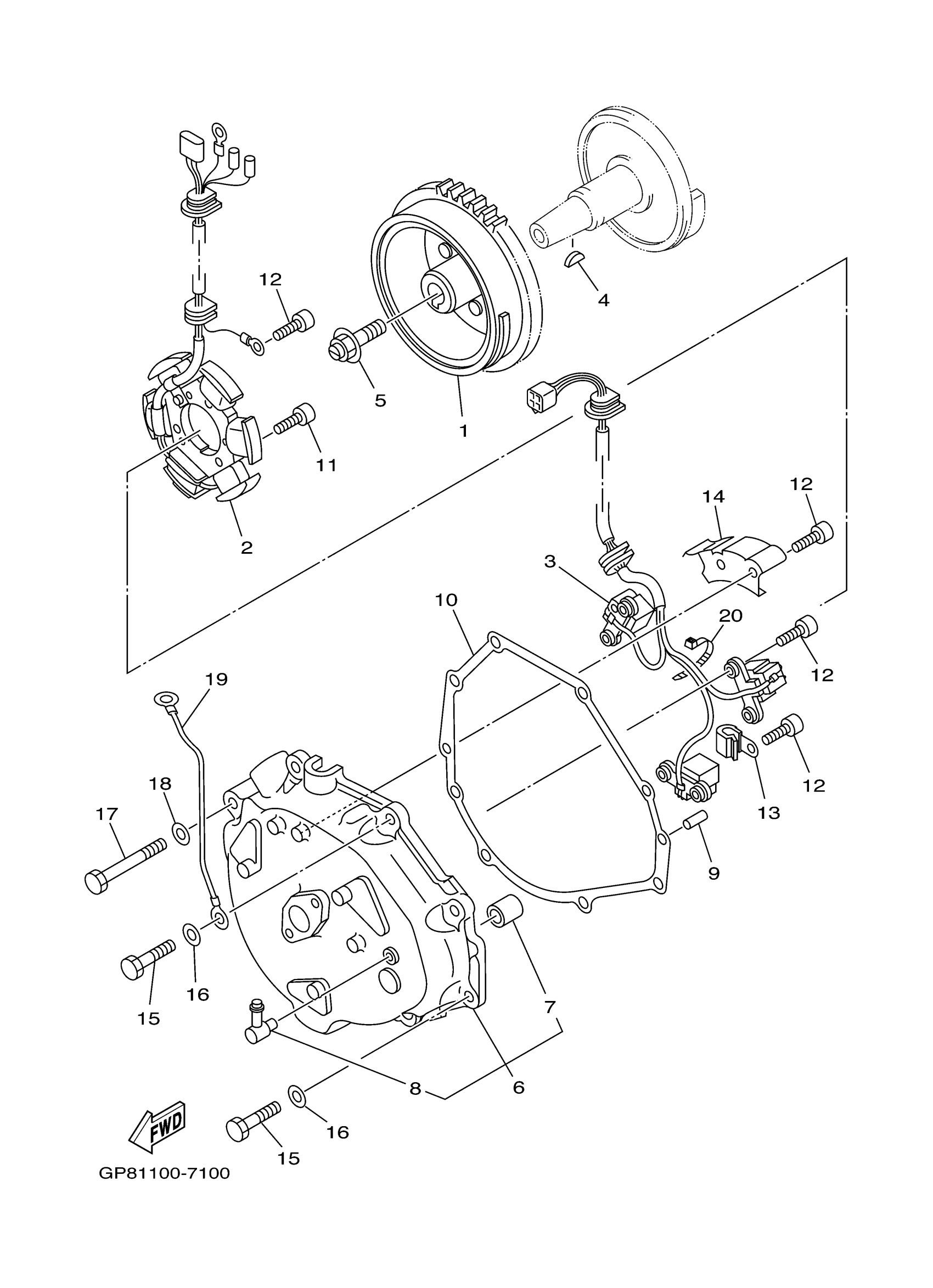

Yamaha SV1200Y (SUV1200) GU52 2000 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

65U-85550-01-00

Unavailable

2

STATOR ASSY

65U-85510-01-00

Unavailable

3

COIL, PULSER

65U-85580-00-00

Unavailable

4

KEY, WOODRUFF

90280-05001-00

$12.49

5

BOLT(63M)

90109-10M72-00

Unavailable

6

COVER, FLYWHEEL

65U-81337-00-8S

Unavailable

7

. BUSH, SOLID

90380-12M29-00

Unavailable

8

. NIPPLE, HOSE

676-11372-00-00

Unavailable

9

PIN, DOWEL (614)

93606-12019-00

$4.24

10

GASKET, HOLE COVER

63M-81365-00-00

Unavailable

11

BOLT,SOCKET

91317-06025-00

$5.60

12

BOLT,SOCKET

91318-06014-00

$0.38

13

CLAMP

90465-06M67-00

Unavailable

14

CLAMP

65U-81328-00-00

Unavailable

15

BOLT, HEXAGON (FJ1)

97080-08030-00

Unavailable

16

.. WASHER, PLATE

92990-08600-00

Unavailable

17

BOLT, HEXAGON

97095-08055-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

WIRE LEAD

6H5-82117-00-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable
