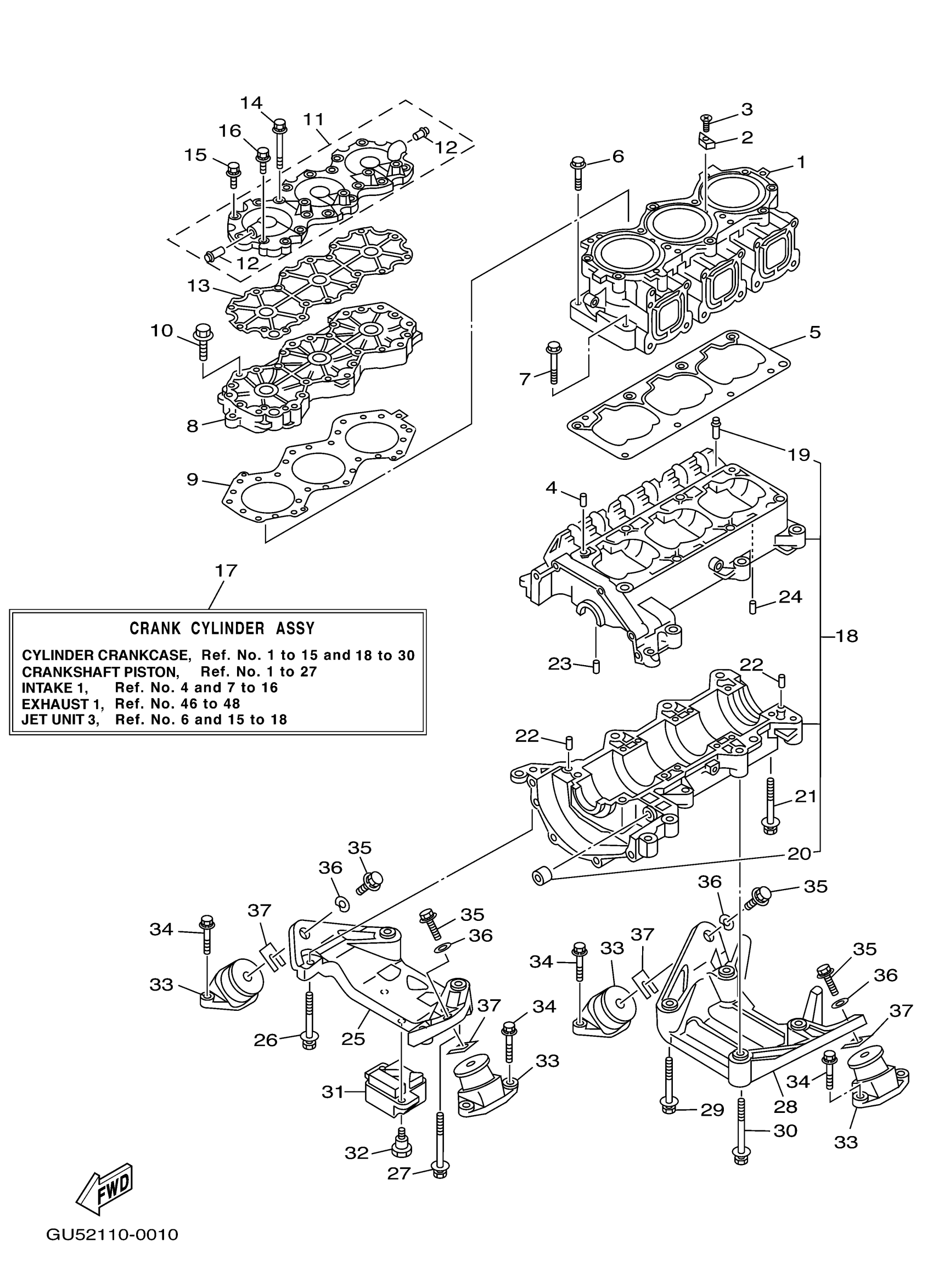

Yamaha SV1200Y (SUV1200) GU52 2000 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CYLINDER 1

65U-11311-00-8S

Unavailable

2

ANODE

6E5-11325-00-00

Unavailable

3

SCREW, FLAT HEAD(GA5)

98780-04014-00

$3.29

4

PIN, DOWEL (614)

93606-12019-00

$4.24

5

GASKET, CYLINDER

63M-11351-01-00

Unavailable

6

BOLT, WITH WASHER

90119-10M56-00

Unavailable

7

BOLT (6F5)

90119-10M07-00

$4.82

8

HEAD, CYLINDER 1

65U-11111-00-8S

Unavailable

9

GASKET, CYLINDER HEAD 1

65U-11181-01-00

Unavailable

10

BOLT, WITH WASHER

90119-08M96-00

Unavailable

11

COVER, CYLINDER HEAD 1

63M-11191-00-8S

Unavailable

12

. NIPPLE

6K8-51129-00-00

Unavailable

13

GASKET, HEAD COVER 1

63M-11193-01-00

Unavailable

14

BOLT, WITH WASHER

90119-08015-00

Unavailable

15

BOLT, WITH WASHER

90119-08M97-00

Unavailable

16

BOLT, W/WASHER

97513-06630-00

Unavailable

17

CRANK CYLINDER ASSY

65U-W0090-03-8S

Unavailable

18

CRANKCASE ASSY

65U-15100-00-00

Unavailable

19

NIPPLE

62T-14251-10-00

Unavailable

20

. BUSH, SOLID

90380-12M29-00

Unavailable

21

BOLT, WITH WASHER

90119-08M55-00

Unavailable

22

PIN, DOWEL (614)

93606-12019-00

$4.24

23

PIN (2H7)

93603-10049-00

Unavailable

24

PIN, DOWEL (8H1)

93604-07141-00

Unavailable

25

BRACKET, FRONT UPPER 1

63M-21415-03-00

Unavailable

26

BOLT, WITH WASHER

90119-10M23-00

Unavailable

27

BOLT, WITH WASHER

90119-10M17-00

Unavailable

28

BRACKET, REAR UPPER 1

63M-21425-01-00

Unavailable

29

BOLT, WITH WASHER

90119-10M23-00

Unavailable

30

BOLT, WITH WASHER

90119-10M03-00

Unavailable

31

STOPPER, UPPER MOUNT

66G-44532-00-00

Unavailable

32

BOLT

90109-06M98-00

Unavailable

33

MOUNT RUBBER

63M-44517-01-94

Unavailable

34

BOLT, WITH WASHER

90119-08907-00

Unavailable

35

BOLT, WITH WASHER

90119-08856-00

Unavailable

36

WASHER, PLATE

90201-099U3-00

Unavailable

37

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

37

SHIM (T=0.3)

EU0-67354-B0-00

Unavailable

37

SHIM (T=0.5)

EU0-67354-C0-00

Unavailable

37

SHIM (T=1.0)

EU0-67354-D0-00

Unavailable

37

SHIM (T=2.0)

EU0-67354-E0-00

Unavailable

37

SHIM (T=3.0)

EU0-U7354-00-30

Unavailable
