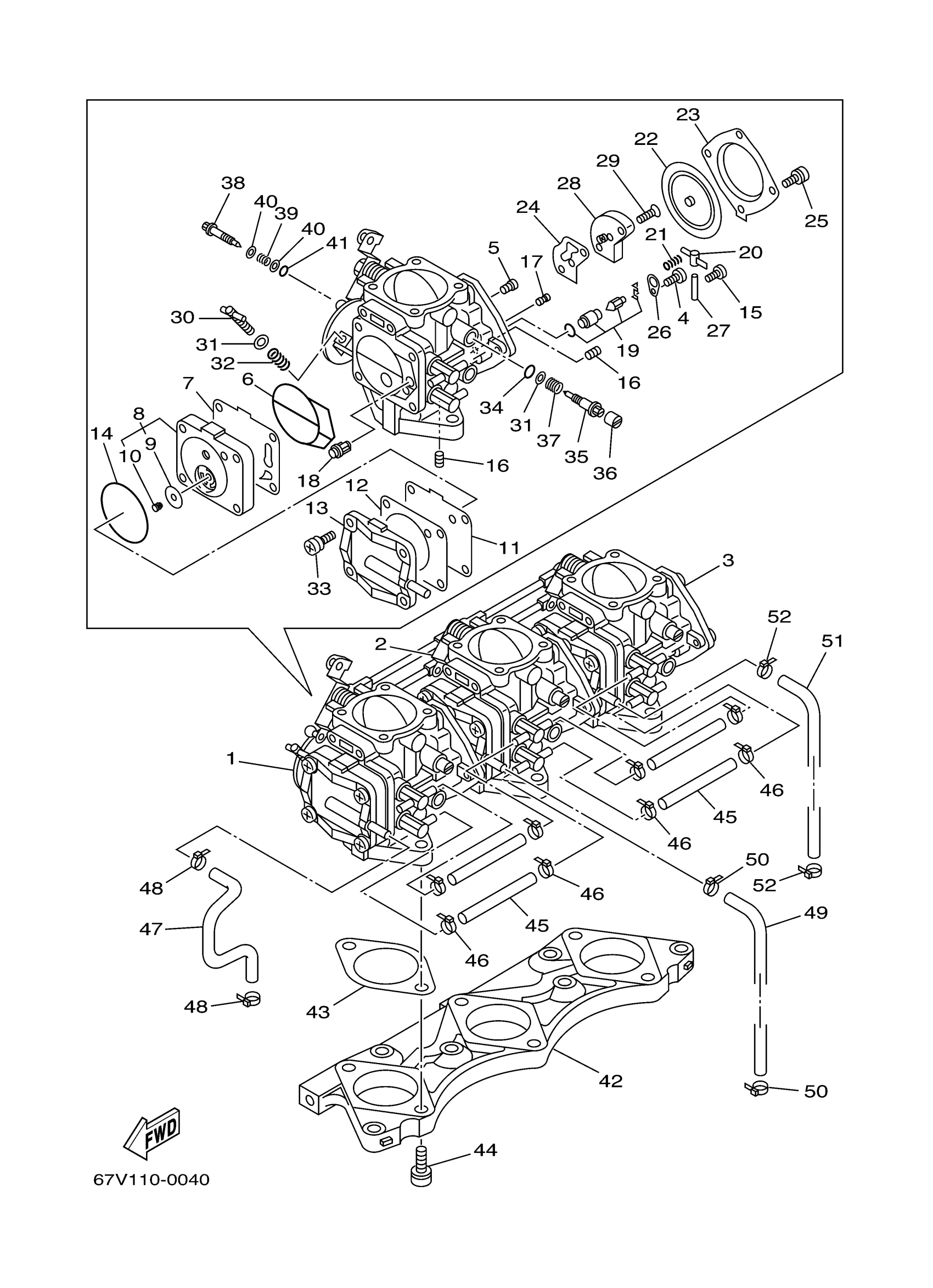

Yamaha SV1200Y (SUV1200) GU52 2000 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

66G-14301-02-00

Unavailable

2

CARBURETOR ASSY 2

66G-14302-01-00

Unavailable

3

CARBURETOR ASSY 3

66G-14303-01-00

Unavailable

4

. SCREW

6M6-14503-00-00

$5.69

5

JET, MAIN (#135)

3G2-14231-27-00

$9.88

6

. O-RING

6K8-14564-00-00

$8.73

7

. DIAPHRAGM

6K8-24411-20-00

$30.39

8

BODY 2

6M6-24413-02-00

$44.50

9

.. VALVE, CHECK

65U-24421-00-00

$12.15

10

.. BUSH, FUEL PUMP

65U-24492-00-00

$15.95

11

. VALVE, CHECK

6K8-24421-10-00

$25.07

12

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$13.99

13

. COVER

6K8-24452-10-00

$8.94

14

. O-RING

6K8-14563-00-00

Unavailable

15

. SCREW

6K8-14503-02-00

Unavailable

16

. SCREW

6K8-14521-10-00

$34.31

17

JET, MAIN (# 95)

830-14231-19-00

Unavailable

17

JET, MAIN (#100)

830-14231-20-00

Unavailable

17

JET,MAIN #97.5

830-1423A-70-00

Unavailable

18

. STRAINER

6R7-14569-00-00

$11.77

19

NEEDLE

64T-14916-01-00

$47.39

20

. ARM, FLOAT

6K8-14547-01-00

$7.89

21

. SPRING

63M-14253-00-00

Unavailable

22

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

23

. BODY, PUMP 1

6R7-14542-00-00

$55.21

24

. GASKET

6K8-14536-11-00

$8.35

25

. SCREW

6K8-14591-10-00

$4.78

26

. PLATE

6K8-14527-11-00

Unavailable

27

. PIN, FLOAT

439-14186-00-00

$12.49

28

. BODY 1

6R7-24412-01-00

$22.97

29

SCREW, STOP

6K8-14523-12-00

Unavailable

30

. SCREW, ADJUST

6M6-14521-10-00

Unavailable

31

WASHER,NEEDLE

812-14235-00-00

$2.44

32

. SPRING, THROTTLE STOP

47X-14133-00-00

$3.13

33

SCREW, WITH WASHER(61B)

97985-05330-00

$2.80

34

. O-RING

6K8-14562-00-00

$1.78

35

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.09

36

. CAP, CARBURETOR

6K8-14471-10-00

$8.17

37

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

38

. SCREW, PILOT

65U-14923-10-00

$13.99

39

. SPRING

6K8-14589-00-00

$3.79

40

WASHER, NEEDLE

822-14235-00-00

Unavailable

41

O-RING

583-14561-00-00

Unavailable

42

PLATE

65U-14243-00-00

Unavailable

43

GASKET

64X-14398-00-00

$29.25

44

BOLT, HOLDING

64X-14162-00-00

Unavailable

45

HOSE (L120)

90445-113E8-00

Unavailable

46

CLAMP

90465-10098-00

$2.24

47

PIPE 5

65U-24315-01-00

$11.93

48

CLAMP

90465-10098-00

$2.24

49

PIPE 4

65U-24314-01-00

$5.82

50

CLAMP

90465-10098-00

$2.24

51

PIPE 4

65U-24314-01-00

$5.82

52

CLAMP

90465-10098-00

$2.24
