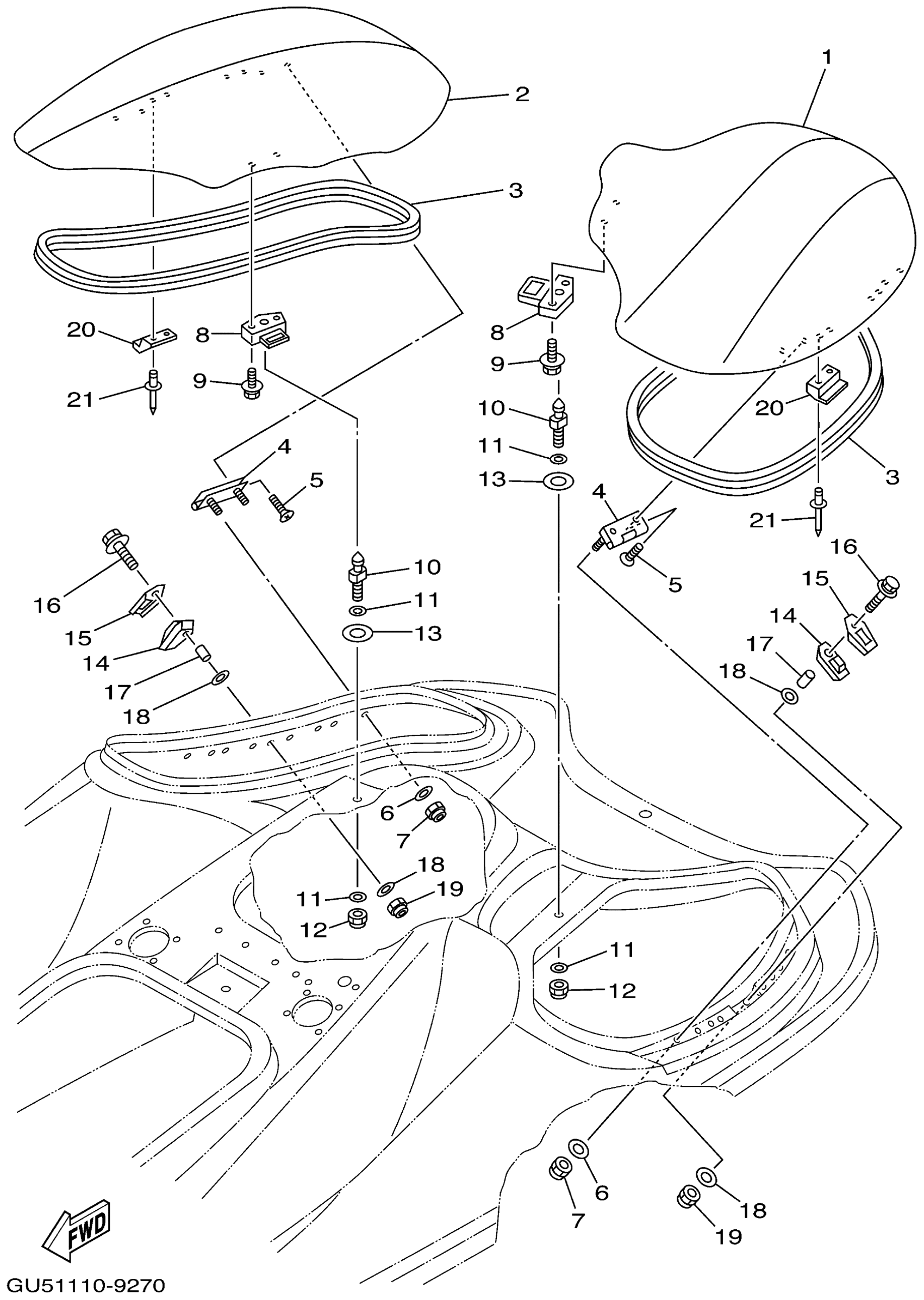

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 STERN HATCH Diagram
#
Description
Price
1
LOCKER STERN LID COMP.
GU5-U518P-10-00
Unavailable
2
LOCKER STERN LID COMP.
GU5-U518P-20-00
Unavailable
3
PACKING 4
GU5-U266C-00-00
Unavailable
4
HINGE, LID
GK5-6517D-00-00
Unavailable
5
. SCREW, FLAT HEAD
98780-05016-00
Unavailable
6
WASHER, PLATE
90201-05800-00
Unavailable
7
NUT, FLANGE
95720-05300-00
Unavailable
8
SEAT LOCK ASSY
GJ3-63850-03-00
Unavailable
9
BOLT, WITH WASHER
90119-06808-00
Unavailable
10
PIN
GH1-U3774-00-00
Unavailable
13
TAPE
GJ3-U5578-00-00
Unavailable
14
SUPPORT, LID
GU5-6517P-00-00
Unavailable
15
PLATE, FIX
GU5-65175-00-00
Unavailable
16
BOLT, WITH WASHER
90119-06914-00
Unavailable
17
COLLAR
90387-06900-00
Unavailable
18
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
19
NUT, SELF-LOCKING
95720-06300-00
Unavailable
20
DAMPER 1
GU5-U515D-00-00
Unavailable
21
RIVET, BLIND
90267-489UE-00
Unavailable
