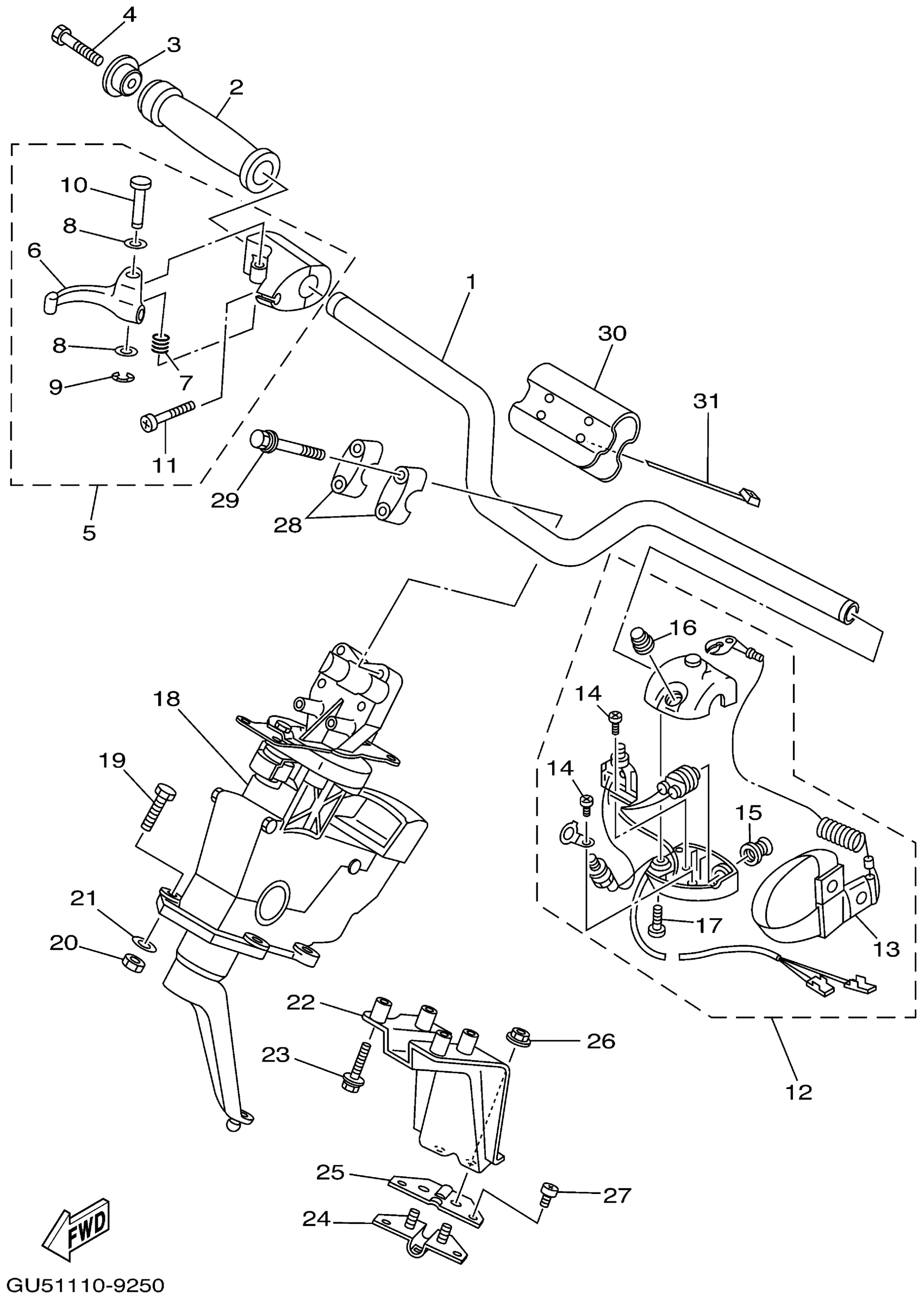

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 STEERING 1 Diagram
#
1
HANDLE
F0D-U1552-00-00
Unavailable
2
GRIP, HANDLE
GP7-U155D-01-00
Unavailable
3
GRIP, END
GP7-U155F-00-00
Unavailable
4
BOLT, HEXAGON SOCKET HEAD
90110-05908-00
Unavailable
5
THROTTLE LEVER ASSY
F0D-67250-10-00
Unavailable
6
LEVER, THROTTLE
F0D-67255-02-00
Unavailable
7
. SPRING
EW2-67256-00-00
Unavailable
8
WASHER, PLAIN (646)
92990-05600-00
$0.80
9
CIRCLIP (EU0)
99080-04600-00
Unavailable
10
. SHAFT
F0D-67257-00-00
Unavailable
11
SCREW, PANHEAD (A93)
98580-05525-00
$2.00
12
SWITCH BOX ASSY
GP7-68310-01-00
Unavailable
13
. LANYARD, STOP SWITCH
EW2-68348-00-00
Unavailable
14
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
15
. STOP BUTTON COMP
FK7-68312-02-00
Unavailable
16
. START BUTTON COMP
FK7-68313-02-00
Unavailable
17
SCREW, PANHEAD (A93)
98580-05525-00
$2.00
18
STEERING MASTER ASSY
GU5-61400-04-00
Unavailable
19
BOLT (62K)
97095-08035-00
Unavailable
20
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
21
WASHER, PLAIN
92990-08200-00
Unavailable
22
BRACKET, STOPPER CABLE
GU5-61467-00-00
Unavailable
23
BOLT, WITH WASHER
90119-06964-00
Unavailable
24
STOPPER, CABLE
GU5-61468-00-00
Unavailable
25
HOLDER, STOPPER
GU5-6146K-00-00
Unavailable
26
NUT, SELF-LOCKING
95720-06300-00
Unavailable
27
. SCREW, PAN HEAD
98580-04006-00
Unavailable
28
HOLDER, HANDLE UPPER
EU0-23814-32-00
Unavailable
29
BOLT, WITH WASHER
90119-089U1-00
Unavailable
30
PAD 1
GU5-6156E-00-00
Unavailable
31
BAND
90601-200U2-00
Unavailable
