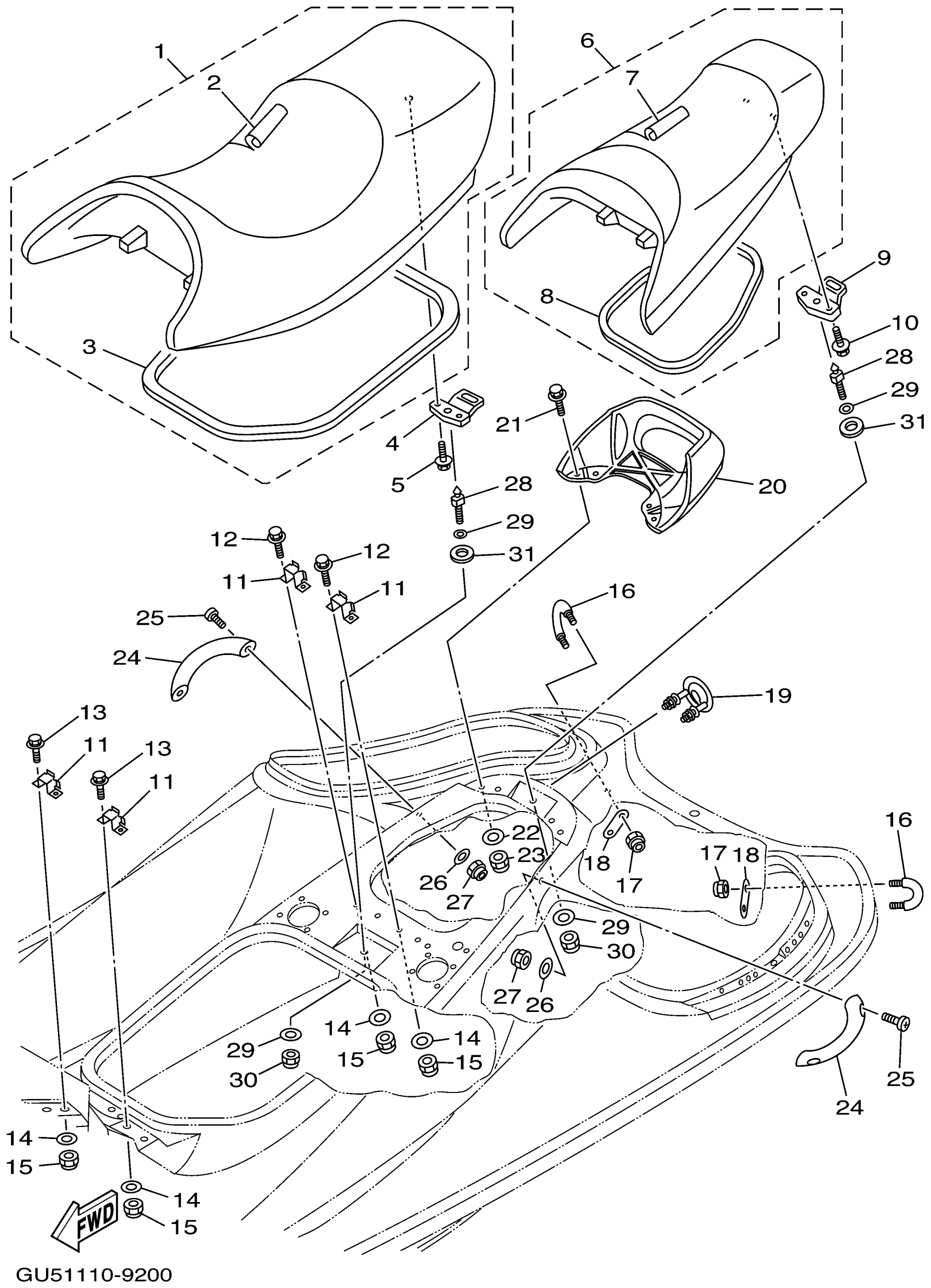

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

GU5-U371A-00-00

Unavailable

2

. COVER, SEAT 1

GU5-U371B-00-00

Unavailable

3

. PACKING

GU5-U2664-00-00

Unavailable

4

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSEMBLY

GU5-U372A-00-00

Unavailable

7

. COVER, SEAT

GU5-U372B-00-00

Unavailable

8

. PACKING 3

GU5-U266B-00-00

Unavailable

9

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STAY, SEAT 2

GU5-6378D-00-00

Unavailable

12

BOLT, WITH WASHER

90119-06900-00

$4.09

13

BOLT, WITH WASHER

90119-06896-00

$5.03

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

15

NUT, SELF-LOCKING

95720-06300-00

$1.82

16

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

17

. NUT, SELF-LOCKING

95720-08300-00

$3.33

18

PLATE A

GP7-U4953-10-00

$3.52

19

SKI EYE

GP1-U1629-00-00

Unavailable

20

GRIP, HAND

F0D-U271B-00-00

Unavailable

21

BOLT, HEX (MIRROR)

90119-06924-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

23

NUT, SELF-LOCKING

95720-06300-00

$1.82

24

GRIP, HAND

F0R-U271B-00-00

$15.07

25

SCREW, BIND(J39)

98980-06030-00

Unavailable

26

WASHER, PLATE

90201-06020-00

Unavailable

27

NUT, SELF-LOCKING

95720-06300-00

$1.82

28

PIN

GH1-U3774-00-00

$19.38

29

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

30

NUT, NYLON (FN8)

95720-10300-00

Unavailable

31

TAPE

GJ3-U5578-00-00

Unavailable
