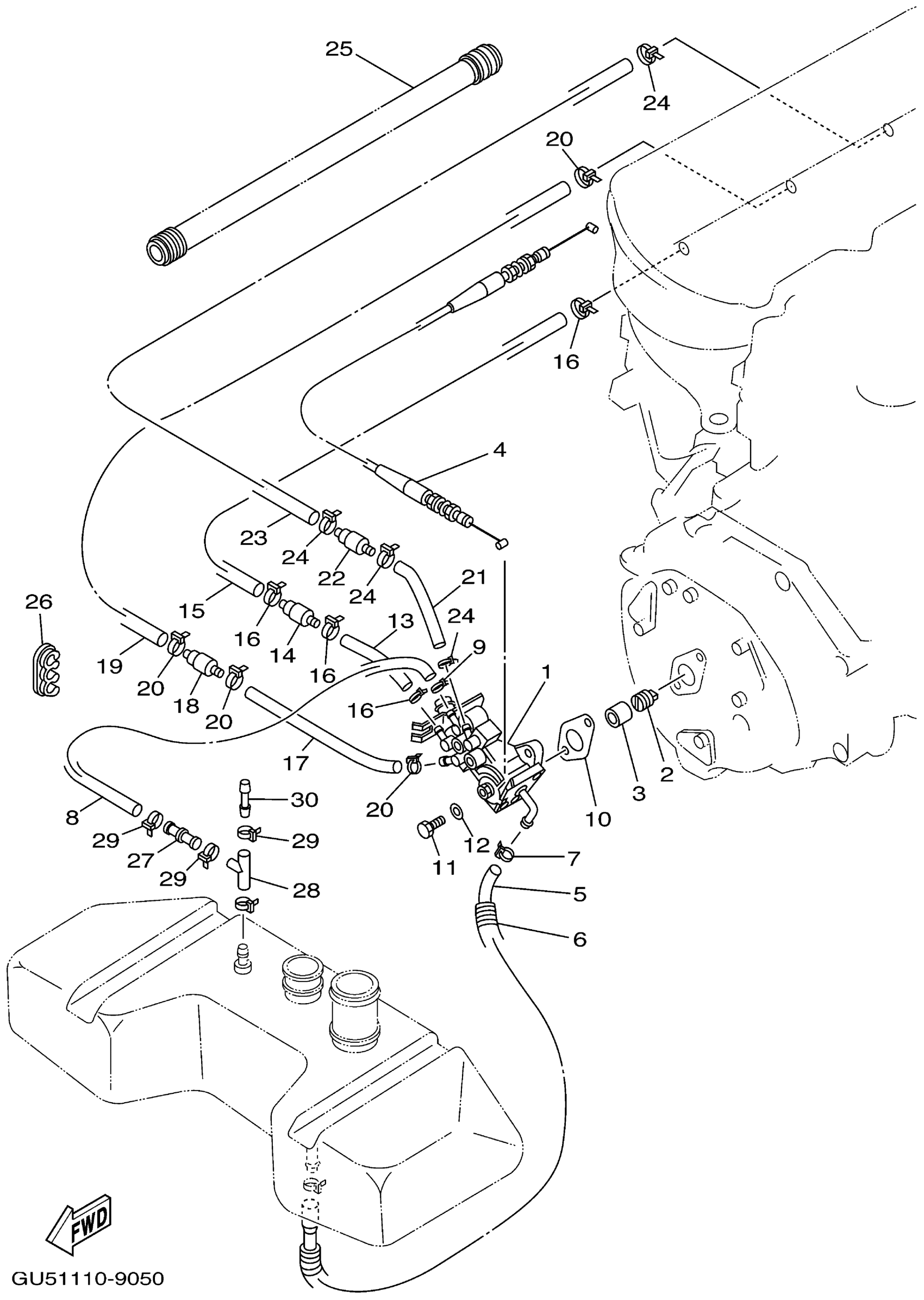

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

66G-13200-01-00

Unavailable

2

JOINT

65U-13132-00-00

$48.47

3

RING, RUBBER

65U-13554-00-00

Unavailable

4

PUMP, CABLE ASSY

66H-26320-00-00

Unavailable

5

PIPE, OIL 1

66G-13416-00-00

Unavailable

6

HOSE

90446-17M72-00

$7.33

7

CLAMP

90465-10098-00

$1.68

8

HOSE (L770)

90445-07006-00

$24.46

9

CLAMP

90465-10098-00

$1.68

10

GASKET, PUMP CASE

63M-13116-00-00

$2.80

11

BOLT(7U8)

97080-06020-00

$3.63

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

HOSE(62T)

90446-07M48-00

Unavailable

14

VALVE, CHECK

6R3-13183-10-00

$39.61

15

HOSE(62T)

90446-07M48-00

Unavailable

16

CLAMP

90465-10098-00

$1.68

17

HOSE(62T)

90446-07M48-00

Unavailable

18

VALVE, CHECK

6R3-13183-10-00

$39.61

19

HOSE(62T)

90446-07M48-00

Unavailable

20

CLAMP

90465-10098-00

$1.68

21

HOSE(62T)

90446-07M48-00

Unavailable

22

VALVE, CHECK

6R3-13183-10-00

$39.61

23

HOSE

90446-07M74-00

Unavailable

24

CLAMP

90465-10098-00

$1.68

25

HOSE

90446-24M83-00

Unavailable

26

CLAMP

90464-07M05-00

$2.80

27

JOINT

63M-13132-00-00

$13.99

28

PIPE, JOINT 3

63M-24378-00-00

$5.91

29

CLAMP

90465-10098-00

$1.68

30

PIPE, JOINT 1

6G8-24376-00-00

$5.91
