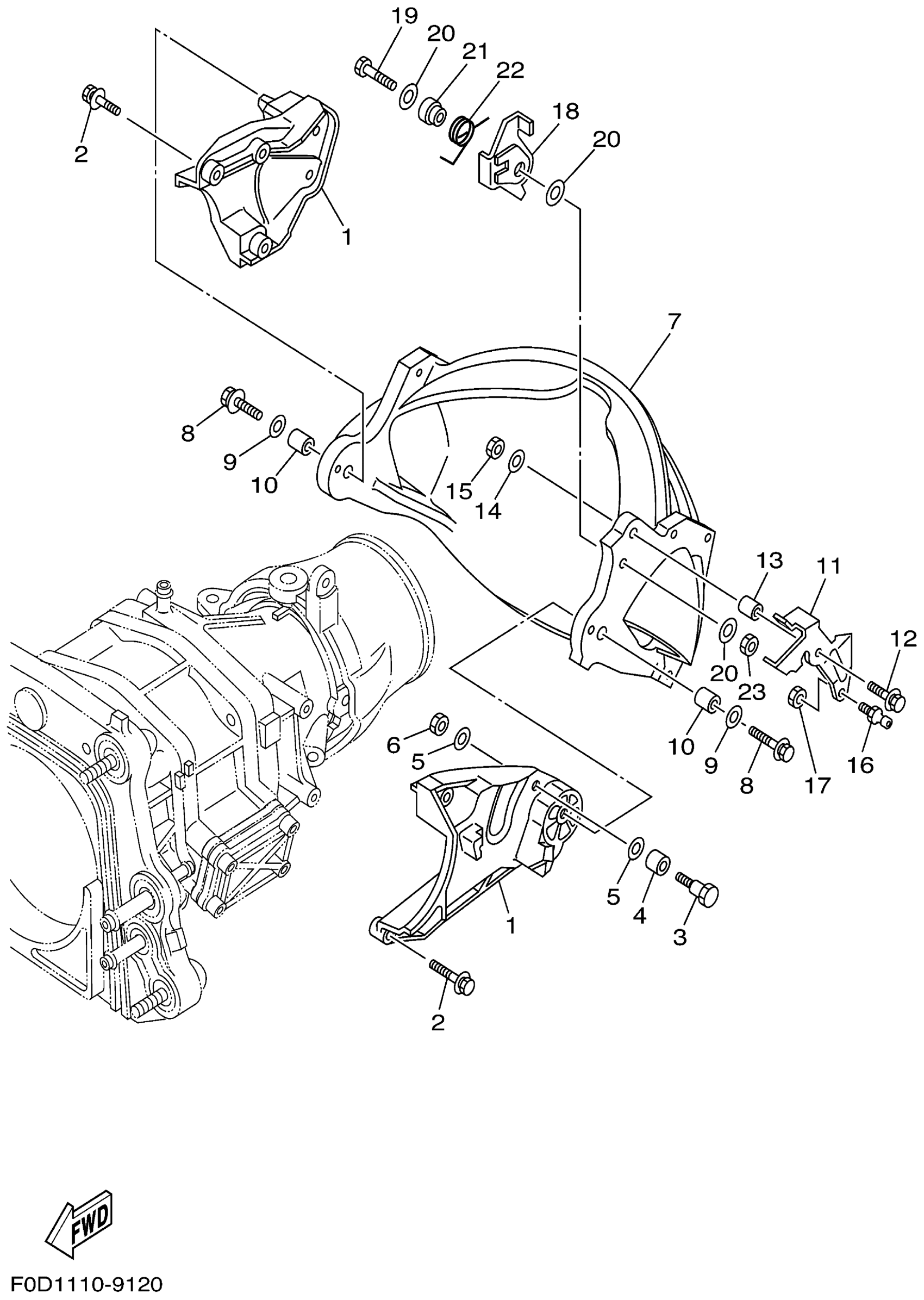

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 JET UNIT 3 Diagram
#
Description
Price
1
BRACKET 1
66V-51341-00-94
Unavailable
2
BOLT, WITH WASHER
90119-06892-00
Unavailable
3
BOLT
90109-08851-00
Unavailable
5
WASHER
9299R-08600-00
Unavailable
6
NUT
9538R-08600-00
Unavailable
7
GATE, REVERSE
99999-03375-00
Unavailable
8
BOLT, WITH WASHER
90119-08841-00
Unavailable
9
WASHER, FENDER MOLD
90201-088T2-00
Unavailable
10
COLLAR
90387-08M30-00
Unavailable
11
LEVER, SHIFT ROD
66V-44121-00-00
Unavailable
12
BOLT,WITH WASHER
90119-06890-00
Unavailable
13
COLLAR
90387-06M74-00
Unavailable
14
WASHER, PLATE
90201-068T1-00
Unavailable
15
NUT
9538R-06600-00
Unavailable
16
STUD, JOINT BALL
66V-U146E-00-00
Unavailable
17
NUT
9538R-06600-00
Unavailable
18
LEVER, SHIFT ROD
66V-44125-00-00
Unavailable
19
BOLT
90101-06833-00
Unavailable
20
WASHER, PLATE
90201-068T1-00
Unavailable
21
COLLAR
90387-06M84-00
Unavailable
22
SPRING, TORSION
90508-14M43-00
Unavailable
23
NUT
9538R-06600-00
Unavailable
